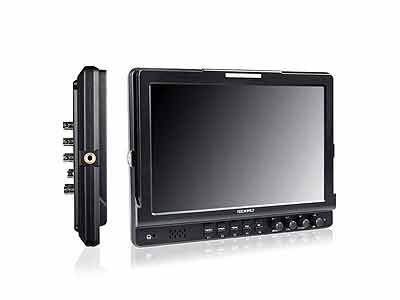

FeelWorld FW1018V1 10.1″ HDMI Camera-Top Monitor with Peaking Focus
The Feelworld FW1018V1 10.1” IPS HD LCD On-Camera monitor is one of the best monitors of its kind. Thanks to FEELWORLD’s good price-quality ratio, many professional photographers and videographers choose FEELWORLD. The monitor also features image measurement functions like Focus Assist, Center Marker, Safe Frame, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel, and Image Freeze. You will be able to analyze the image. These functions are assignable across six function buttons on the front panel.
The large size of 10.1 inches enables you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won’t strain your eyes. With brightness levels of 320 cd/m2, an 800:1 contrast ratio, and 170° vertical and horizontal viewing angles, this monitor is a useful tool when shooting video or stills, providing you with a larger image than your camera’s built-in viewfinder or LCD screen. Feelworld FW1018V1 provides maximum versatility with multiple inputs: HDMI, Ypbpr, video, audio (L/R), and HDMI, Ypbpr, video loop-through output, You can connect it directly to any DSLR or HD video.
1920X1200 IPS FHD Panel
Enjoy Consistent Images from Any Perspective. Feelworld FW1018V1 uses an IPS panel, which provides a wide 170° viewing angle and a brightness output, of up to 320 cd/m2. This means you’ll be able to see accurate, consistent, and bright images from any viewing point.
Professional Peaking Focus Assist
The peak filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It shows a red highlight over parts of the monochrome image in focus.
3-color Tally Light DB-9 input signal
There are front TALLY lights with 3 3-color displays, that are controlled via DB-9 ports on the rear panel.
Flexible Battery System
The monitor is powered from a 4-pin XLR connector, or 12V DC input with the included power adapter (optional), and FW1018V1 has a flexible battery system that supports F970, LP-E6, D28S, Anton, and Sony V mount plates of your choice.
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Display Spec | |
| Model | FW1018V1 |
|---|---|
| Size | 10.1″ IPS |
| Resolution | 1920×1200 pixels |
| Dot Pitch | 0.113(H)×0.113 (W) mm |
| Aspect Ratio | 16:10 |
| Brightness | 320cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
| Input | |
| 1 X HDMI | HDMI |
| 1 X BNC | y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
| Output | |
| 1 X HDMI | HDMI |
| 1 X BNC | y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
| Audio | |
| Audio | Stereo Headphone, Speaker |
| HDMI Support Format | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz) |
| General | |
| Input Voltage | DC7～24V |
| Power Consumption | ≤12W |
| Power Connector | DC/ 4-pin XLR |
| Battery Plate | F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional) |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4″-20 Thread Socket (3 sides left&right&bottom) |
| Unit Size | 258L×192H×39D mm |
| Unit Weight | 810g |
| Color Box Size | 304L*85w*265H(mm) |
| Outer Carton Qty | 5 |
| Outer Carton Size | 477*319*317 (mm) |
| Gross Weight | 16.8kgs |
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- 1× Mini HDMI Cable
- 1× Sunshade
- 1× Hot Shoe Mount
- 1× F970 Battery Plate
- 1× Tally Kit
- 1× U bracket
- 1× Operation Manual
