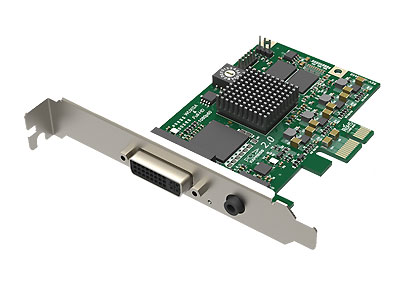

Name: Magewell Pro Capture DVI One-Channel HD Capture Card
SKU: 110300000
Availability: InStock

Description

Magewell Pro Capture DVI Single-Channel DVI, VGA, HDMI Capture Card

The Magewell Pro Capture DVI HD Capture Card (One Channel) is a low-profile PCIe 2.0 x1 card engineered for capturing one channel of video and audio. It accepts a variety of input formats through its DVI interface and included breakout cables, including DVI + analog audio, VGA + analog audio, Component + analog audio, and HDMI with embedded audio. A 3.5mm analog audio input is also available for separate audio capture.

This capture card supports flexible video configurations, offering resolutions up to 2048 x 2048 at frame rates up to 120 fps. HDMI input allows for up to 8 channels of 48 kHz audio. The card also handles a broad range of color sampling, color depth, and color format options. Integrated video processing features include cropping, scaling, de-interlacing, aspect ratio adjustments, color format conversion, frame rate conversion, and on-screen display (OSD) overlay.

The Pro Capture DVI supports installation of multiple cards in a single system and allows unlimited output streams from a single input. Each stream can be customized with independent parameters, enabling efficient and flexible workflows. Additional features include ultra-low latency, accurate audio/video synchronization with timestamping, and front-facing LED indicators for real-time status monitoring.

Compatible with Windows, macOS, and Linux, the card supports multiple APIs for Windows and Linux platforms. SDKs for Windows are also available to simplify software development and integration.

Key Features:

Captures DVI, VGA, Component, or HDMI video with audio
2048 × 2048 max resolution, up to 120 fps
HDMI audio: up to 8 channels at 48 kHz
Cropping, scaling, and video processing built-in
Multiple cards supported in one system
Unlimited output streams with independent settings
Ultra-low latency and A/V sync with timestamping
LED indicators for status monitoring
Supports Windows, macOS, and Linux
Includes Windows SDK and API support

To view more Magewell Products

View more Open Gear Capture Card Products

Related Products:

Specifications

Pro Capture DVI Specifications
Supported OS	Windows Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux (support x86, x64 & ARM architecture) Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above CentOS 6.5/7 (x86 & x64) and above Fedora 25/26/27 (x86 & x64) and above Red hat 6.5 (x86 & x64) and above Other Linux OS with kernel version 2.6.35 and above Mac OS X 10.9/10.10/10.11 and above macOS* 10.12/10.13/10.14/10.15/11/12/13 (It does not support macOS 14 yet.) * More on the way with the upcoming support for macOS 14.x.
Recommended OS (tested)	Windows Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux Ubuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10/18.04 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64) Mac OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3/10.14.3/10.15/11/12/13
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA macOS AVCaptureSession AudioUnit
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software
Input Interfaces	DVI-I DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI2VGA connector) Component (via breakout cable) 3.5mm Phone Jack Line in
Host Interface	PCIe Gen2 x1
Input Features	Auto scan of video input sources when there is no signal input to the currently selected input source Manual selection of video input source Auto selection of linked (embedded) audio input source when the video input source changes Manual selection of audio input source Support for standard crossbar based on video input source selection Support for input video resolutions up to 2048×2160 pixels
VGA & Component Specific Features	12-bit ADC Support for RGB & YCbCr (YUV) color formats Support for ‘Separated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY) Support for DMT, CEA, CVT, GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT officially supported) Auto detection of RGB & YCbCr color formats Auto or manual sampling phase adjustment Auto horizontal alignment Support for customized video timings Support for customized video resolutions for CVT/GTF timings
HDMI Specific Features	225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8/10/12-bit color depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Video Capture Formats	Support for capture image resolutions up to 2048×2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2160) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture DVI” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams	Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Magewell Capture SDK for easy integration, maximum flexibility and performance
Windows Driver Tweaks	All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator	Status LEDs indicate the working state of each channel: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory failed, or FPGA configuration failed Off: firmware or power supply abnormal
Form Factor	Low profile PCIe x1 Add-on Card 92.76mm x 68.88mm (without PCI bracket)
Accessories	DVI to VGA connector DVI-I to HDMI + Component breakout Low Profile bracket
Power Consumption	Max current at 12V: ~ 0.35 A Max current at 3.3V: ~ 0.17 A Max power consumption: ~ 4.68 W
Working Environment	Operating temperature: 0 to 60 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

In The Box

Magewell Pro Capture DVI One-Channel HD Capture Card
DVI to VGA connector
DVI-I to HDMI + Component breakout
Low Profile bracket
