Description

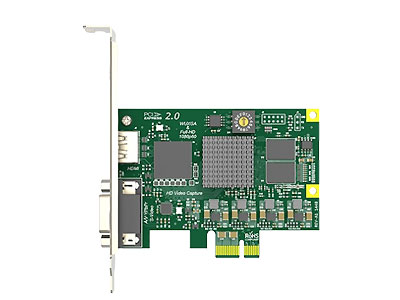

Magewell Pro Capture HDMI Card – Single-Channel HDMI Capture with Advanced Processing
The Magewell Pro Capture HDMI Card is a professional-grade PCIe x1 capture solution designed for high-definition video ingest and processing. Engineered for broadcast, post-production, and live streaming workflows, this low-profile card enables single-channel HDMI video capture along with embedded audio through the onboard HDMI port. It also supports analog sources such as component, composite, and S-Video with audio via the included DB-9 breakout cable.
High-Performance Video and Audio Capture
The card supports resolutions up to 2048 x 2160 and frame rates up to 120 fps, enabling detailed and fluid video recording. It accommodates multiple color sampling formats and supports 10-bit and 12-bit color depth for precise color fidelity. Audio capture includes up to 8 channels at 48 kHz via HDMI or analog input.
Versatile Video Processing Capabilities
Integrated real-time processing features include:
- Cropping and image scaling
- De-interlacing and aspect ratio conversion
- Color space conversion and frame rate adaptation
- On-screen display (OSD) composition
These features reduce CPU load by offloading intensive tasks to the card itself, improving system performance and streamlining your production workflow.
Multi-Stream and Multi-Card Support
The Pro Capture HDMI Card supports multiple cards within a single system, allowing for flexible multi-source capture configurations. It also enables unlimited output streams, each with independently customizable parameters, ideal for simultaneous recording, live streaming, or real-time preview.
Low Latency and System Integration
Designed for demanding professional environments, the card offers ultra-low latency capture, audio/video synchronization, and timestamping to maintain high accuracy throughout the signal chain. LED indicators on the card provide real-time status feedback for easy troubleshooting and monitoring.
Broad Compatibility and Developer Support
Compatible with Windows, Linux, and macOS, the Pro Capture HDMI Card offers wide platform support. It includes multiple APIs for Windows and Linux environments and provides SDKs for streamlined application development and system integration.
To view more Magewell Products
View more Open Gear Capture Card Products
Related Products:
Pro Capture Dual HDMI 2-Channel HD Capture Card
Pro Capture Quad HDMI Four-Channel HD Capture Card
Pro Capture SDI One-Channel HD Capture Card
Pro Capture Dual SDI Two-channel HD Capture Card
Pro Capture Quad SDI Four-Channel HD Capture Card
Specifications
| Pro Capture HDMI Specifications | |
| Supported OS | Windows
Mac
* More on the way with the upcoming support for macOS 14.x. |
| Recommended OS (tested) | Windows
Linux
Mac
|
| Supported APIs | Windows
Linux
macOS
|
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software |

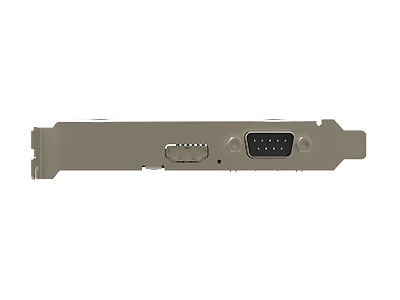

| Input Interfaces | HDMI type A
DB9
|
| Host Interface | PCIe Gen2 x1 |
| Input Features |
|
| Component Specific Features |
|
| HDMI Specific Features |
|
| YC & Composite Specific Features |
|
| Video Capture Formats |
|
| Video Processing Features | Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing
Video aspect ratio conversion
Video color format conversion
Video frame rate conversion
|
| Multiple Cards per System | Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture HDMI” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream |
| Ultra Low Latency Support | Latency of 64 video lines Partial notification mode in SDK |
| Timestamp & A/V Synchronization | Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | ~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | Status LEDs indicate the working state of each channel:
|
| Form Factor | Low profile PCIe x1 Add-on Card 92.76mm x 68.88mm (without PCI bracket) |
| Accessories | DB9 to YC + Composite + Analog Audio + Component breakout Low Profile bracket |
| Power Consumption | Max current at 12V: ~ 0.34 A Max current at 3.3V: ~ 0.16 A Max power consumption: ~ 4.59 W |
| Working Environment | Operating temperature: 0 to 60 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
In The Box
- Magewell Pro Capture HDMI Card (1-Channel)
- DB9 Breakout Cable
- Low Profile Bracket
