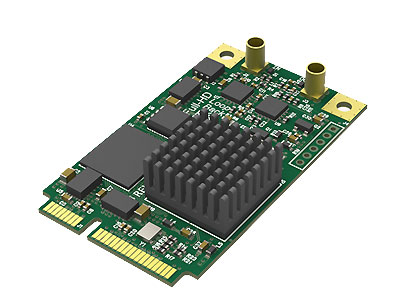

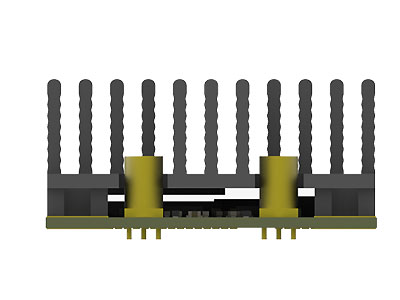

Magewell Pro Capture Mini SDI with loop through One-Channel HD Capture Card

• Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
• Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above
• CentOS 6.5/7 (x86 & x64) and above
• Fedora 25/26/27 (x86 & x64) and above
• Red hat 6.5 (x86 & x64) and above
• Other Linux OS with kernel version 2.6.35 and above

Mac

• OS X 10.9/10.10/10.11 and above
• macOS* 10.12/10.13/10.14/10.15/11/12/13 (It does not support macOS 14 yet.)

* More on the way with the upcoming support for macOS 14.x.

• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)

Linux

• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10/18.04 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)

Mac

• OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
• macOS 10.12/10.13.2/10.13.3/10.14.3/10.15/11/12/13

• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI

Linux

• V4L2
• ALSA

macOS

• AVCaptureSession
• AudioUnit

• VLC
• VirtualDub
• OBS
• XSplit
• vMix
• VidBlaster
• Wirecast
• Microsoft Media Encoder
• Adobe Flash Media Encoder
• Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software

• SD/HD/3G SDI

• SD/HD/3G SDI

• up to 330m for SD-SDI signals
• up to 190m for HD-SDI signals
• up to 150m for 3G-SDI signals

Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
Support for 2K (2048×1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec)
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:

• YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
• YCbCr 4:4:4 10-bit: captured as 4:2:2
• RGB 4:4:4: R/B sub-sampled

• Support for capture image resolutions up to 2048×2160 pixels
• Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
• Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
• Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
• Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
• Support for 4:4:4 10-bit capture formats: V410, Y410
• More capture formats are supported via Magewell Capture SDK

• Weave
• Blend top & bottom field
• Top field only
• Bottom field only

Video aspect ratio conversion

• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion

• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range

Video frame rate conversion
Video OSD composition

• Support for PNG OSD image (up to 2048×2160)
• Support for dynamic loading of RGBA OSD image via SDK

• Unlimited capture streams for any one input channel
• Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

• Latency of 64 video lines
• Partial notification mode in SDK

• Hardware based 100ns high resolution clock
• Audio frames (192 audio samples) & video frames are stamped with hardware clock
• Hardware clock can be synchronized across cards (via SDK)

• ~400MB/s per channel DMA bandwidth in PCIe 2.0 system
• ~200MB/s per channel DMA bandwidth in PCIe 1.0 system
• Support for auto detection of Intel tiled GPU surface
• Support for DirectGMA for AMD video adapter chipsets
• Support for GPUDirect for Nvidia video adapter chipsets

• Multiple cards in one system can be upgraded simultaneously
• Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
• Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.

• Pulsing slowly: input signal unlocked
• On: input signal locked
• Double blinks: memory failed, or FPGA configuration failed
• Off: firmware or power supply abnormal

• Mini PCIe Add-on Card
• 30mm x 51mm

• Max current at 3.3V: ~ 1.1 A
• Max power consumption: ~ 3.62 W

Low Power Consumption Firmware

• Max current at 3.3V: ~ 0.95 A
• Max power consumption: ~ 3.19 W

• Operating temperature: 0 to 60 deg C
• Storage temperature: –20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
