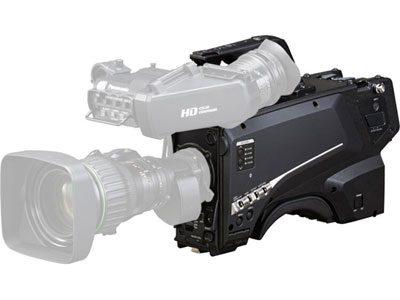

Panasonic AK-HC3900 4K Camera-HDR Studio Camera
Panasonic AK-HC3900 camera is designed for broadcasting, event and is equipped with a large sensor for high sensitivity and video quality.
| Weight | N/A |
|---|---|
| Choose Product Variant |
AK-HC3900GJ ,AK-HC3900GSJ |
Description
Click to rate this post!
[Total: 1 Average: 5]
Panasonic AK-HC3900 4K Camera
Large 11.14-megapixel image sensor for high sensitivity, low noise video
Panasonic AK-HC3900 4K full HD Camera system also features an updated CCU and ROP in pursuit of total system performance. High-operability systems for situations ranging from studio production to live events and sports can be constructed at low cost. 4K can also be supported with an optional upgrade. A range of options for expansion are available, enabling selection appropriate to the application.
Exceptional Flexibility
Panasonic AK-HC3900 Camera is equipped with a large 4K sensor for high sensitivity and video quality. Designed to support multiple formats, including 1080/59.94p and 720/59.94p, the AK-HC3900 outputs HDR and SDR simultaneously for a variety of HD production purposes.
Entry-Level 4K Video System
Upgrade to native 4K with a horizontal resolution of 2000 TV lines with an optional 4K accessory on the Camera Control Unit (CCU). Plus, this camera system supports IP connection between the CCU and the Remote Operation Panel (ROP) for a seamless long-distance optical fiber transmission studio camera system at a low cost. Support for Power over Ethernet (PoE) contributes to a flexible camera system that can capture studio as well as sports and live events which require high operability.
An optional 4K/12G-SDI Interface Kit AK-HUC01 (sold separately) is required.
- Includes a large 4K-CMOS sensor, and achieves a high sensitivity of F10 (2000 lx) and low noise with an S/N ratio of 62 dB (when using the High Sense Mode).
- Includes CAC (Chromatic Aberration Compensation), skew reduction, and DRS (Dynamic Range Stretcher) functions.
- Includes Digital Extender function (2x).
- Supports HDR/BT.709 in HD mode as standard and HDR/BT.2020 in 4K mode.*When 4K upgrade kit is installed on AK-HC3900G and the AK-HCU250
- 4K upgrade enables 4K video to be output with a horizontal resolution of 2,000 TV lines 4K upgrade kit is installed on AK-HC3900G and the AK-HCU250
Features:
- High-Quality Full-HD Pictures
- Large 11.14-megapixel Image Sensor
- Multi-format Support
- B4 Mount
- Built-in Optical Filter
- HDR (High Dynamic Range)
Various Functions and Versatile Interfaces
- High-speed Scanning for Low-skew Shooting
- Digital Extender (2x)
- Chromatic Aberration Compensation (CAC)
- Focus Assist Functions
- Flash Band Correction
- Diverse Color Correction Functions
- Skin Tone Detail Correction
- Shockless Gain
- Camera Standalone Output Formats
- Long-distance Transmission
- Detailed Functions Optimized for Operability
- Video Transmission (TRUNK) Functions
4K Upgrade Support
- 4K Upgrade Support
- ITU-R BT.2020
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| General | ||
|---|---|---|
| Power Supply | DC 12 V (when using an external power supply) DC 190 V (when AK-HCU250PJ/HCU250PSJ/HCU250EJ/ HCU250ESJ is connected) |
|
| Power Consumption | 82 W (maximum, when connecting to an external 12 V and including supply to an externally connected devices) 92 W (maximum, when AK-HCU250PJ/HCU250PSJ/HCU250EJ/ HCU250ESJ is conncected and including supply to an externally connected devices) |
|
| Operating Temperature | –10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below) |
|
| Storage Temperature | −20 °C to 60 °C (−4 °F to 140 °F) | |
| Operating Humidity | 85% or less (relative humidity) | |
| Weight | Approx. 4.0 kg (8.80 lbs.) (body only, excluding the accessories) | |
| Dimensions (W x H x D) | Body only 151 mm x 267 mm x 369 mm (5-31/32 inches x 10-17/32 inches x 14-17/32 inches) (excluding protrusions) |
|
| Camera Unit | ||
| Pickup Device | 11.14 million pixels, MOS Sensor | |
| Optical Filter | ND: Clear, 1/4, 1/16, 1/64 | |
| Lens Mount | 2/3-type bayonet | |
| Sensitivity | wo shooting modes [HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz) [NORMAL]: F6 (59.94 Hz)/F7 (50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9% |
|
| Horizontal Modulation | 50% or above (27.5 MHz) | |
| S/N | 62 dB or above | |
| Horizontal Resolution | HD: 1000 TV lines or above (center) 4K: 2000 TV lines or above (center, when using AK-HUC01) |
|
| Gain Switching | [NORMAL] | −6, −3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 |
| [HIGH SENS] | −6, −3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 | |
| Shutter Speed | [59.94i]/[59.94p] mode | 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| [29.97p] mode | 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| [23.98p] mode | 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| [50i]/[50p] mode | 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| [25p] mode | 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| System Format | 1920 x 1080/59.94p/50p/29.97p/25p/23.98p
|
|
| Video Input/Output | ||
| HD-SDI1 terminal | BNC x 1 | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω |
| HD-SDI2 terminal | BNC x 1 | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω |
| AUX terminal | BNC x 1 | Functions as |
| Audio Input/Output | ||
| MIC 2 terminal | XLR x 1, 3-pin (female type) | |
| MIC terminal (front) | XLR x 1, 3-pin (female type) | |
| Intercom | ||
| INTERCOM1 terminal | XLR x 1, 5-pin, female type | |
| Other Input/Output | ||
| OPT FIBER terminal | Optical composite connector x 1 | |
| LENS terminal | 12-pin x 1 | |
| VF terminal | 20-pin x 1 | |
| VF terminal (rear) | 29-pin x 1 | |
| DC IN terminal | XLR x 1, 4-pin, DC 12 V | |
| LAN terminal | RJ-45 x 1 | |
