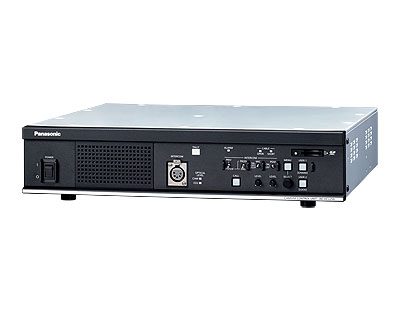

Panasonic AK-HCU250EJ/AK-HCU250ESJ Camera Control Unit (CCU) for Studio Cameras
Panasonic AK-HCU250 CCU is a low-cost construction of long-distance optical transmission camera systems with high image quality.
- Long-distance transmission between camera and CCU is possible.
- The compact, lightweight unit measures 2U in height and is rack-mountable.
- 12G-SDI and 3G-SDI Quad Link output supported with 4K upgrade.
- RET input (two SDI channels) supported.
- One intercom line and two audio lines.
- 3G trunk and 3G prompter circuit between camera and CCU.
To view more Panasonic Products
Related Products:
Panasonic AK-UCU600 Camera Control Unit (CCU)
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Specifications
| General | ||
|---|---|---|
| Power Supply | AK-HCU250PJ/HCU250PSJ : 100 V – 120 V AC, 50 Hz/60 Hz AK-HCU250EJ/HCU250ESJ : 100 V – 240 V AC, 50 Hz/60 Hz AK-HCU250PTJ : 100 V – 120 V AC, 50 Hz/60 Hz |
|
| Current Consumption | 3 A | |
| Capacity for Supplying Power to a Camera | DC 190 V , 0.6 A (AK-HCU250PJ/250PSJ/250EJ/250ESJ) | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Humidity | 10% to 90% (no condensation) | |
| Storage Temperature | −20 °C to 60 °C (−4 °F to 140 °F) | |
| Weight | Approx. 7.4 kg (16.28 lb) (main unit only) | |
| Dimensions (W x H x D) | 424 mm x 88 mm x 401 mm (16-5/8 inches x 3-7/16 inches x 15-13/16 inches) (excluding protrusions) |
|
| Basic Items | ||
| System Format | 1920×1080/59.94p/50p/29.97p/25p/23.98p when using AK-HUC01 3840 x 2160/59.94p/50p/29.97p/25p/23.98p |
|
| Image Input/Output Sections | ||
| BNC x 3 | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω | |
| BNC x 1 | 1.5G-SDI: 0.8 V [p-p], 75 Ω | |
| BNC x 2 | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω | |
| BNC x 1 (internal FS) | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω | |
| BNC x 1 | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω | |
| BNC x 1 | 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω | |
| Terminal | BNC x 2 (internal FS) | 3-value sync/1 V VBS signal [p-p], 75 Ω |
| BNC x 1 | VBS signal: 1 V [p-p], 75 Ω | |
| BNC x 1 | VBS signal: 1 V [p-p], 75 Ω | |
| Audio Output Sections | ||
| XLR x 2, 3-pin male, 0 dBm/600 Ω | ||
| Intercom Section | ||
| XLR x 1, 5-pin female | ||
| Other Input/Output Sections | ||
| Optical fiber multi connector x 1 AK-HCU250PJ/HCU250EJ: Tajimi Electronics Co., Ltd., AK-HCU250PSJ/HCU250ESJ: LEMO AK-HCU250PTJ:ST connector x2 |
||
| 10 pins x 2 | ||
| 25 pins x 1 | ||
| RJ45 x 1 | ||
