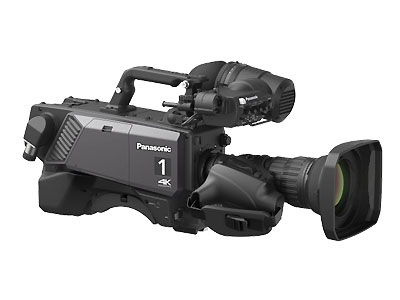

Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera

General:

• Power Supply: DC 12 V (when using an external power supply)
  AC 240 V, 50 Hz/60 Hz(AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 in connected)
• Power Consumption: 119 W (maximum, when connecting to external 12V and including supply to externally connected devices)
  360 W (maximum, when AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 is connected and including supply to an externally connected device)
• Operating Temperature: –10 °C to 45 °C (14 °F to 113 °F)
  (Preheating is required under a temperature of 0°C (32 °F) or below)
• Operating Humidity: 85% or less (relative humidity)
• Storage Temperature: −20 °C to 60 °C (−4 °F to 140 °F)
• Weight: Approx. 4.55 kg (9.90 lbs.) (body only, excluding the accessories)
• Dimensions (W x H x D): 157 mm x 267 mm x 371.5 mm
  (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions)

Camera Unit:

• Pickup Device: 19.29 million pixels, MOS sensor
• Optical Filter: ND: CLEAR, 1/2, 1/4, 1/16, 1/64
  FX: CLEAR, CLEAR (Option*), CROSS, Diffusion, CAP
  *Option: HD Low Pass filter
• Lens Mount: 2/3-type bayonet
• Sensitivity: [LOW LIGHT]: F10(59.94 Hz)/F11(50 Hz), [NORMAL]: F6(59.94 Hz)/F7(50 Hz)
  2000 lx, 3200 K, when white reflectivity is 89.9%
• Horizontal Resolution: 4K: 2000 TV lines or above (center)
  HD: 1000 TV lines or above (center)
• S/N: 62 dB or above
• Gain Switching: -6, -3, 0, 3, 6, 9, 12, 15, 18
• Shutter Speed
  [59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  [50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  [29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  [25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  [23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
• System Format: 3840×2160/59.94p/50p/29.97p/25p/23.98p
  1920×1080/59.94p/50p/29.97p/25p/23.98p

Video Input/Output:

• Terminal: BNC x 1
  12G/3G/1.5G-SDI: 0.8 V [p‑p] , 75 Ω
• Terminal: BNC x 1
  12G/3G/1.5G-SDI: 0.8 V [p‑p] , 75 Ω
• Terminal: BNC x 1
  3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
• Terminal: BNC x 1
  : Tri-level SYNC or BB (black burst)
  : black signal without burst

Audio Input/Output:

• Terminal: XLR x 1, 3-pin female type
  //<+48V> switchable
  For , / switchable
  : 0 dBu, 4 dBu menu selection available
  : −60 dBu, −40 dBu, or −20 dBu menu can be selected
• Terminal: XLR x 1, 3-pin female type
  //<+48V> switchable
  : 0 dBu, 4 dBu menu selection available
  : −60 dBu, −40 dBu, or −20 dBu menu can be selected
• Terminal (front): XLR×1, 3-pin female type
  Switchable with terminal

Intercom:

• Terminal: XLR x 1, 5-pin, female type
• Terminal: XLR x 1, 5-pin, female type
• Terminal: Stereo mini jack x 1, 3-pin

Other Input/Output:

• Terminal: Optical composite connector x 1
• Terminal: SFP28 x 1
• Terminal: SFP28 x 1
• Terminal: 12-pin x 1
• Terminal: 20-pin x 1
• Terminal(rear): 29-pin x 1
• Terminal: XLR x 1, 4-pin, DC12 V
• Terminal: 4-pin x 1
• Terminal: 6-pin x 1
• Terminal: 20-pin x 1, DC12 V, 0.5 A
• Terminal: 10-pin x 1
• Terminal: 2-pin x 1
• Terminal: RJ-45 x 1
• Terminal: Type C connector (USB Power Delivery)
• Build-up terminal: 20-pin x 1
