Panasonic PT-EX800ZE LCD Projector
Description
Click to rate this post!
[Total: 0 Average: 0]

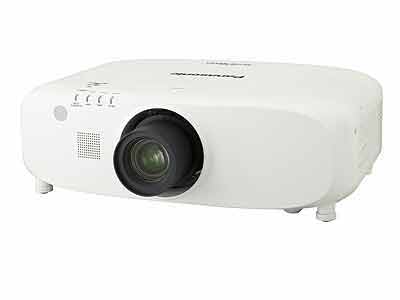

Panasonic PT-EX800ZE XGA 7,500 Lumens LCD Projector
Panasonic PT-EX800ZE LCD projector is a class-leading 7,500 lm of brightness with a contrast ratio of 5,000:1. The iris automatically adjusts to suit ambient lighting conditions. This projector is High Brightness, Low TCO, and Flexible Installation for Versatile Use.
Features:
- LCD, 7500 lumens, XGA
- Daylight View Basic function ensures clear and vivid image quality in bright environments
- Integrated DIGITAL LINK and Displayport connection
- Eco filter enables up to 15000 hours of air filter replacement cycle
The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms
Panasonic‘s Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.
DICOM Simulation Mode
This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.
Built-in 10-W Speaker
Panasonic PT-EW730ZE projectors feature a high-output 10-watt monaural speaker that produces a large sound volume without requiring external speakers.
Other Features:
- Presentation support/control tools such as Presentation Timer, Freeze Function, and Digital Zoom
- A projector identification system for remote control allocation of up to 64 projectors
- Direct Power Off right after use
- Built-in closed caption decoder (NTSC and 480i (YCBCR) only)
- Lower Maintenance and Running Costs
- Colour Adjustment Function
- Dust-Resistant Cabinet Design and an Eco Filter that Needs No Replacement for 15,000 Hours
- Lamp Replacement Cycle of up to 4,500hours
- Intelligent Lamp Control System Reduces Power Consumption
- Eco Management Functions
- Easy Lamp and Air Filter Replacement
- Quiet 29-dB Design Does Not Interrupt Meetings or Classes
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Feature | Specification |
|---|---|
| Brightness | 7,500 lumens (LAMP POWER: AUTO/NORMAL, Dynamic mode, Standard lens) |
| Resolution | 1,024 x 768 pixels |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 590 W (0.3 W with STANDBY MODE set to ECO, 10 W with STANDBY MODE set to NORMAL,37 W within STANDBY MODE of Audio Setting set to on.) |
| Optical System | Dichroic mirror separation/prism synthesis system |
| LCD Panel | Panel Size | 19.0 mm (0.75 inches) diagonal (4:3 aspect ratio) |
| LCD Panel | Display Method | Transparent LCD panel (x 3, R/G/B) |
| LCD Panel | Pixels | 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels |
| LCD Panel | Pixel Configuration | Stripe |
| Lens | Powered zoom/focus lens (1.7- 2.8:1), F 1.7- 2.3, f 26.9-45.4 mm Optional powered zoom/focus lenses and fixed-focus lens |
| Lamp | 400 W UHM lamp |
| Screen Size | 1.02 -10.16 m (40- 400 inches), 4:3 aspect ratio |
| Center-to-Corner Uniformity | 90% |
| Contrast | 5,000:1 (full on / full off, LAMP POWER: AUTO, Iris on, Dynamic mode) |
| Scanning Frequency | Display Port/HDMI/DVI-D | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25 MHz-162 MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant,compatible with HDCP) |
| Scanning Frequency | RGB | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz |
| Scanning Frequency | YPBPR (YCBCR) | 480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz |
| Scanning Frequency | Video/Y/C | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Optical Axis Shift | Vertical: ±50% (powered), horizontal: ±10% (powered) NOTE: Optical axis shift function cannot be operated when used with the ET-ELW21. |
| Keystone Correction Range | Vertical: ±40° (with vertical correction only) Horizontal: ±30° (with horizontal correction only) |
| Installation | Ceiling/floor, front/rear |
| Built-in Speaker | Size | 3.7 cm (1-15/32 inches) (round) x 1 |
| Built-in Speaker | Output Power | 10 W |
| Terminals | Display Port In | DP-20P x 1,HDCP compatible 480p(525p), 576p(625p), 720(750)/60p, 720(750)50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p VGA (640 x 400) – WUXGA (1,920 x 1,200) Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz,32 kHz) |
| Terminals | HDMI In | HDMI 19-pin x 1, Deep Color, HDCP compatible 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p VGA (640 x 400) – WUXGA (1,920 x 1,200) Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz,32 kHz) |
| Terminals | DVI-D In | DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP, compatible with single link only 480i(525i), 576i(625i)3, 480p(525p), 576p(625p), 720(750)/60p, 720(750)50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p,1080(1125)/50p VGA (640 x 400) – WUXGA (1,920 x 1,200) |
| Terminals | RGB 1 In | D-sub HD 15-pin (female) x 1 |
| Terminals | RGB 1 In | R, G, B | R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative) |
| Terminals | RGB 1 In | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals | RGB 2 In | BNC x 5 (RGB/YPBPR/YCBCR x 1) |
| Terminals | RGB 2 In | R, G, B | R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative) NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals | RGB 2 In | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms |
| Terminals | RGB 2 In | S-Video In | Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms |
| Terminals | Video In | PIN Jack x 1, 1.0 Vp-p, 75 ohms |
| Terminals | Monitor Out | D-sub HD 15-pin (female) x 1 |
| Terminals | Monitor Out | R, G, B | R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative) |
| Terminals | Monitor Out | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms |
| Terminals | Audio In | M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more PIN Jack (L, R) x 2, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals | Variable Audio Out | M3 (L, R) x 1 (monitor out: 0 – 2.0 Vrms, variable) |
| Terminals | Serial In | D-sub 9-pin (female) x 1, for external control (RS-232C compliant) |
| Terminals | Remoter 1 In | M3 jack x 1 for wired remote control |
| Terminals | Remoter 2 In | D-sub 9-pin (female) x 1, for external control (parallel) |
| Terminals | LAN/DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compliant with PJLink (class 1), Deep Color, compatible with HDCP, 480i(525i), 576i(625i)3, 480p(525p), 576p(625p), 720(750)/60p, 720(750)50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p,1080(1125)/50p VGA (640 x 400) – WUXGA (1,920 x 1,200), dot clock: 25 MHz -162 MHz NOTE: Compatible with non-interlaced signals only. |
| Power Cord Length | 3.0 m (9 ft 10 in) |
| Cabinet Materials | Molded plastic |
| Dimensions (W x H x D) | PT-EX800Z 530 x 177 x 445 mm (20-7/8 x 6-31/32 x 17-17/32 inches) (with supplied lens) PT-EX800ZL 530 x 177 x 385 mm (20-7/8 x 6-31/32 x 15-5/32 inches) (without lens) |
| Weight | PT-EX800Z Approx. 10.6 kg (23.4 lbs) (with supplied lens) PT-EX800ZL Approx. 9.8 kg (21.6 lbs) (without lens) |
| Operating Noise | 37 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER:ECO 1), 29 dB (LAMP POWER: ECO 2) |
| Operating Temperature | 0-45 °C (32-113 °F) |
| Operating Humidity | 10%-80% (no condensation) |
| Technology | LCD |
