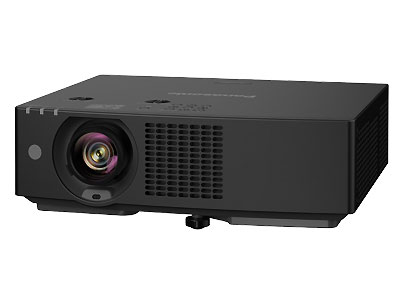

Panasonic PT-VMZ72 7300-Lumen 1920 x 1200 Resolution and LCD Laser Projector
Product Highlights:
- Clear Projection Tailored to Your Space
- Stress-Free Installation Flexibility
- Efficient and Eco-Conscious Design
Description
Panasonic PT-VMZ72 7300-Lumen WUXGA Laser LCD Portable Projector
Experience precise and vivid projection with the Panasonic PT-VMZ72 7300-Lumen WUXGA Projector. Designed for flexibility in bright environments, this compact projector uses a durable laser light source and 3LCD technology to deliver vibrant, high-resolution images. Its 1.6x optical zoom, wide lens shift, and advanced geometric correction—including corner and curved screen adjustment—allow seamless installation in diverse settings. Daylight View mode enhances visibility in well-lit rooms, making it ideal for corporate meetings, classrooms, training simulations, and other lights-on applications.
High 5,000,000:1 Dynamic Contrast
Input signals are analysed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 5,000,000:11 contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for a better sense of depth and definition.
Optimized Visuals for Bright Spaces
Daylight View Basic uses a sensor to measure ambient light levels in your room and adjusts sharpness, halftone color, contrast, and brightness to optimize image visibility regardless of room illumination. The result is a clearer, more detailed image, even in challenging conditions.
Smooth, Crisp Details at WUXGA
WUXGA (1920 x 1200) LCD panels improve detail definition for a more comfortable and insightful experience. Text edges are smooth, sharp, and easy to read, even for those seated furthest from the screen.
Digital Zoom Extender and Digital Image Shift
Digital Zoom Extender increases the projector’s throw distance beyond its optical zoom range, making it possible to reuse your existing ceiling mount or install the projector farther from the screen, saving construction work. Digital Image Shift allows the image to move up to 10% in any direction for off-axis or high-ceiling installations.
Upgraded Screen Adjustment with New GUI
The PT-VMZ72 introduces an upgraded Screen Adjustment suite with an intuitive new Graphical User Interface (GUI). Designed to simplify setup in various spaces—including curved screens—the GUI streamlines adjustments via remote control without the need for a connected PC, making installation faster, easier, and more flexible than ever.
To view more Panasonic Products
View more LCD and Laser Projectors
Projector Types
Features
Special Features:
- Shutter function and Auto Image Rotation function
- Audible remote-control feedback for projector on/off
- Security slot and customizable startup logo
- USB port for DC 5 V/2 A power supply, data transfer, firmware updates, and optional wireless module
- Lens Block detection reduces light output when lens is obstructed to prevent damage
- Compatible with the Multiple PJ Firmware Batch Update Tool
- Presentation Support System
- Multi-Screen Support System
- Multi-Unit Brightness and Color Control
- DICOM Simulation Mode
- ECO Management System
Specifications
| PT-VMZ72 Portable LCD Projector Specifications | |
| Projector type | LCD projectors |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device -> Panel size | 16.3 mm (0.64 inch) (16:10 aspect ratio) |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200) pixels x 3 |
| Light source | Laser diodes |
| Light output | VMZ72 : 7,200 lm |
| Light output (ANSI) | VMZ72 : 7,200 lm (ANSI) |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 % -> QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 5,000,000:1 (Full On/Full O) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 85% |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F=1.58-1.91, f=15.30‒24.60 mm |
| Digital Zoom Extender | Throw Ratio 1.09–2.21:1(Corresponding value. When used together with optical zoom.) |
| Lens shift -> Vertical(from center of screen) | 44% |
| Lens shift -> Horizontal(from center of screen) | ±20 % |
| Keystone correction range | Vertical ±25 %, Horizontal ±35 % |
| Terminals -> HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), CEC supported |
| Terminals -> COMPUTER IN（D-SUB 15pin） | D-sub 15-pin (female) (RGB/YPBPR/YCBCR) |
| Terminals -> AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals -> AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals -> SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals -> DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2],HDCP, Deep Color, 4K/30p signal input) |
| Terminals -> LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink[Class 2] |
| Terminals -> USB TYPE A | USB Connector Type A x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A) |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100–240 V, 50/60 Hz |
| Maximum power consumption | 400 W (4.2 A ) (405 VA) |
| (Power consumption is 385 W at 200–240 V) | |
| On-mode power consumption(Operating mode) -> Normal | 365 W (100–240 V), 350 W (200–240 V) [NORMAL] |
| On-mode power consumption(Operating mode) -> Eco | 260 W (100–240 V), 250 W (200–240 V) [ECO] |
| On-mode power consumption(Operating mode) -> Quiet | 305 W (100–240 V), 295 W (200–240 V) [QUIET1] |
| 255 W (100–240 V), 245 W (200–240 V) [QUIET2] | |
| Built-in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter | Included |
| Estimated filter maintenance cycle | Approx. 20,000 hours |
| Operation noise -> Normal | 39 dB [NORMAL] |
| Operation noise -> Eco | 39 dB [ECO] |
| Operation noise -> Quiet | 34 dB [QUIET1] |
| 29 dB [QUIET2] | |
| Dimensions (W x H x D) | 399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) |
| 399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position) | |
| Weight | Approx. 7.4 kg (16.3 lbs) |
| Operating environment -> Operating temperature | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Presenter Light Software for Windows, Wireless Projector App for iOS/Android |
