Portkeys PT6 5.2-inch On-camera Touchscreen Monitor
The Portkeys PT6 is a professional entry-level 5.2-inch on-camera monitor with 600nits of brightness, 100% coverage of DCI-P3 color space, HDMI input and output ports, and 3D-LUT output capabilities.
The Portkeys PT6 is a lightweight 5.2-inch on-camera touchscreen monitor with an impressive budget/feature ratio, all in a very compact form factor.
The housing of the PT6 is made of robust polycarbonate and ABS that helps keeps the weight down to only 170g/6oz (without battery).
This monitor has a maximum brightness of 600nits, perfect for shooting indoors or in a controlled studio environment. The 10-bit (8+2 FRC) panel covers 100% of the DCI-P3 color space, which means no color banding, accuracy, and true-to-life color reproduction. This 5.2-inch monitor has a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1500:1 contrast ratio.
On the left side of the monitor, you’ll find an HDMI input port that can take resolutions up to 4K DCI at 24fps or 4K UHD at up to 30fps. On the right end side, an HDMI output port with a maximum resolution of 1080p60 allows you to output a clean video feed. Furthermore, the HDMI output can also display a video signal with a 3D LUT, anamorphic de-squeeze, and image adjustments such as contrast, brightness, and tone modifications.
But don’t let the compact form factor of the PT6 fool you, as it is packed with many professional monitoring tools, including:
- Exposure tools: Luma and RGB Waveform, Histogram, and Zebra to accurately expose the image.
- 3D LUT monitoring and 3D LUT HDMI output. You can load custom LUTs via the USB port on the left side of the monitor.
- False Color and ARRI False Color mode.
- A new Peaking algorithm with a Peaking Frame feature so your camera’s UI can stay clear.
- Customized image crop to zoom in anywhere in the image.
- Framing guides, grids, aspects.
- Audio meters, and you can also monitor your audio signal via the 3.5mm headphone jack on the left side of the PT6.
- Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.
- Stretch leg tool: when shooting vertically, you can stretch the bottom part of the image.
- Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.

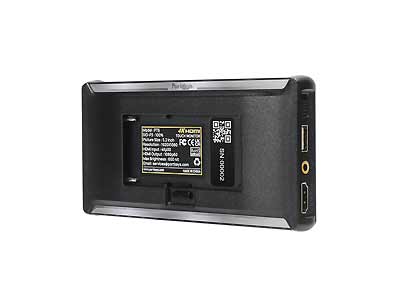

In terms of power, you’ll find a dual built-in battery plate at the back of the monitor that accepts either Sony NP-F or Canon LP-E6 batteries. With an extremely low power draw of only 6W, a single Canon LP-E6N battery pack can give you up to three hours of battery life!
Also, the 5V USB-A port on the left side and the 5.5mm barrel connector on the right side of the PT6 provide additional power inputs.
To view more Portkeys Products
Read Our Blog:
Other Site:
Portkeys PT6 Entry-Level 5.2-inch On-Camera Monitor
Add-R-SS-17.11.23
Features
Click to rate this post!
[Total: 6 Average: 4.8]
- 5.2-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1500:1 contrast ratio.
- Maximum brightness of 600nits, 100% DCI-P3 coverage.
- 1 x 4K HDMI input, 1 x HDMI input.
- Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT HDMI output capabilities.
- Built-in Sony NP-F and Canon LP-E6 style battery plate.
- 5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
- Low power draw: only 6W.
- Lightweight and rugged ABS + PC housing: only 170g/6.0oz.
Specifications
Click to rate this post!
[Total: 6 Average: 4.8]
Basic Parameters
- Screen Size: SHARP 5.2 inches Anti-fingerprint Conating IPS
- Dimension: 150.7*77.8*18.5mm
- Viewing Angle: 178°H/178°V
- Brightness: 600nit
- Resolution: 1920*1080
- Contrast Ratio: 1500:1
- Weight: 170g
- Color Depth: 10bit(8+2 FRC)
- Maximum Power: 6W
- Material: PC+ABS
- Power Input: 7-24V
- Color Gamut: 100% P3
In The Box
Click to rate this post!
[Total: 6 Average: 4.8]
- 1x PT6 Monitor
- 1x PT6 Sunshade
- 1x HDMI to HDMI Cable
- 1x Micro HDMI to HDMI Cable
- 2x Pair of Rubber Covers
- 1x MH-2 Mount
- 1x Safety Box
Download Catalogue
Click to rate this post!
[Total: 6 Average: 4.8]
Delivery Info
Click to rate this post!
[Total: 6 Average: 4.8]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Portkeys PT6 Professional Entry-level 5.2-inch on-camera Monitor
Clear filtersOnly logged in customers who have purchased this product may leave a review.
You may also like…
USD 244.00 – USD 292.00 excl. Tax excl. Tax
USD 489.00 excl. Tax
USD 649.00 excl. Tax
USD 879.00 excl. Tax
USD 585.00 excl. Tax
USD 733.00 excl. Tax
USD 89.00 excl. Tax
USD 390.00 excl. Tax
USD 390.00 excl. Tax
USD 1,949.00 excl. Tax
USD 342.00 – USD 390.00 excl. Tax excl. Tax
USD 1,714.00 excl. Tax
Related products
USD 311.00 excl. Tax
USD 765.00 excl. Tax
USD 199.85 excl. Tax
USD 2,599.00 excl. Tax
Stephen Chong –
The Portkeys PT6 is a compelling entry-level on-camera monitor that, despite its economical price point, packs a punch with an array of practical features tailored for professional use.
Focused Benefits and Usability:
Precision Monitoring Tools: The PT6 shines in its provision of essential monitoring tools crucial for ensuring precise and accurate shots. Features like Luma and RGB Waveform, Histogram, and Zebra aids in accurate exposure management, allowing users to maintain optimal image quality in varying lighting conditions.
Customized Image Adjustments: Its ability to adjust image parameters such as contrast, brightness, and tone modifications empowers users to fine-tune visuals according to their preferences, ensuring the final footage aligns perfectly with their artistic vision.
Enhanced Focus Assistance: The new Peaking algorithm with the Peaking Frame feature offers a clear visual guide for maintaining focus, allowing users to ensure crisp shots even in scenarios where the camera’s UI might obstruct the view.
Creative Composition Aids: The PT6’s functionality extends to assisting in creative composition. Customized image crop and anamorphic de-squeeze features cater to specific shooting styles, providing versatility for various aspect ratios and anamorphic settings.
Audio Monitoring Capability: Alongside its video-focused features, the PT6 accommodates audio monitoring via the 3.5mm headphone jack, ensuring a comprehensive approach to capturing high-quality audio-visual content.
Power Efficiency: The dual built-in battery plate system that supports Sony NP-F or Canon LP-E6 batteries, coupled with the remarkably low power draw of 6W, ensures prolonged usage. A single Canon LP-E6N battery pack offers up to three hours of operational time, ideal for extended shoots without constant recharging interruptions.
Versatile Power Inputs: The provision of multiple power input options, including the 5V USB-A port and the 5.5mm barrel connector, enhances flexibility in power management, allowing users to adapt to various power sources or add backup power if needed.
Compact and Lightweight Design: Weighing only 170g (6oz) without a battery, the PT6’s compact and lightweight design makes it an easily portable and convenient addition to any camera setup, enabling effortless maneuverability during shoots.
In conclusion, the Portkeys PT6 On-Camera Monitor stands out for its focus on essential monitoring tools and creative aids, offering tremendous value and usability for users seeking a budget-friendly yet feature-packed solution. Its comprehensive set of features geared towards precise monitoring and creative control make it an ideal companion for content creators looking to elevate their productions without breaking the bank.
