SmallHD Cine 7 Full HD 7-inch Touchscreen Monitor + V-Mount Bracket

Weight 4.44 kg
SKU: MON-CINE7-VM-KIT Category:

This model has been discontinued

Description
Click to rate this post!
[Total: 0 Average: 0]

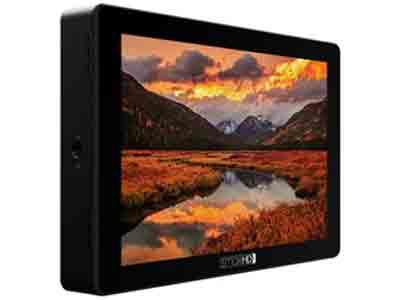

SmallHD Cine 7 Full HD 7-inch Touchscreen Monitor

SmallHD Cine 7 Professional on-camera monitor – With optional ARRI camera control via included Ethernet cable (License sold separately).

Cine 7 is a top of the line professional 7″ monitor with ARRI camera control. Its 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment. With Teradek RT overlay integration and Teradek wireless video technology, Cine 7 delivers an experience that represents the gold standard for A-list cinematography.

BUILT FOR PROFESSIONALS

The Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminum frame and several 1/4″-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment. Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.

DATA DRIVEN CONFIDENCE

SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms, and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

SEE THE IMAGE IN ANY ENVIRONMENT

Be prepared for any production environment with Cine 7’s super bright, daylight viewable display. At 1800 nits bright, Cine 7 offers crystal-clear monitoring for any lighting situation whether you’re working under production lights or in the glaring sun.

Specifications
Click to rate this post!
[Total: 0 Average: 0]
Display
Panel Type
IPS LCD
Size Diagonal
7.02
Resolution
1920×1200
Pixel Density (PPI)
322
Aspect Ratio
16:10
Active Area
5.95 x 3.72
Brightness
1800 NITs
Contrast
1000:1
Color Gamut
100% DCI-P3 Coverage
Color Depth
10-bit Processing (8-bit panel)
Viewing Angle
160
Backlight Type
LED
Adjustable Backlight
Yes
Controls
Primary Control Interface
Touch Screen
Record/Capture
Image Capture Tool
Power
Connector Type
LEMO
Voltage
DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
Recommended Power Supply
Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection
DC input: Reverse polarity
Battery Types
L-Series, V Mount, Gold Mount
Battery Chemistry
Li-ion
Battery Charging Time (hours)
Monitor does not support the charging of batteries
Environmental
Compliance
FCC, IC, CE, RoHS
Operating Temperature
30F to 100F
Storage Temperature
0F to 120F
Height
4.67″ (11.86cm)
Width
1.32″ (3.35cm)
Depth/Length
7.09″ (18.01cm)
Weight (Item Only without battery)
20oz (566.99g)
Weight (Packaged)
45oz (1275.73g)
Mount Points
Four -20 Mount Points (Left, Right, Bottom, and Back)
In The Box
Click to rate this post!
[Total: 0 Average: 0]
  • 1x Cine 7 On-Camera Monitor
  • 1x V-Mount Battery Bracket for 702 Touch and CINE 7 Series
  • 1x Sony L Series Battery Bracket for 702 Touch and CINE 7 Series
  • 1x ARRI Camera Control Cable
  • 1x LEMO to D-Tap, P-Tap Power Cable – 36in
  • 1x 8GB SD Card
  • 1x SmallHD Cleaning Cloth
  • 1x 702 Touch/Cine 7 UltraClear Screen Protector
