Tascam DR-60D MKII 4-Track Audio Recorder for DSLR Cameras
USD 199.00 excl. Tax
| Weight | 5 kg |
|---|
Description
Click to rate this post!
[Total: 0 Average: 0]

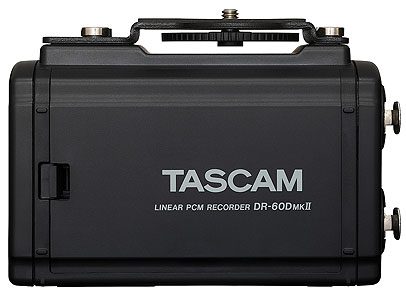

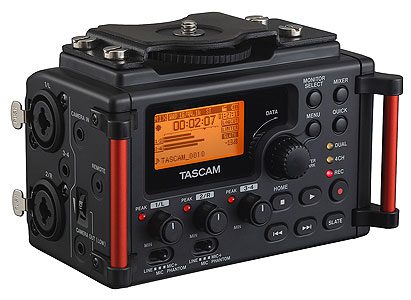

Tascam DR-60D MKII 4-Track Audio Recorder for DSLR Cameras
The Tascam DR-60D MKII is a compact 4-track audio recorder for dedicated use with a digital single-lens reflex (DSLR) or digital single-lens mirrorless (DSLM) camera as a video system. It can be mounted directly to the camera and offers various audio inputs and outputs to allow the recording of high-resolution audio material in parallel to, but separated from the camera and its video data.
The Tascam DR-60D MKII recorder features Tascam original HDDA microphone preamps which are known for high S/N ratio, low input-referred noise and low distortion. Recordings can be made at 44.1/48/96 kHz, 16/24-bit in WAV or BWF format. In addition to ordinary stereo recording, it is possible to record up to four channels simultaneously which can then be mixed down to a stereo signal.
Recording levels can be adjusted independently for inputs 1, 2 and 3 4 and the Dual Recording function allows two files to be recorded in parallel at different levels.
The Tascam DR-60D MKII can output high-quality audio to a DSLR/DSLM camera to be recorded there as a reference track, and a camera input enables convenient monitoring of audio sent from a DSLR camera. Mid-side decoding, slate tone functions (automatic/manual), selectable time delay and other functions for convenient recording are also available.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| General | ||
|---|---|---|
| Recording media | SD card (64 MB ? 2 GB) SDHC card (4?32 GB) |
|
| Audio file compatibility | WAV: 44.1/48/96 kHz, 16/24-bit BWF (Broadcast Wave Format): 44.1/48/96kHz, 16/24-bit |
|
| Number of channels | 4 channels (stereo x 2) | |
| Analogue audio inputs and outputs | ||
| Mic/Line input 1/L, 2/R (switchable phantom power) | XLR-3-31 6.3-mm standard TRS Jack |
|
| Input switch set to MIC or MIC+PHANTOM | ||
| Input impedance | 2 k? | |
| ??Phantom Power | 48 V ?4 V (10 mA/channel) or 24 V ?4 V (10 mA/channel) |
|
| ??Maximum input level | 0 dBu | |
| ??Minimum input level | ?72 dBu | |
| ??Mic input gain (input level knob at maximum) | LOW: +11 dB MID: +36 dB HIGH: +52 dB HIGH+PLUS: +64 dB |
|
| Input switch set to LINE | ||
| Input impedance | 10 k? or higher | |
| ??Nominal input level | +4 dBu | |
| ??Maximum input level | +24 dBu | |
| Mic/Line input 3-4 (supports plug-in power) | 3.5-mm stereo mini jack | |
| Input impedance | 10 k? | |
| ??Maximum input level | +10 dBV | |
| ??Minimum input level | ?50 dBV | |
| ??Mic input gain (input level knob at maximum) | LOW: +3 dB HIGH: +26 dB HIGH+PLUS: +38 dB |
|
| CAMERA IN jack | 3.5-mm stereo mini jack | |
| Input impedance | 10 k? | |
| ??Nominal input level | ?10 dBV | |
| ??Maximum input level | +6 dBV | |
| CAMERA OUT (LOW) jack | 3.5-mm stereo mini jack | |
| ??Output impedance | 200 ? | |
| ??Nominal output level | ?50 dBV | |
| ??Maximum output level | ?30 dBV | |
| Headphones output | 3.5-mm stereo mini jack | |
| ??Maximum output power | 50 mW + 50 mW | |
| CAMERA OUT (HIGH)/LINE OUT jack | 3.5-mm stereo mini jack | |
| ??Output impedance | 200 ? | |
| ??Nominal output level | ?10 dBV | |
| ??Maximum output level | +10 dBV | |
| Other inputs and outputs | ||
| USB | USB Mini-B Type | |
| ??Format | USB 2.0 HIGH SPEED mass storage class | |
| REMOTE jack | 2.5-mm TRS jack | |
| Audio performance | ||
| Frequency response | 20 Hz ? 20 kHz, +0.5/?2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA) 20 Hz ? 40 kHz, +0.5/?3 dB (LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA) |
|
| Distortion | 0.02% or less (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) | |
| S/N ratio | 92 dB or more (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) | |
| Equivalent input noise | ?120 dBu or less | |
| Note for JEITA | Conforming to JEITA CP-2150 | |
| Computer compatibility | ||
| Windows | Pentium 300 MHz or faster 128 MB or more memory |
|
| Mac | Power PC, iMac, G3, G4 266 MHz or faster 64 MB or more memory |
|
| Recommended USB port | USB 2.0 | |
| Recommended USB host controller | Intel chipset | |
| Supported operating systems | Windows XP, Windows Vista, Windows 7, Windows 8 (including Windows 8.1), Mac OS X 10.2 or later | |
| Power supply and other specifications | ||
| Power supply | Four AA batteries (Alkaline or Ni-MH) USB bus power supplied from a computer AC adaptor (TASCAM PS-P515U, sold separately) External battery pack (TASCAM BP-6AA, sold separately) |
|
| Power consumption | 5.4 W (maximum) | |
| Dimensions (W ? H ? D) | 133 mm ? 93 mm ? 78 mm (with the top adapter attached) | |
| Weight | 510 g (without batteries) | |
| Operating temperature range | 0?40 ?C | |
In The Box
Click to rate this post!
[Total: 0 Average: 0]
- 1x Tascam DR-60DMKII 4-Track Audio Recorder
- 1x USB Cable
- 1x Warranty Card
- 1x Owners Manual
