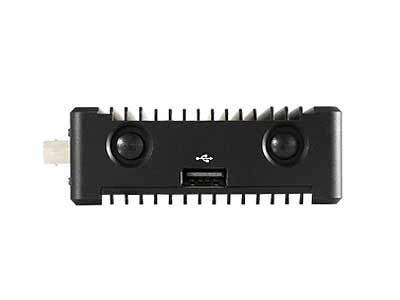

Teradek Cube 725 – HEVC/AVC (H.265/H.264) Decoder
Teradek Cube 725 is the latest in Teradek’s line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Cube 625 offers SD/HD MPEG-4 HEVC/AVC decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.
With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 725 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Specifications | |
|
Video |
|
| Video Outputs | HDMI 1.4a: Full Size SD/HD/3G-SDI (75 Ω BNC) |
|
Supported Resolutions |
|
| Supported Resolutions | 1080p 24/25/29.97/30/50/59.94/60* 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 480p (for HDMI output only) 576p (for HDMI output only) |
|
Video Processing |
|
| Video Compression | Decompresses HEVC (H.265), H.264, Baseline, Main and High Profile |
| Supported Video Bitrate | 250 Kbps to 15 Mbps 15 Mbps (wired), 10 Mbps (WiFi) |
| Test Pattern Generator Support | None |
| Video Format Conversion Support | Built in Video Scaler and Deinterlacer |
| Color Correction | None |
|
Protocol Support |
|
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP,NDI |
| Supported Video Transport Protocols | RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP Teradek Streaming : Unicast/UDP, Multicast/UDP |
| Remote Control | Teradek Core |
|
Audio Processing |
|
| Audio Compression | AAC-LC, MPEG Layer 2 |
|
Inputs |
|
| Audio Input | Embedded Audio Input Analog Line or Mic in, adjustable gain |
|
Outputs |
|
| Audio Output | Headphone output, adjustable volume |
|
Physical |
|
| Dimensions | 2.7″ W x 3.5″ D x 1.5″H [68.58 x 88.9 x 38.1 mm] |
| Weight | 8.4oz [238g] (without modems) |
| Construction | Milled Aluminum |
|
Interfaces |
|
| Http | WebUI for Configuration and Control |
| Configuration Interfaces | OLED Display with joystick Navigation buttons Feature-rich WebUI for configuration and control |
| Switches | On/Off and Reset Switch |
| Usb Interface Functionality | Powered USB 2.0 host port |
|
Network |
|
| Ethernet | 10/100BASE-T |
| Wireless | WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo |
| Usb | None |
| Rf Channel Selection | Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only) Configurable to specific channels |
| Encryption | 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES |
|
Power |
|
| Power Input | 2 Pin Connector Power input |
| Battery | No Battery Included |
| Nominal Power Consumption | 8W, 7W (no WiFi) |
| Auxilary Power Input | 6-28V DC |
|
Enviornmental |
|
| Operating Temperature | 0 – 50 C |
In The Box
Click to rate this post!
[Total: 0 Average: 0]
- 1 x Cube 725
- 1 x Ethernet Cable
- 1 x HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
- 1 x SDI – BNC to BNC Cable, 10in
- 1 x PSU 2pin Conn to 18W AC Adapter (Int) – 6ft
