Vaxis Storm 2000 Kit Zero Delay Wireless Video System

Vaxis Storm 2000 Kit HDMI/SDI Wireless Transmission System(Transmitter and Receiver)

Vaxis Storm 2000 Kit HDMI/SDI Wireless Transmission System comes with 1 Transmitter and 1 Receiver with V-Mount Plate.

Highlights:

• • 2000ft Range
  • Zero Delay
  • No Compression
  • Multi-cast
  • Built-in HDMI to SDI Converter
  • OLED FM
  • Smaller and Lightweight
  • Cooling Fan

Vaxis Storm 2000S Overview

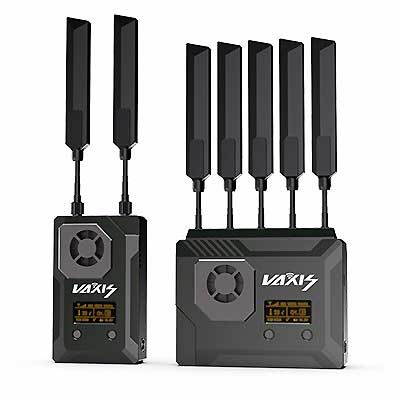

Vaxis Storm 2000 HDMI/SDI WHDI Wireless Transmission System from Vaxis allows you to transmit visually lossless, uncompressed video signals to its receiver with almost zero latency. The supplied 7 antennas included 5 GHz antennas, two on the transmitter and five on the receiver, transmit and receive a powerful line-of-sight signal up to 600m or 2000 feet’.

The transmitter features one HDMI input, one SDI input, and one SDI loop-through output. The receiver features two SDI outputs and one HDMI output, and together they support up to 1080p60 video transmissions. The transmitter also supports cross-conversion from HDMI input to SDI loop output as well as time code and metadata. The transmitter supports multicast, allowing it to transmit a single video signal to multiple receivers, including other Vaxis models such as the Storm 058, 800, Strom 1000S, and 5000.

Each unit can be powered using its 2-pin LEMO-type connector with a separately available cable and AC or DC source. The receiver can also be powered using a separately available V-mount or Gold mount battery plate. The Storm 2000 system operates on the free 5.1 to 5.9 GHz wireless frequency range, and each unit features a bright LED display showing connection status and channel information. Two D-Tap to 2-pin LEMO power cables and a standard BNC cable are included, so you can plug them in right out of the box. Each unit can be secured to a camera or other SDI/HDMI video source via a built-in 1/4″-20 mounting thread. An articulating extension arm is also included for mounting and a hard-shell case to store the entire kit.

Key Features of Vaxis Strom 2000s
Vaxis storm 2000s Transmitter and receiver set transmits up to 1080p wireless video up to 2000′ line of sight
The transmitter features one SDI and one HDMI input, and one SDI loop output; the receiver features two SDI outputs and one HDMI output
Units are powered by their 2-pin LEMO-type ports

Multicast support to transmit video from one transmitter to multiple receivers
HDMI/SDI cross-conversion support on the transmitter
Timecode and metadata support
The bright LCD screen on each unit for settings, status, and to scan for open frequencies in 5.1 to 5.9 GHz range
Each unit mounts on the rig using a 1/4″-20 thread
Compatible with Storm 058, 800, 1000S, and 5000

Optional V-mount or Gold mount plate on receiver

Durable metal housing

If you require an even longer transmission range, you may consider the next range of product
Vaxis Storm 3000
