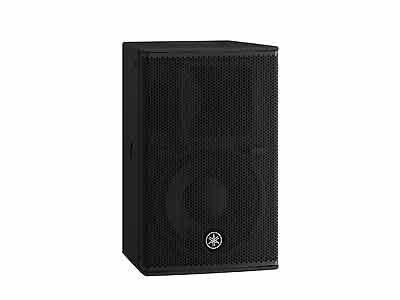

Yamaha CHR10 700W 2-Way 10″ Passive Loudspeaker
Yamaha CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha?s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.
Features:
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration.
- Plywood enclosure with a polyurea coating for a robust, scratch-resistant surface.
- Compact appearance thanks to the 10-inch LF driver that provides an excellent low-frequency response.
- Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments.
- Optional UB-DXRDHR10 U-bracket allows both vertical and horizontal use.
- A pole socket for use on a stand.
- Rigging points for use with eye bolts.
- Yamaha DSP-equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
To view more Yamaha Products
Our Blog:
CBR Series Related Products:
- Yamaha CBR10 10? Passive Loudspeaker
- Yamaha CBR12 12? Passive Loudspeaker
- Yamaha CBR15 15? Passive Loudspeaker
CHR Series Products:
CXS series:
CZR Series Products:
- Yamaha CZR10 10?Passive Loudspeaker
- Yamaha CZR12 12? Passive Loudspeaker
- Yamaha CZR15 15? Passive Loudspeaker
- Yamaha DZR315-D Powered Loudspeaker
VKE Series Products:
- Yamaha VKE2010 10? LF Loudspeaker
- Yamaha VKE2012 12? LF Loudspeaker
- Yamaha VKE2015 15? LF Loudspeaker
VS series Products:
VXS Series Products:
Specifications
Click to rate this post!
[Total: 2 Average: 5]
| CHR10 | ||
|---|---|---|
| General Specifications | ||
| Speaker type | 2-way Speaker, Bass-reflex | |
| Frequency range (-10dB) | 55 Hz – 20 kHz | |
| Coverage area | H90ﾟ x V60ﾟ (Rotatable) | |
| Crossover | 2.5 kHz | |
| Nominal impedance | 8 Ω | |
| SPL | Sensitivity (1W; 1m on-axis) | 93 dB SPL |
| Peak (Calculated) | 122 dB SPL | |
| Components | LF | Diameter: 10″ cone, Voice Coil: 2″, Magnet: Ferrite |
| HF | Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite | |
| Power rating | NOISE | 175 W |
| PGM | 350 W | |
| PEAK | 700 W | |

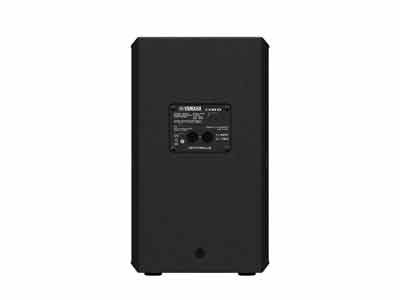

| I/O connectors | SpeakON NL4MP x 2 (Parallel) | |
| Cabinet material | Plywood | |
| Finish | Durable Polyurea Painting, Black | |
| Handle | Top x1 | |
| Pole socket | Φ35 mm x1 (Bottom) | |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 – 50 mm Eyebolts) | |
| Floor Monitor Angle | – | |
| Dimensions | W | 305 mm (12.0″) |
| H | 494 mm (19.5″) (with rubber feet) | |
| D | 300 mm (11.8″) | |
| Net weight | 13.7 kg (30.2 lbs) | |
| Options | U-bracket: UB-DXRDHR10 | |
