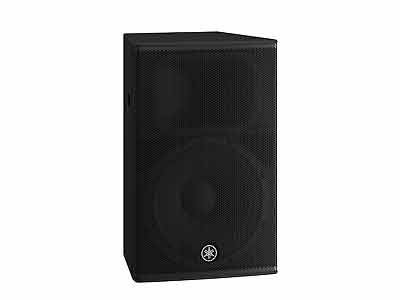

Yamaha CHR15 1000W 2-Way 15″ Passive Loudspeaker
Yamaha CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as the main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.
Yamaha CHR 15” model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.
Features:
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration.
- Plywood enclosure with a polyurea coating for a robust, scratch-resistant surface.
- Compact size despite the 15-inch LF driver that provides an excellent low-frequency response.
- Dual-angle pole sockets offer both 0° or a -7° down tilt.
- Rigging points for use with eye bolts.
- Yamaha DSP-equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
To view more Yamaha Products
CBR Series Related Products:
- Yamaha CBR10 10″ Passive Loudspeaker
- Yamaha CBR12 12″ Passive Loudspeaker
- Yamaha CBR15 15″ Passive Loudspeaker
CHR Series Products:
CXS series:
CZR Series Products:
- Yamaha CZR10 10″Passive Loudspeaker
- Yamaha CZR12 12″ Passive Loudspeaker
- Yamaha CZR15 15″ Passive Loudspeaker
- Yamaha DZR315-D Powered Loudspeaker
VKE Series Products:
- Yamaha VKE2010 10″ LF Loudspeaker
- Yamaha VKE2012 12″ LF Loudspeaker
- Yamaha VKE2015 15″ LF Loudspeaker
VS series Products:
VXS Series Products:
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| CHR15 | ||
|---|---|---|
| General Specifications | ||
| Speaker type | 2-way Speaker, Bass-reflex | |
| Frequency range (-10dB) | 49 Hz – 20 kHz | |
| Coverage area | H90ﾟ x V60ﾟ | |
| Crossover | 2.0 kHz | |
| Nominal impedance | 8 Ω | |
| SPL | Sensitivity (1W; 1m on-axis) | 95 dB SPL |
| Peak (Calculated) | 125 dB SPL | |
| Components | LF | Diameter: 15″ cone, Voice Coil: 2.5″, Magnet: Ferrite |
| HF | Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite | |
| Power rating | NOISE | 250 W |
| PGM | 500 W | |
| PEAK | 1,000 W | |
| I/O connectors | SpeakON NL4MP x 2 (Parallel) | |
| Cabinet material | Plywood | |
| Finish | Durable Polyurea Painting, Black | |
| Handle | Side x2 | |
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) | |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 – 50 mm Eyebolts) | |
| Floor Monitor Angle | – | |
| Dimensions | W | 432 mm (17.0″) |
| H | 692 mm (27.2″) (with rubber feet) | |
| D | 405 mm (15.9″) | |
| Net weight | 22.0 kg (48.5 lbs) | |
| Options | – | |
