Description

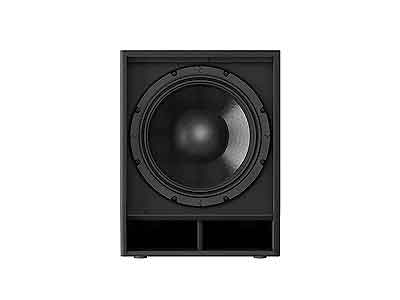

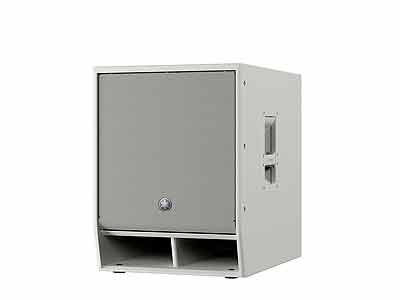

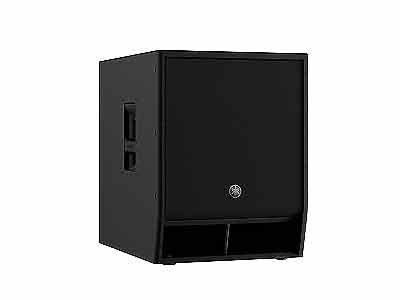

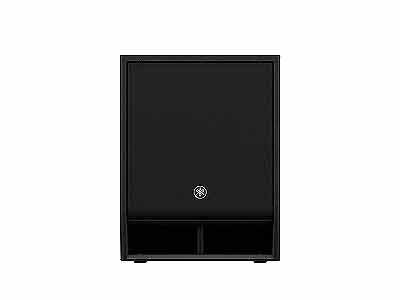

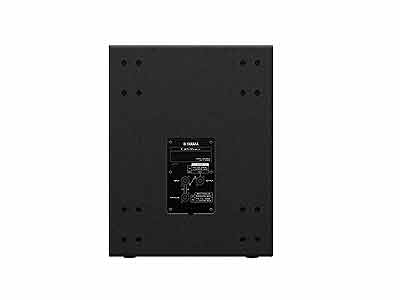

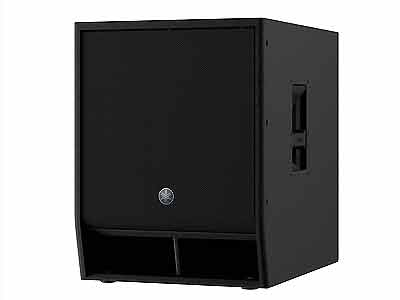

Yamaha CXS15XLF 800W 15″ Passive Subwoofer
Features:
- 15” subwoofer with 4” Voice Coil
- High power 800W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket

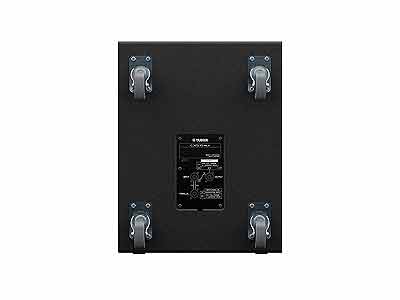

- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
- Durable Black or white finish
To view more Yamaha Products
CBR Series Related Products:
- Yamaha CBR10 10″ Passive Loudspeaker
- Yamaha CBR12 12″ Passive Loudspeaker
- Yamaha CBR15 15″ Passive Loudspeaker
CHR Series Products:
- Yamaha CHR10 10″ Passive Loudspeaker
- Yamaha CHR12M 12″ Passive Loudspeaker
- Yamaha CHR15 15″ Passive Loudspeaker
CXS series:
CZR Series Products:
- Yamaha CZR10 10″ Passive Loudspeaker
- Yamaha CZR12 12″ Passive Loudspeaker
- Yamaha CZR15 15″ Passive Loudspeaker
- Yamaha DZR315-D Powered Loudspeaker
VKE Series Products:
- Yamaha VKE2010 10″ LF Loudspeaker
- Yamaha VKE2012 12″ LF Loudspeaker
- Yamaha VKE2015 15″ LF Loudspeaker
VS series Products:
VXS Series Products:
Specifications
| Speaker type | Subwoofer, Bass-reflex | |
|---|---|---|
| Frequency range (-10dB) | Passive: 33 Hz – 3.5kHz, Normal (1): 35 Hz – 150 Hz, Extend (*1): 33 Hz – 150 Hz | |
| Coverage area | – | |
| Floor Monitor Angle | – | |
| Components | LF | 15″ Cone, 4″ Voice Coil, Ferrite magnet |
| HF | – | |
| Crossover | – | |
| Power rating | NOISE | 400 W (EIA 426-A) |
| PGM | 800 W (EIA 426-A) | |
| PEAK | 1600 W (EIA 426-A) | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on-axis) | 98dB |
| Peak (Calculated) | 130 dB | |
| I/O connectors | SpeakON NL4MP x 3 (Parallel x2, Output x1) | |
| Handle | Aluminium die-cast, Side x2 | |
| Pole socket | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
| Rigging | – | |
| Dimensions | W | 450 mm (17.7″) |
| H | 587 mm (23.1″) (with rubber feet) | |
| D | 600 mm (23.6″) | |
| Net weight | 35.6kg (78.5 lbs) | |
| Options | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White | |
- 1: With recommended DSP processing.
2: Half space (2π)
