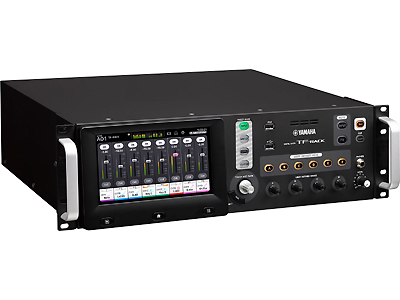

Yamaha TF-RACK Digital Mixer

Outline:

Mixing Capacity:

• Input Channels: 40 (32 mono + 2 stereo + 2 return)
• Aux Buses: 20 (8 mono + 6 stereo)
• Stereo Buses: 1
• Sub Buses: 1
• Input channel functions: 8 DCA Groups

I/O:

• Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
• Outputs: 16 (8 XLR + 8 TRS phone)
• Expansion slots: 1 (for NY64-D)
• On-board processors DSP: 8 Effects + 10 GEQ

General specifications:

• Sampling frequency rate Internal: 48 kHz
• Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
• Fader: Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
• Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
• Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
• Dynamic range: 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.

Hum & noise level:

• Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
• Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
• Crosstalk: –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
• Power requirements: 100–240 V 50/60 Hz
• Power consumption: 85 W

Dimensions:

• W: 480 mm (18-7/8 in)
• H: 2132 mm (5-1/4 in)
• D: 409 mm (16-1/8 in)
• Net weight: 9.2 kg (20.3lb)
• Accessories: Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)
• Options: Audio Interface Card (NY-64D), Foot Switch (FC5)
• Others: Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Recording/Playback

• PC/Mac (USB2.0): Recording 34 tracks, Playback 34 tracks
• USB Storage Device: Recording 2 tracks (USB hard drive/ SSD) *, Playback 2 tracks (USB hard drive/ SSD/ thumb drive)

Analog Input Characteristics

• Input Terminals: INPUT1-16
• GAIN: +66dB
• Load Impedance: 7.5kΩ
• For Use With Nominal: 50-600Ω Mics or 600Ω Lines

Input Level:

• Sensitivity: -82dBu (61.6μV)
• Nominal: -62dBu (0.616mV)
• Max. before clip: -42dBu (6.16mV)
• Connector: Combo Jack (XLR-3-31 type *2 or TRS phone *3)
• Balanced / Unbalanced: Balanced

Analog Output Characteristics:

• Output Terminals: OMNI OUT 1-16
• Source Impedance: 75Ω
• For Use With Nominal: 600Ω Lines

Output Level:

• Nominal: +4dBu (1.23 V)
• Max. before clip: +24dBu (12.3 V)
• Connector: XLR-3-32 type *1, TRS Phone Jack *6
• Balanced / Unbalanced: Balanced

Digital Input/Output Specifications:

Terminals: USB (TO HOST)

• Format: USB
• Data Length: 24bit
• Audio: 34ch input / 34ch output, PCM
• Connector: USB (B type)

Terminals: iPad

• Format: USB
• Data Length: –
• Audio: Playback: MP3 or WAV file data / Record: WAV file data
• Connector: USB (A type)

Control I/O Specifications:

• Terminals: NETWORK
• Format: IEEE802.3
• Level: 10BASE-T/100Base-TX
• Connector: RJ-45

Terminals: FOOT SW

• Format: –
• Level: –
• Connector: TS Phone
