Audio Technica AT2022 X/Y Stereo Electret Condenser Capsules Microphone
USD 249.00 excl. Tax
Weight | 2 kg |
---|
This model has been discontinued

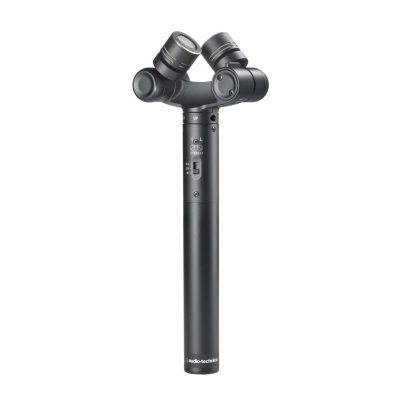

Audio Technica AT2022 X/Y Condenser Capsule Microphone
The Audio Technica AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90°) or wide (120°) stereo operation.
The capsules also fold flat for storage and transportation. Designed for general stereo recording and field sound capture, the Audio Technica AT2022 provides the spatial impact and realism of a live sound field. The microphone comes equipped with a stand clamp, AA battery, fuzzy windscreen, and .5 m cable that terminates in a 3.5 mm stereo plug.
Features for AT2022:
- Provides the spatial impact and realism of a live sound field
- Battery operation allows use with most recording devices
- Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
- User-selectable 90° or 120° stereo operation for narrow or wide pickup patterns
- Ideal for general stereo recording and field sound capture
- Excellent channel separation
- Included fuzzy windscreen offers excellent wind protection
- X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
Element
|
Condenser
|
---|---|
Polar Pattern
|
X/Y Stereo
|
Frequency Response
|
20 – 20,000 Hz
|
Low Frequency Roll-Off
|
150 Hz, 6 dB/octave
|
Open Circuit Sensitivity
|
–41 dB (8.9 mV) re 1V at 1 Pa
|
Channel Balance
|
< 2.5 dB
|
Impedance
|
200 ohms
|
Maximum input sound level
|
122 dB SPL, 1 kHz at 1% T.H.D.
|
Dynamic Range
|
103 dB, 1 kHz at Max SPL
|
Signal to Noise Ratio
|
75 dB, 1 kHz at 1 Pa
|
Battery Type
|
1.5V AA/UM3
|
Battery Current / Life
|
1.2 mA / 500 hours typical (alkaline)
|
Switch
|
Off, on/flat, on/roll-off
|
Weight
|
270g
|
Dimensions
|
192.0 mm (7.56″) long, 65.0 mm (2.56″) maximum head diameter, 21.0 mm (0.83″) body diameter
|
Output Connector
|
Integral 3-pin XLRM-type
|
Cable
|
0.5 m (1.6′) long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8″) TRS connector at output end
|
Accessories Included
|
Stand clamp; soft protective pouch
|
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
1 review for Audio Technica AT2022 X/Y Stereo Electret Condenser Capsules Microphone
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Radim –
Excellent microphone for universal use indoors and outdoors. Effective wind protection, with which you can make a big parade in the field even in stronger winds – for example, clean capture of sound approaching a storm or knocking waves at sea. At bars and discos, you will appreciate the fullness of the sound, even at the lowest frequencies, so it is great as a mini helper for capturing the atmosphere in the full frequency range. Overall, a very good microphone! Thanks Expandore!
