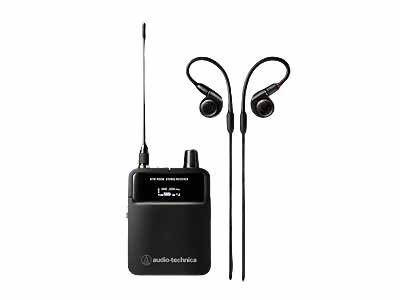

Audio-Technica ATW-R3250 3000 Series IEM Receiver
Body-pack receiver for 3000 Series In-Ear Monitoring System (ATW-3255). This is the powerful in-ear monitor wireless receiver is built for use with Audio-Technica 3000 Series systems. Audio-Technica ATW-R3250 receiver one low-profile body pack. There’s a heavy-duty clip for attaching to clothing, a volume knob, an OLED screen for viewing settings, and a 3.5mm headphone jack. The body pack accepts AA batteries and is compatible with ATW-CHG3 and ATW-CHG3N chargers.
The 3000 Series Wireless IEM offers exceptionally wideband UHF coverage (138 MHz), available in frequency band DF2 (470 – 608 MHz); receiver antenna diversity to ensure RF stability and stereo or mono operation with pan/personal mix controls.
Features:
- Durable wireless in-ear monitor system delivers high-quality sound and stable RF
- Ideal for use in houses of worship and performance venues
- Optimized internal digital signal processing provides exceptional stereo separation
- Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency bands DF2 (470 – 608 MHz) and EG2 (580 – 714 MHz)
- Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
- Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
- Offers network monitoring and control via Wireless Manager software
- A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
- Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
- Stereo or mono operation with pan/personal mix controls
- Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality
- Custom audio settings include EQ, limiter, gain control and balance
- Receiver’s antenna diversity improves RF stability
- Included ATH-E40 professional in-ear monitor headphones feature propriety dual phase push-pull drivers for exceptional accuracy and clarity
- Transmitter is equipped with balanced XLR inputs and loop output, plus network port
Specifications
Click to rate this post!
[Total: 0 Average: 0]
|
Operating Frequencies
|
Band DF2: 470.125 to 607.875 MHz |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Nominal/Peak Deviation | ±34 kHz nominal / ±45 kHz peak |
| Frequency Response | 40 Hz to 14,100 Hz |
| Stereo Separation | 75 dB |
| Operating Range | 90 m (300′) Open range environment with no interfering signals |
| Dynamic Range | >90 dB, A-weighted, typical |
| Total Harmonic Distortion | <0.2% (at 1 kHz, +4dBu input) |
| Maximum Simultaneous Use
(recommended) |
49 ch per band For assistance with multi-band operation or other frequency coordination issues, contact your local Audio-Technica dealer. |
| Notes | For product improvement, the product is subject to modification without notice. |
IEM Transmitter
|
RF Output Power
|
High: 50 mW, Low: 10 mW (switchable) at 50 ohms |
| Input Connection | XLR-F type×2 (Pin1: GND, Pin2: Hot, Pin3: Cold) |
| Maximum Input Level | XLR-F type: +24 dBu (at 0 dB sensitivity) |
| Output Connection | 6.3 mm (1/4″) TRS×2 (Tip: Hot, Ring: Cold, Sleeve: Ground） |
| Network | 100BASE-T |
| Network Port | RJ-45 |
| Power Supply | 100 to 240 V AC (50/60 Hz) to 12V DC 1 A (center positive) switched mode external power supply |
| Antenna Output | BNC-type, 50 ohms |
| Dimensions | 210 mm (8.3″)×191 mm (7.5″)×43.4 mm (1.7″) (W×D×H) |
| Weight | 1,100 g (39 oz) (without accessories) |
| Included Accessories | AC adapter Rack-mount (large, small) Flexible UHF antenna |
