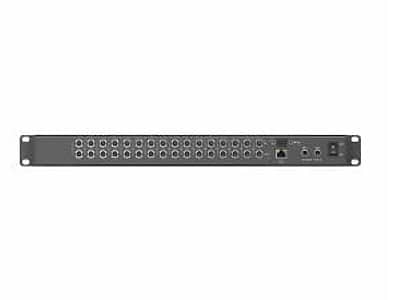

AVMATRIX MSS1611-S 16×16 Seamless SDI Matrix Switcher

Connections

• SDI Video Input: 16×SD/HD/3G-SDI(75Ω BNC)
• SDI Video Output: 16×SD/HD/3G-SDI(75Ω BNC)
• Control: Front panel button, PC software via LAN/RS-422
• Updates and Configuration: LAN(RJ45)

Standards

• SDI Input Format Support
  1080p 60/59.94/50/30/29.97/25/24/23.98
  1080PsF 30/29.97/25/24/23.98
  1080i 60/59.94/50
  720p 60/59.94/50
  720p 30/29.97/25/24/23.98
  625i 50
  525i 59.94
• SDI Output Format Support
  1080P60/59.94/50/30/29.97/25/24/23.98
  1080I60/59.84/50
  720P60/59.94/50/30/29.97/25/24
  625I50
  480I60/59.94
• SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
• SDI Compliance: SMPTE 372M, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Color Space and Precision: YUV 4:2:2 10bit

Power

• Power Supply: PS-1, PS-2, power redundancy
• Voltage Range: DC 12-24V
• Power Consumption: 14

Physical Specifications

• Dimension: Standard 19” 1 rack unit
• Net Weight: 2.0kg
• Gross Weight: 3.8kg

Environmental Specifications

• Operating Temperature: 0℃~60℃
• Storage Temperature: -30℃~70℃
• Relative Humidity: 0%~90% non-condensing
• Warranty: 3 Year Limited Manufacturer’s Warranty.

• Compact 1RU 16×16 3G-SDI Seamless Matrix Switcher
• DC 12V 5A Power Adapter × 2
