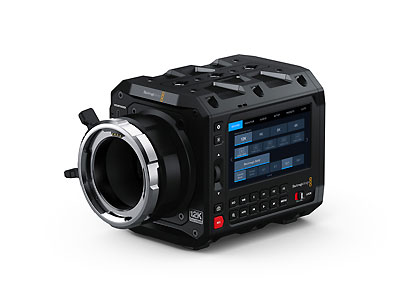

Blackmagic PYXIS 12K PL Mount Lens Digital Cinema Box Camera

Camera Features:

• Effective Sensor Size: 35.64mm x 23.32mm (Large Format)
• Pixel Pitch: 2.9 microns
• Lens Mount: PL mount with /i Technology.
• Lens Control: Iris and focus on supported lenses.
• Dynamic Range: 16 Stops.
• Native ISO: 800
• Shooting Resolutions: 12,288 x 8040 (12K 3:2 open gate)
  12,288 x 6912 (12K 16:9)
  12,288 x 6480 (12K 17:9)
  12,288 x 5112 (12K 2.4:1)
  9648 x 8040 (12K 6:5)
• 9408 x 6264 (9K 3:2)
  8688 x 4896 (9K 16:9)
  9312 x 4896 (9K 17:9)
  9312 x 3864 (9K 2.4:1)
  7680 x 6408 (9K 6:5)
• 8192 x 5360 (8K 3:2 open gate)
  8192 x 4608 (8K 16:9)
  8192 x 4320 (8K 17:9)
  8192 x 3408 (8K 2.4:1)
  6432 x 5360 (8K 6:5)
• 4096 x 2680 (4K 3:2 open gate)
  4096 x 2304 (4K 16:9)
  4096 x 2160 (4K 17:9)
  4096 x 1704 (4K 2.4:1)
  3216 x 2680 (4K 6:5)
• Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
• High Frame Rates: 12K (3:2 open gate) up to 40 fps
  12K (16:9) up to 45 fps
  12K (17:9) up to 50 fps
  12K (2.4:1) up to 60 fps
  12K (6:5) up to 40 fps
  9K (3:2 Super 35) up to 50 fps
  9K (16:9 Super 35) up to 65 fps
  9K (17:9 Super 35) up to 65 fps
  9K (2.4:1 Super 35) up to 80 fps
  9K (6:5 Super 35) up to 50 fps
  8K/4K (3:2 open gate) up to 72 fps
  8K/4K (16:9) up to 84 fps
  8K/4K (17:9) up to 90 fps
  8K/4K (2.4:1) up to 112 fps
  8K/4K (6:5) up to 72 fps
• Focus: Focus control possible using compatible lenses.
• Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses.
• Screen Dimensions: 4” 1920 x 1080.
• Screen Brightness: 1500 nits
• Screen Type: LCD capacitive touchscreen.
• Metadata Support: Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
• Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections:

• Total Video Inputs: None
• Total Video Outputs: 1 x 12G-SDI up to 2160p60
  1 x Viewfinder USB-C with power, data, video and locking connector.
• Analog Audio Inputs: 1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu).
  1 x 3.5mm Stereo Input.
• Analog Audio Outputs: 1 x 3.5mm headphone jack.
• Reference Inputs: Tri-Sync/Black Burst and Timecode.
• Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates.
• Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T.

Standards:

• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.

Audio:

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Media:

• Media: 2 x CFexpress Type B card slot, 1 x 10 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs:

• Codecs: Blackmagic RAW Constant Bitrate 3:1,
  Blackmagic RAW Constant Bitrate 5:1,
  Blackmagic RAW Constant Bitrate 8:1,
  Blackmagic RAW Constant Bitrate 12:1,
  Blackmagic RAW Constant Bitrate 18:1,
  Blackmagic RAW Constant Quality Q0,
  Blackmagic RAW Constant Quality Q1,
  Blackmagic RAW Constant Quality Q3,
  Blackmagic RAW Constant Quality Q5,
  H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

Control:

• External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
• iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings. Camera Control REST API over Ethernet.

Network Management:

• NTP: Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
• Web Media Manager: Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
• FTP: Download files from any drive attached to your camera using FTP.
• SMB: File sharing using SMB

Storage Features:

• Storage Type: 2 x CFexpress Type B
  1 x high speed USB-C expansion port for external media.
• Storage Rates: Storage rates based on 24 frames per second.
• 12K – 12,288 x 8040: Blackmagic RAW 3:1 – 1,194 MB/s
  Blackmagic RAW 8:1 – 448 MB/s
  Blackmagic RAW 12:1 – 299 MB/s
  Blackmagic RAW 18:1 – 199 MB/s
  Blackmagic RAW Q0 – 398 to 1,433 MB/s
  Blackmagic RAW Q1 – 326 to 796 MB/s
  Blackmagic RAW Q3 – 179 to 448 MB/s
  Blackmagic RAW Q5 – 120 to 358 MB/s
• 9K – 9408 x 6264: Blackmagic RAW 3:1 – 714 MB/s
  Blackmagic RAW 8:1 – 268 MB/s
  Blackmagic RAW 12:1 – 179 MB/s
  Blackmagic RAW 18:1 – 119 MB/s
  Blackmagic RAW Q0 – 238 to 857 MB/s
  Blackmagic RAW Q1 – 195 to 476 MB/s
  Blackmagic RAW Q3 – 107 to 268 MB/s
  Blackmagic RAW Q5 – 72 to 214 MB/s
• 8K – 8192 x 5360: Blackmagic RAW 3:1 – 533 MB/s
  Blackmagic RAW 5:1 – 320 MB/s
  Blackmagic RAW 8:1 – 200 MB/s
  Blackmagic RAW 12:1 – 133 MB/s
  Blackmagic RAW Q0 – 320 to 639 MB/s
  Blackmagic RAW Q1 – 228 to 533 MB/s
  Blackmagic RAW Q3 – 133 to 400 MB/s
  Blackmagic RAW Q5 – 100 to 266 MB/s
• 4K – 4096 x 2680: Blackmagic RAW 3:1 – 135 MB/s
  Blackmagic RAW 4:1 – 101 MB/s
  Blackmagic RAW 5:1 – 81 MB/s
  Blackmagic RAW 6:1 – 68 MB/s
  Blackmagic RAW Q0 – 202 to 336 MB/s
  Blackmagic RAW Q1 – 135 to 311 MB/s
  Blackmagic RAW Q3 – 101 to 238 MB/s
  Blackmagic RAW Q5 – 81 to 202 MB/s

Recording Formats:

• Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: 12,288 x 8,040, 12,288 x 6,912, 12,288 x 6,480, 12,288 x 5,112 and 9,648 x 8,040 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
• Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: 9,408 x 6,264, 8,688 x 4,896, 9,312 x 4,896, 9,312 x 3,864 and 7,680 x 6,408 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
• Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: 8,192 x 5,360, 8,192 x 4,608, 8,192 x 4,320, 8,192 x 3,408 and 6,432 x 5,360 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
• Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: 4,096 x 2,680, 4,096 x 2,304, 4,096 x 2,160, 4,096 x 1,704 and 3,216 x 2,680 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.

Software:

Software Included:

• Blackmagic OS
• DaVinci Resolve Studio for Mac and Windows including activation key
• Blackmagic Camera Setup
• Blackmagic RAW Player
• Blackmagic RAW QuickLook Plugin
• Blackmagic RAW SDK
• Blackmagic RAW Speed Test
• Operating Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.

Power Requirements:

• Power Supply: 1 x External 18V DC 90 W power supply.
• External Power Input: 1 x 2‑pin Lemo compatible locking connector.
• Battery Type: BP-U series.
• Power: 12V – 18V

Accessories

Optional Accessories:

• Blackmagic URSA Cine Handle
• Blackmagic URSA Cine EVF
• Blackmagic PYXIS Rosette Plate
• Blackmagic PYXIS Monitor
• Blackmagic PYXIS Monitor Kit
• Blackmagic PYXIS Monitor EVF Kit

Environmental Specifications:

• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non-condensing
• Warranty: 1 Year Limited Manufacturer’s Warranty.

• Blackmagic PYXIS 12K PL
• Lens turret dust cap
• PYXIS Standard Plate
• PYXIS SSD Plate
• 90W power supply with locking connector and international adapters
• Welcome booklet
• DaVinci Resolve Studio activation key
