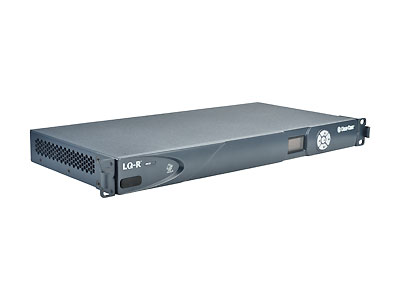

Clear-Com LQ-R4WG8 8-Channel 4-Wire GPIO IP Interface
Description
Click to rate this post!
[Total: 1 Average: 5]
Clear-Com LQ-R4WG8 Eight Channel 4-Wire GPIO analog Interface Ports
The Clear-Com LQ-R4WG8 is an advanced 8-Channel 4-Wire GPIO IP Interface, designed with a rich set of features to provide versatile and powerful communication solutions.
Key Features of LQ-R4WG8:
8 Analog Interface Ports: Equipped with 8 DB-9 ports, offering 8 4-wire and GPIO analog interface connections for enhanced flexibility.
Intercom-over-IP: Excelling in routing intercom and audio signals over IP networks, the LQ-R4WG8 ensures efficient and adaptable communication.
Network Connectivity: Enables connection of up to 6 LQ devices over LAN, WAN, or the Internet, extending the coverage of communication networks.
Remote Connectivity: Allows remote connections for up to 8 IVC-32-HX or E-IPA-HX ports per device, expanding accessibility for communication links.
Versatile Connections: Seamlessly connects with matrix intercom systems, analog telephone circuits, two-way radio gateways, and audio consoles, ensuring compatibility with various communication devices.
Agent-IC and Station-IC Support: Supports up to 8 Agent-IC and Station-IC clients per device (license required), providing scalability for communication networks.
SIP Client Connections: With the necessary license, the device supports up to 8 SIP client connections, enhancing compatibility with SIP-based communication systems.
Integration with HelixNet: Connects to HelixNet via HLI-ET2 over LAN or WAN, expanding integration capabilities with other Clear-Com systems.
Expanded Audio I/O for HelixNet: By connecting to the LQ Series, it can add up to 24 ports of audio I/O per HelixNet Main Station, contributing to a more comprehensive communication setup.
Compatibility with Clear-Com Eclipse and Drake 4000 Panels: 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels, ensuring compatibility with specific communication equipment.
Adjustable Bandwidth: Offers adjustable bandwidth on a per-port basis, allowing fine-tuning based on specific communication needs.
Connectors: Connectors include Network/LAN ports with EtherCON/RJ45 (female) and 4-wire with GPIO Audio I/O using 9-way D-type (male), ensuring compatibility with industry-standard connectors.
Network-Friendly OPUS Codec: Utilizing the OPUS Codec, the device ensures network-friendly audio compression and transmission.
Browser-Based Configuration: Features a browser-based Core Configuration Manager application for easy and intuitive configuration.
Networked Control Events: Supports Networked Control Events for multi-unicast one-to-many routing, enhancing control and customization options.
In summary, the Clear-Com LQ-R4WG8 8-Channel 4-Wire GPIO IP Interface is a comprehensive solution for professional communication needs, offering a multitude of features for seamless and adaptable intercom-over-IP functionality. Its compatibility, connectivity options, and advanced capabilities make it an essential component in diverse communication setups.
To view more Clear-com Products
Related Products:
- Clear-Com LQ-2W2 2-Channel Interface Box
- Clear-Com LQ-4W2 IP Communication Interface Box
- Clear-Com LQ-4WG2 2-Channel 4-Wire GPIO IP Interface
- Clear-Com LQ-R4W8 8-Channel 4-Wire IP Interface
- Clear-Com LQ-R2W4 4-Channel Partyline IP Communication Interface
- Clear-Com LQ-R2W4-4W4 4-channels IP Interface
Indhu UC added on 29 Feb 24
Features
Click to rate this post!
[Total: 1 Average: 5]
- Intercom-over-IP: routing intercom and audio signals over IP networks
- Connect up to 6 LQ devices together over LAN, WAN, Internet
- Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
- Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
- Supports up to 8 Agent-IC and Station-IC clients per LQ device (license required)
- Supports up to 8 SIP client connections per LQ device (license required)
- Connects to HelixNet via HLI-ET2 over LAN or WAN
- Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
- 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
- Adjustable bandwidth on a per port basis
- Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire with
- GPIO Audio I/O: 9-way D-type (male)
- Network-friendly OPUS Codec
- Browser-based Core Configuration Manager application
- Networked Control Events for multi-unicast one-to-many routing
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Audio:
- Resolution: 12, 24 bit
- Sample Rate: 24, 48kHz
- Frequency Response: 100 – 12kHz or 100 – 20kHz
- CODEC: OPUS
- Line Level: (0dB)
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
- Mic Level: (-50dB)
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
Network Setting:
- Bit Rates: 16, 32, 48, 64, 128kbps
- Packet Size: 5, 10, 20, 40, 60ms
- Jitter Buffers: 0 – 1000ms
Connectors:
- Network/LAN: EtherCON/RJ45 (female)
- 4-wire with GPIO Audio I/O: 9-way D-type (male)
Partyline Output Current:
- Type: Clear-Com & RTS TW
- Local DC Powered: 250mA per pair of partyline ports (500mA total)
Power Supply:
In-line supply with sleeve locking connector
- Input: 100-240V, 50-60Hz, 1.4A MAX
- Output: DC 12V, 5A, 60W MAX
Environmental:
- Operating Temperature: +32°F – +104°F (0°C – +40°C)
- Storage Temperature: -67°F – +158°F (-55°C – +70°C)
- Humidity: 90%, non-condensing
- Dimensions: 19 x 1.79 x 8.8in (WxHxD)(483 x 46 x 224mm)
- Weight: 4.29lbs (1.95kg)
