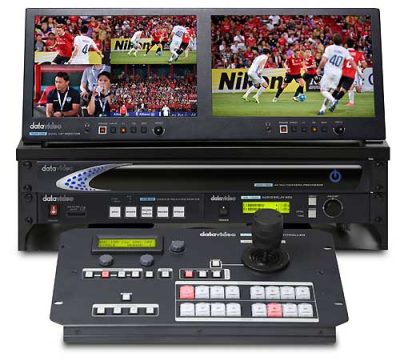

DataVideo GO KMU-100 Studio 2 Input, 8 Virtual Camera Portable Video Production Studio
USD 7,807.00 excl. Tax
Product Highlights
- Portable Video Production Studio
- Supports 2 Input Sources
- Capability to create 8 virtual cameras
- Integrates Video Switching
| Weight | 15 kg |
|---|
Description
Click to rate this post!
[Total: 1 Average: 5]
DataVideo GO KMU-100 Studio 2 Input, 8 Virtual Camera Portable Video Production Studio
5 in 1 complete video production solution
DataVideo GO KMU-100 Supports switching, streaming, recording, audio mixing and monitoring.
Create up to 8 new HD video sources from two 4K cameras.
DataVideo GO KMU-100 Supports conversion from two 4K cameras (SDI or HDMI) to eight 3G-SDI video outputs, giving users more live video switching choices.
Seamlessly switch between 8 new HD video sources with only 2 cameras.
Create the look and feel of an 8-camera production using only 2 cameras. Users can view their original 4K footage on a preview monitor and create 8 new cropped HD video sources for easy and sophisticated switching.
Streaming to Facebook Live, YouTube, Twitch, and more
DataVideo GO KMU-100 With its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like Facebook, YouTube, Twitch in no time. You can also use Datavideo’s own DVS-200 streaming server software to send videos to multple destinations at the same time.
Related Product:
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| GO KMU-100 Studio 2-Camera 8-Shot Portable Video Production Studio | |
|---|---|
| Video Standard | UHD & HD |
| Video Format | 3840x2160p 23.98/24/25/29.97/30/50/59.94/60. 1080p 23.98/24/25/29.97/30 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 720p 50/59.94/60 |
| Video Processing | SDI: 4:2:2 HDMI: 4:2:0/4:2:2 |
| Video Input | 2 sets of SDI Input: each set of 4x SDI 1x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2 3x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:22x HDMI Input: each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2 2x 12G/6G/3G-SDI support 4K60 4:2:2 single link and quad link 2x HDMI 1.4b/2.0 support 4K60 4:2:0 / 4:2:2 |
| Video Output | 8x 3G/HD/SD-SDI support single link 4:2:2 2x HDMI 1.4 support 1080p/50/60 4:2:2 |
| Audio Input | 3x XLR(2 for Line-in, 1 for Mic-in), 2x RCA |
| Audio Output | 2x XLR, 2x Unbalanced RCA |
| Embedded Audio Support | SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD. HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K |
| Streaming Encode | H.264/AVC, Main/High Profile |
| Streaming Video Bitrate | Record Only: Up to 16Mbps (1080p50/60) Stream Only: Up to 10Mbps (1080p50/60) Rec+Stream: 10Mbps (1080p25/30) |
| Streaming Video Rate Mode | CBR |
| Streaming Audio Mode | Stereo/Mono |
| Streaming Audio Bitrate | Stereo: 64~384Kbps Mono: 32~192Kbps |
| Streaming Protocols | TS over TCP/UDP (unicast & multicase) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS |
| Streaming Storage | SD Card |
| Recording Storage Medium | SD Card |
| How to Retrieve Recorded Content | Removable Hard Drive, transfer data via USB 2.0 |
| Recording Storage File System | NTFS, FAT, exFAT |
| Recorded File Format | MP4 |
| Audio Indicator | SMT LCD |
| Audio Delay | Up to 700ms |
| Dimension (LxWxH) | 493 x 253 x 331 (monitor’s up) 493 x 253 x 190 (monitor’s down) |
| Weight | 14 kg |
| Power | DC 12V, 60W |
| Operating Temp. Range | 0~40 ?C |
| Special Features | Seamless Cut |
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- 1 x GO KMU-100 Studio Product
- 1 x RMC-185 Product
- 1 x AD Switch DC 12V
- 2 x HDMI Cable
- 3 x BNC Cable
- 2 x RCA Cable
- 1 x Ethernet Cable
- 1 x RS-422 D Sub 9Pin to RJ-45 Adapter Cab1e
- 12 x Cable Ties
