Magewell Pro Capture Quad HDMI Four-Channel HD Capture Card
SGD 1,385.86 excl. Tax
| Weight | 2.99 kg |
|---|
Description

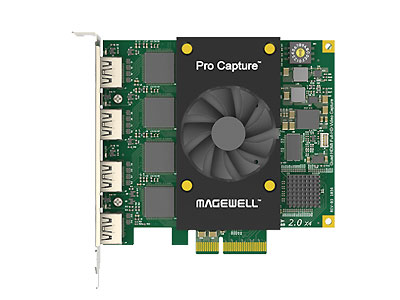

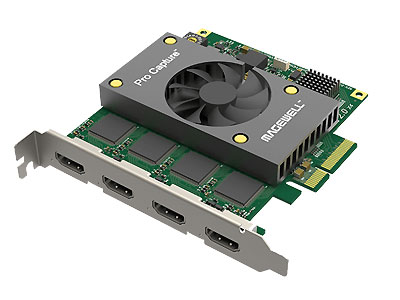

Magewell Pro Capture Quad HDMI High-Resolution 4-Input HDMI Capture Card for Broadcast & Streaming
The Magewell Pro Capture Quad HDMI is a standard-profile PCIe 2.0 capture card designed to input four simultaneous HDMI sources into a computer. It supports 10-bit video processing, multiple color sampling formats, and captures up to eight audio channels per input at 48 kHz. The card handles resolutions up to 2048 x 2160 with frame rates as high as 144 fps.
Advanced onboard video processing capabilities include cropping, scaling, deinterlacing, aspect ratio and color format conversion, frame rate conversion, and on-screen display composition. The card enables the use of multiple cards in a single system and supports multiple simultaneous capture streams, each with independently configurable settings.
It is compatible with Magewell’s Capture Express software and supports Windows, Linux, and macOS platforms. Multiple Windows and Linux APIs are available, along with Windows SDKs for seamless application integration.
View more Open Gear Capture Card Products
Specifications
| Pro Capture Quad HDMI Specifications | |
| Supported OS | Windows
Mac
* More on the way with the upcoming support for macOS 14.x. |
| Recommended OS (tested) | Windows
Linux
Mac
|
| Supported APIs | Windows
Linux
macOS
|
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software |
| Input Interfaces | 4x HDMI type A
|
| Host Interface | PCIe Gen2 x4 |
| Input Features | Support for input video resolutions up to 2048×2160 pixels |
| HDMI Specific Features |
|
| Video Capture Formats |
|
| Video Processing Features | Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing
Video aspect ratio conversion
Video color format conversion
Video frame rate conversion
|
| Multiple Cards per System | Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture Quad HDMI” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream |
| Ultra Low Latency Support | Latency of 64 video lines Partial notification mode in SDK |
| Timestamp & A/V Synchronization | Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | ~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | Status LEDs indicate the working state of each channel:
|
| Form Factor | Normal profile PCIe x4 Add-on Card 112.15mm x 102.92mm (without PCI bracket) |
| Power Consumption | Max current at 12V: ~ 0.86 A Max current at 3.3V: ~ 0.95 A Max power consumption: ~ 15.39 W |
| Working Environment | Operating temperature: 0 to 60 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
In The Box
- Magewell Pro Capture Quad HDMI Capture Card
