OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera
SGD 1,594.67 excl. Tax
Product Highlights:
- AI Tracking 2.0
- World’s First PTZR Camera: Hands-Free 90° Rotation
- High Resolution up to 4K@60fps & 1080P@120fps
- 12 Optical Lenses & 1/1.5″ CMOS
- 5x Optical Zoom & 12x Hybrid Zoom
- Wide Connections Including NDI, SDI, HDMI, Ethernet and More
- More Features in OBSBOT Software Suite
Weight | 2.5 kg |
---|---|
color | , , |
OBSBOT Tail 2 PTZR 4K Live Production Camera
AI Tracking 2.0
OBSBOT Tail 2 arrives with an upgraded deep neural network algorithm that enhances its intelligence in body shape detection and expands its capabilities — It can now track over 30 types of animals and 200 different objects.
Hands-Free 90° Rotation
Rotate itself Absolutely. Now with the Rotation axis, you can switch between portrait and landscape modes without manual adjustments. Our Auto Leveling System also acts behind the scenes, ensuring every shot is perfectly steady and professional.

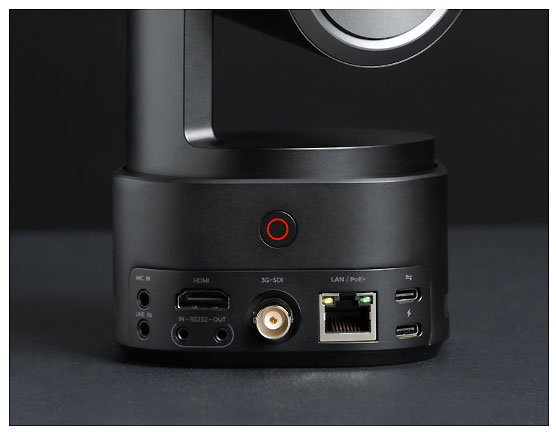

Full Port Lineup, Always ON
Tail 2 offers a robust array of connections—NDI, SDI, HDMI, USB 3.0, Ethernet, and RS-232—ensuring easy integration and peak performance in diverse production environments.
See It All, Smoothly
Capture in unmatched clarity and smoothness. OBSBOT Tail 2 not only delivers stunningly clear 4K footage at 60fps but also allows for creative post-production with 1080P@120fps raw video.
12x Closer, 100% Clearer
Bring your subjects closer than ever with our camera’s dynamic zoom options: enjoy 5x optical zoom and 12x hybrid zoom for all-encompassing captured.
Distraction Gone, Focus Remains on You
The new Only Me mode ensures your selected subject stays tracked continuously, even when briefly obscured by similar obstructions. As soon as they’re back in view, Tail 2 instantly resumes seamless tracking.
Auto Zoom to the Exact Level
Zoom automatically with precision across a range from 3x to 24x using Tail 2’s AI Auto Framing feature. Compose your shots from 3x for intimate close-ups to 24x for distant landscapes.
Track at Your Speed
Faster or slower, the choice is yours. OBSBOT Tail 2’s tracking speed control feature lets you determine the camera’s tracking speed based on the movements you capture.
Stay in Frame, All Together
With Group Tracking mode, Tail 2 frames everyone perfectly and adapts in real-time, ensuring that no one gets missed.
Every Frame, Exactly as Seen
Designed with 12 optics lenses and a significant 1/1.5″ CMOS sensor for wider brightness capture and reduced chromatic aberrations. Whether in bright or low light, expect flawless image quality and color precision.
Night’s Detail, Brought to Light
2μm pixel size sensor, combined with our exclusive AI noise reduction algorithm and AI-powered Image Signal Processor technology, Tail 2 adapts seamlessly to various low-light environments. From vibrant nightscapes to breathtaking sunset scenes, it captures every nuance with exceptional clarity and detail.
Easy Connection with NDI
NDI Ready. Set up multicam live streaming easily via wired or wireless NDI connections and enjoy seamless real-time video transmission.
Beyond Reality, Beyond Expectation
Seamlessly merge reality and imagination with Tail 2’s FreeD compatibility. Create stunning virtual productions, blending live footage with immersive virtual sets and AR graphics. Expand your creative canvas while shrinking production costs and timelines.
More Features Await in OBSBOT Software Suite
Unlock the full potential of the Tail 2 with OBSBOT’s powerful software suite. Enjoy a seamless console experience with Obsbot Start, effortlessly swtich between multiple cameras using Obsbot Live, or transform it into a top-tier webcam with OBSBOT Center.

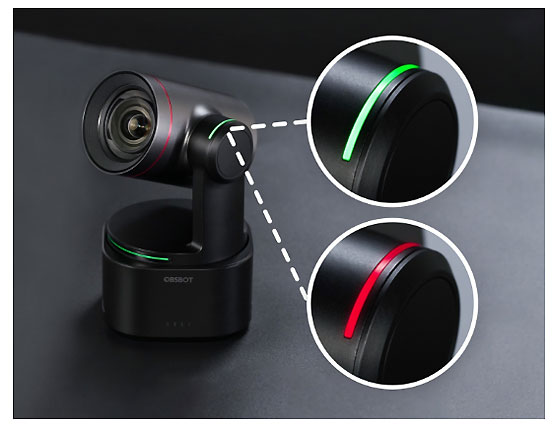

See the Light, Get It Right
Green for ready, red for air—our tally light makes production statuses evident, ensuring a smooth workflow every time.
To view more OBSBOT Products
Related Products:
Other Site:
OBSBOT Tail 2 4K AI PTZ Camera for Live Streaming & Video Production
Parameters | Tail 2 | Tail Air |
Weight | 1066g | 344.5g |
Size | Power On: 97.5*103.5*155mm Power Off: 97.5*103.5*172mm |
Power On: 69.65*73.25*132.5mm Power Off: 69.65*73.25*135.5mm |
Axis | PTZR | PTZ |
Camera | ||
Image Sensor | 1/1.5” CMOS | 1/1.8” CMOS |
Resolution & Frame Rate | Up to 4K@60fps/1080p@120fps | Up to 4K@30fps/1080p@60fps |
Zoom | Hybrid Zoom: 12x | Digital Zoom: 4x |
Field of View | W (1x) : FOV (D): 89°; FOV (H): 81° T (5x) : FOV (D): 21°; FOV (H): 18° |
FOV (D): 85° FOV (H): 77.3° |
Effective Pixels | 50M | 8.4M |
Focus | All Pixel PDAF | ToF |
Aperture | ƒ/1.8-ƒ/3.0 | ƒ/1.8 |
ISO Range | 100-6400 | 100-6400 |
HDR | ✓ | ✓ |
Night Mode | ✓ | × |
AI Features | ||
AI Tracking | AI Tracking 2.0 | AI Tracking |
Human Tracking | ✓ | ✓ |
Only Me | ✓ | × |
Group Tracking | ✓ | × |
Animal Tracking | ✓ | ✓ |
Object Tracking | ✓ | ✓ |
Zone Tracking | ✓ | × |
Gesture Control | ✓ | ✓ |
Battery | ||
Battery Capacity | 5000mAh | 1500mAh |
Operating Time | 343 mins | 154 mins |
Charge Time | 150 mins | 90 mins |
Interfaces | ||
SDI | 3G-SDI | × |
HDMI | HDMI 2.0 | Micro HDMI |
Ethernet | ✓ | × |
RS232 | ✓ | × |
Audio | ||
Audio Input | MIC IN Jack LINE IN Jack |
Built-in Two MEMS Microphones Built-in 3.5mm TRS Connector (AUX) Support MIC IN/LINE IN |
Software Compatibility | ||
Software Compatibility | OBSBOT Center, Obsbot Start, Obsbot Live | OBSBOT Center, Obsbot Start, Obsbot Live |
Size & Weight | |
Working State: | 97.5*103.5*155mm |
Off State: | 97.5*103.5*172mm |
Weight: | 1.066kg |
AI chip | Integrated AI chip, Trillions of calculations per second |
Camera | |
Image Sensor: | 1/1.5” CMOS |
Pixel Size: | 2.0μm*2.0μm |
Effective Pixels: | 50 million |
Effective Pixel Resolution: | 8192×6144 |
Lens System: | 12x Optical Lenses |
Zoom Range: | 5x Optical Zoom |
12x Hybrid Zoom | |
Aperture: | f/1.8-f/3.0 |
Focus: | Auto Focus |
Manual Focus | |
Equivalent Focal Length: | 22mm-110mm |
Field of View: | W (1x) : FOV (D): 89°; FOV (H): 81° |
T (5x) : FOV (D): 21°; FOV (H): 18° | |
ISO Range: | 100-12800 |
Exposure Value: | ±3EV |
Electronic Shutter Speed: | 1/8000 s to the limit of frames per second |
White Balance: | 2000K-10000K |
Gyroscope: | 6-axis Gyroscope |
Photo Resolution: | 4K, 1080P, 720P |
Resolution and Frame Rate: | |
Recording | |
4K: | 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps |
1080p: | 1920*1080@120/60/59.94/50/48/30/29.97/25/23.98 fps |
720p: | 1280*720@120/60/59.94/50/48/30/29.97/25/23.98 fps |
HDMI | |
4K: | 3840*2160@60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps |
1080p: | 1920*1080@60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps |
1080p: | 1920*1080i@60/59.94/50 fps |
720p: | 1280*720@60/59.94/50 fps |
SDI | |
1080p: | 1920*1080@60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps |
1080p: | 1920*1080i@60/59.94/50 fps |
1080p: | 1920*1080PsF@30/29.97/25 fps |
720p: | 1280*720@60/59.94/50 fps |
Max Video Storage Bitrate: | H264:160Mbps,H265:160Mbps |
Supported File System: | FAT32、exFAT |
Video Format: | MJPEG, H264, H265 |
3-axis gimbal | |
Gimbal installation: | Non-removable |
Controllable Range: | Pan: ±160° |
Tilt: -60°~32° | |
Roll: -120°~120° | |
Mechanical Range: | Pan: ±175° |
Tilt: ±90° | |
Roll:-135°~135° | |
Max Controllable Speed: | 120°/s |
Angle Jitter: | ±0.003° |
Wi-Fi | |
Standard: | Wi-Fi 6 |
Wi-Fi Operating Frequency: | 2.4 G/5.8 GHz |
Wi-Fi Signal Transmission Range: | 2.4G 140m , 5.8G 80m |
Wi-Fi Protocol: | 802.11 a/b/g/n/ac/ax |
Bluetooth | |
Bluetooth Protocol: | BLE 5.4 |
Bluetooth Operation Frequency Range: | 2.400 GHz to 2.4835 GHz |
I/O Interface | |
Power Input: | USB-C: Default 5V/2A, supports USB PD3.0 fast charging protocol standard |
Maximum input voltage 20V, maximum input current 2A | |
(Recommended to use a charger that supports USB PD3.0 standard to ensure proper charging) | |
PoE+: IEEE 802.3 af/at, maximum supported input power 30W | |
Video Interface: | 1* HDMI 2.0、1* 3G-SDI、1* USB-C 3.0 |
Network Interface: | 1* RJ45 10/100/1000Mbps Ethernet port (with PoE+) |
Audio Interface: | 1* MIC IN (3.5mm audio interface)、1* LINE IN (3.5mm audio interface ) |
Control Interface: | 1* 2.5mm RS232 input, Protocol: VISCA / Pelco-D / Pelco-P |
1* 2.5mm RS232 output, Protocol: VISCA / Pelco-D / Pelco-P | |
1* USB-C 3.0, Protocol: UVC | |
Battery | |
Battery Type: | Lithium Polymer(Li-po) |
Battery Capacity: | 5000mAh |
Battery Energy: | 38Wh |
Battery Voltage: | 7.6V |
Operating Time: | 343 minutes |
Measured during continuous 1080p/30fps video recording under laboratory conditions, values are for reference only | |
Charging Time: | 150 Mins (When powered off) |
Auxiliary Functions | Gesture Control |
Auxiliary Software | Obsbot Start |
OBSBOT Center | |
Obsbot Live | |
Memory card type | MicroSD (Maximum Support: 1TB) |
Operating environment | Camera working environment temperature: -10°C-40°C |
Battery charging ambient temperature: -10°C-40°C | |
Battery operating ambient temperature: -10°C-40°C | |
Charging will stop when the battery temperature exceeds 45°C. | |
For example, when connected to an external power supply, if the battery temperature exceeds 45°C, | |
the camera will stop charging and will be powered directly from the external power supply. |
- 1 * OBSBOT Tail 2
- 1 * USB-C 3.0 Cable
- 1 * USB-C to USB-A 3.0 Adapter
- 1 * USB-C Power Cable
- 2 * 2.5mm Male to RS232 MD8 Female Serial Cable
