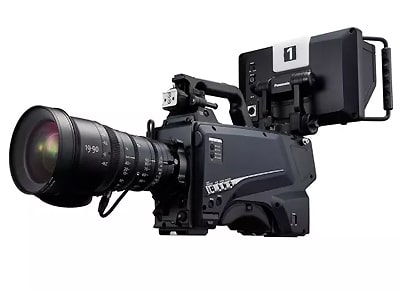

Panasonic AK-PLV100 4K CineLive Studio Camera with PL Mount
The AK-PLV100 4K PL-mount studio camera carries on the legacy of VariCam with a cinematic look, V-LOG and Dual Native ISO, and streamlines multicamera live shooting to deliver another purpose built studio camera for easy CINELIVE production.
| Weight | 12 kg |
|---|
Description
Click to rate this post!
[Total: 2 Average: 5]
Panasonic AK-PLV100 4K PL-mount Studio Camera for Live Cinematic Video with Shallow Depth of Field
The Panasonic AK-PLV100 comes with a 5.7K Super 35mm Large format sensor and PL mount to produce cinematic video with bokeh effects. Combining the visual beauty of a cinema camera with the operability of a studio cameras, the AK-PLV100 achieves live video for events and sports with rich visual expression that grabs viewers attention.
- Dual Native ISO for high sensitivity and low noise.
- Simultaneous HLG/ITU-R BT.2020 (4K mode) and SDR/ITU-R BT.709 (HD mode).
- V-LOG output for wide dynamic range and rich color gamut.
Simple Operation without CCU
Normally, live production with a cinema camera requires the use of many external devices, but with the AK-PLV100GSJ, only the camera is needed to build a system. The AK-PLV100GSJ outputs SMPTE ST2110 video directly from its camera head and merely requires an optical-fiber connection for return input, intercom input/output, PTP synchronization, trunk out, and tally input.
Input/output method for camera head alone
- HD mode: Uncompressed SMPTE ST2110 input/output standard.
- 4K mode: SMPTE ST2110 output with JPEG-XS compression standard.
- 12G-SDI output standard.
Compatible with 2/3-inch Studio Camera Equipment
Compatibility with Panasonic’s 2/3-inch studio camera system equipment allows the use of CCUs, ROPs and other accessories. Under this new concept for live production, the camera head is selected according to the desired expression.
Features:
- Equipped with a 5.7K Super 35mm Large format sensor and PL Lens mount to accommodate cinema lenses for shallow-depth of field
- Capture frame rate is switchable to Cinematic 24p/30p on a 60p system, users can easily switch between a 24p/30p look and a standard broadcast 60p look
- Outputs SMPTE ST2110 video directly from its camera head and merely requires an optical-fiber connection for return input, intercom input/output, PTP synchronization, trunk out, and tally input
- Compatibility with Panasonic’s 2/3-inch studio cameras system equipment allows the use of CCUs (UCU600 and HCU250), ROPs (HRP1010 and HRP1015) and other accessories
- V-LOG output for wide dynamic range and rich color gamut, along with Dual Native ISO* for superb low-light performance
Panasonic Studio Camera Related Products:
AK-HC3900 4K Camera-HDR Studio Camera
Features
Click to rate this post!
[Total: 2 Average: 5]
- Compatibility with Panasonic’s 2/3-inch studio-camera system equipment allows the use of CCUs, ROPs and other accessories. Under this new concept for live production, the camera head is selected according to the desired expression.
- Capture frame rate is switchable to Cinematic 24p/30p on 60p system, so can easily switch between a 24p/30p look and a standard broadcast 60p look.
- Digital extender with signal-processing circuitry for 2x image magnification
- Remote switching of motorized ND filter
- Focus assist (Focus in Red/MAG/Focus Square) for fast, accurate focusing
- Fine adjustment of saturation and hue separately using 12-axis color correction and linear matrix
- Beautiful, natural-looking skin thanks to wrinkle and tone correction
- Shockless gain smooths out images during gain changes
Specifications
Click to rate this post!
[Total: 2 Average: 5]
- Weight: Approx. 4.2 kg (9.26 lbs.) (body only, excluding the accessories)
- Dimensions (W x H x D): Body only 151 mm x 267 mm x 389 mm (5-31/32 inches x 10-17/32 inches x 15-11/32 inches)
(excluding protrusions) - Operating temperature: -10 °C to 45 °C (14 °F to 113 °F)
(Preheating required under a temperature 0°C (32 °F) or below) - Operating humidity: 85% or less (relative humidity)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Power supply : DC 12 V (when using an external power supply)
DC 190 V (when AK-HCU250PSJ/HCU250ESJ is connected)
AC 240 V (when AK-UCU600PSJ/ UCU600ESJ is connected) - Pickup Device: S35mm 17.25 million pixels MOS Sensor
- Lens Mount: 35mm PL Mount
- Horizontal Resolution: 4K: 2000 TV lines (center)
- Optical Filter: ND: Clear, 1/4, 1/16, 1/64
- S/N: 62 dB or above
- Output Format : 3840×2160/59.94p/50p/29.97p/25p/23.98p
1920×1080/59.94p/50p/59.94i/50i/29.97p/29.97PsF/25p/25PsF/23.98p/23.98p over 59.94i
720/59.94p/50p - Terminal: 12G-SDI x 1, 3G-SDI x 1, AUX x 1, OPT (LEMO) x 1
