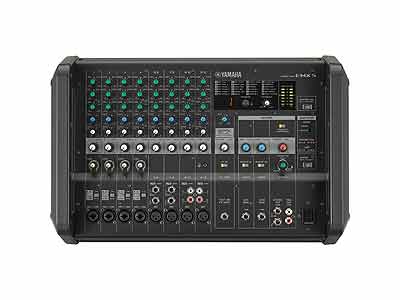

Yamaha EMX 5 12 Ch-Input Powered Mixer
Yamaha EMX5 is designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation and are ready to take their sound reinforcement to the next level. Yamaha EMX5 is a Box-type robust and portable powered mixer featuring a high-efficiency power amplifier of 630W and a mixer with comprehensive effects, 1-Knob Master EQ, and a built-in feedback suppressor.
Features:
- 2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
- 2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
- Powerful & High Efficiency Class-D Amplifier
- 12 Line Inputs (8 mono + 4 stereo)
- High-Z input (channel 4) to connect guitars or basses directly
- 1-Knob Master EQ™
- Onboard Feedback Suppressor
- Comprehensive, professional 24 different effects
- Metal chassis for extended operation and robustness
- Large handles for extreme portability and protection
- Universal power supply eliminates concern about power fluctuations
- Optional rack-mount kit available
To view more Yamaha Products
Related Products:
- Yamaha MG12XUK Mixing Console
- Yamaha MG12XU Mixing Console
- Yamaha MG12X Mixing Console
- Yamaha MG12 Channel Mixing Console
- Yamaha MG10XUF Mixing Console
- Yamaha MG10 Mixing Console
- Yamaha MG06 Mixing Console
- Yamaha EMX7 Powered Mixer
- Yamaha MGP32X Mixing Console
- Yamaha MGP24X Mixing Console
- Yamaha MG20XU Mixing Console
- Yamaha MG20 Mixing Console
- Yamaha MG16XU Mixing Console
- Yamaha MG16X CV Mixing Console
- Yamaha MG16 Channel Mixing Console – MG16
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| EMX5 | ||
| Outline | ||
| I/O | Inputs | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
| Phantom power | +48 V | |
| Outputs | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] | |
| Control and others | FOOT SWITCH: Effect Mute on/off | |
| Bus | Stereo: 1, AUX: 2 (Including FX) | |
| Input Channel Function | PAD | 30 dB (CH1-4) |
| Hi-Z | Supported (CH4) | |
| HPF | 80 Hz, -12 dB/oct. (CH1–3) | |
| COMP | 1-knob COMP (CH1–4) | |
| EQ HIGH | 10 kHz +15 dB / -15 dB (Shelving) | |
| EQ MID | 2.5 kHz +15 dB / -15 dB (Peaking) | |
| EQ LOW | 100 Hz +15 dB / -15 dB (Shelving) | |
| On-board processors | DSP | SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ |
| On-board amplifiers | Maximum output power @4ohms | 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W |
| Maximum output power @8ohms | 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W | |
| Level Meter | 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK) | |
| General specifications | ||
| Frequency response | Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz | |
| Total harmonic distortion | Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) | |
| Hum & noise level | Equivalent input noise | -117 dBu (Noise is measured with A-weighting filter) |
| Residual output noise | Input to SPEAKERS: -66 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND: -80dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) | |
| Crosstalk | -85 dB (1 kHz, Measured with 1 kHz band pass filter) | |
| Protection circuit | Load protection | DC-fault |
| Amplifier protection | Over heat protection, Over current protection, Integral power protection | |
| Power supply protection | Over heat protection, Over current protection | |
| Power requirements | AC 100-240V, 50Hz/60Hz | |
| Power consumption | 42 W (Idle) / 210 W (1/8 Power) | |
| Dimensions | W | 465 mm (18 5/16″) |
| H | 308 mm (12 1/8″) | |
| D | 325 mm (12 13/16″) | |
| Net weight | 9.5 kg (20.9 lbs) | |
| Accessories | Owner’s Manual, Technical Specifications, AC power cord (2.5 m) | |
| Options | Footswitch: FC5, Rack-mount brackets: RK-EMX7 | |
| Others | Operating Temperature : 0 to +40℃ | |
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- Owner’s Manual
- Technical Specifications
- AC power cord(2.5 m)
