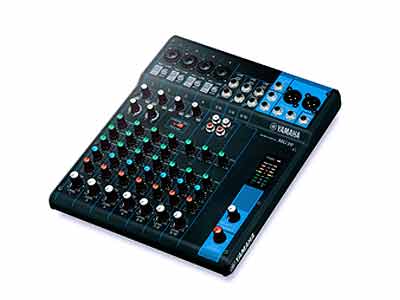

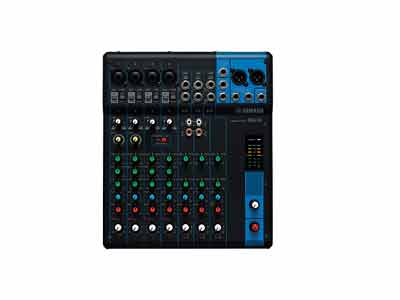

Yamaha MG 10-Channel Mixing Console
MG Series embodies this pursuit of design excellence and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and rugged, reliable construction. Yamaha MG Series mixing consoles feature Yamaha’s studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Yamaha MG10 is a 10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX.
Yamaha MG10 Features:
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX
- ?D-PRE? mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- Dimensions(W?H?D): 244 mm x 71 mm x 294 mm (9.6″x 2.8″x 11.6″)
- Net Weight: 1.9 kg (4.19 lbs.)
To view more Yamaha Products
Related Products:
- Yamaha MG12XUK Mixing Console
- Yamaha MG12XU Mixing Console
- Yamaha MG12X Mixing Console
- Yamaha MG12 Channel Mixing Console
- Yamaha MG10XUF Mixing Console
- Yamaha MG06 Mixing Console
- Yamaha EMX7 Powered Mixer
- Yamaha EMX5 Powered Mixer
- Yamaha MGP32X Mixing Console
- Yamaha MGP24X Mixing Console
- Yamaha MG20XU Mixing Console
- Yamaha MG20 Mixing Console
- Yamaha MG16XU Mixing Console
- Yamaha MG16X CV Mixing Console
- Yamaha MG16 Channel Mixing Console ? MG16
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| I/O | Phantom power | +48 V |
|---|---|---|
| Input Channels | Mono[MIC/LINE] | 4 |
|
Mono/Stereo[MIC/LINE]
|
– | |
|
Stereo[LINE]
|
3 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| PHONES | 1 | |
| AUX SEND | 1 | |
| GROUP OUT | – | |
| Bus | Stereo: 1, AUX: 1 | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/Oct (Mono) | |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | |
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | |
| Crosstalk | -83 dB | |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | |
| Power consumption | 22.9 W | |
| Dimensions | W | 244 mm (9.6″) |
| H | 71 mm (2.8″) | |
| D | 294 mm (11.6″) | |
| Net weight | 1.9 kg (4.19 lbs.) | |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A | |
| Others | Operating Temperature: 0 to +40˚C | |
- 0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
- All level controls are nominal if not specified.
- Hum & noise level: Noise is measured with an A-weighting filter.
- Crosstalk： Measured with 1 kHz band pass filter.
