AJA IPT-1G-HDMI Video and Audio Converter

USD 975.00 excl. Tax

Weight 2 kg
SKU: IPT-1G-HDMI Category:
Description
Click to rate this post!
[Total: 1 Average: 5]

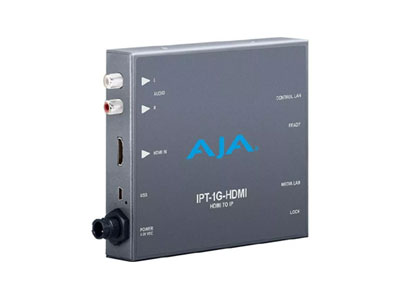

AJA IPT-1G-HDMI HDMI to JPEG 2000 IP Video and Audio Converter

Bridging from HDMI Video and Audio to TR-01 Compliant JPEG 2000 over IP, the AJA IPT-1G-HDMI is a 3G-SDI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from HDMI-based cameras, routers, and digital recorders and players and distribution across an IP network for feeding to IPR-1G-SDI, IPR-1G-HDMI, or KONA IP receivers.

IPT-1G-HDMI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates.

  • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
  • Web and REST clients supported
  • 1x USB 2.0 Mini-B connector
  • AJA eMini-Setup software setup of network parameters

User Control

The IPT-1G-HDMI is an HDMI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from HDMI-based cameras, routers, and digital recorders and players and distribution across an IP network for feeding to IPR-1G-SDI, IPR-G-HDMI, or KONA IP receivers.

  • Full-size HDMI 1.4 video input
  • 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media output
  • Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
  • Rugged, fanless, portable design
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
  • Quick network setup with AJA eMini-Setup software

To view more AJA Products

Related Product:

AJA IPT-1G-SDI Video and Audio Mini-Converter

Converter Types

Specifications
Click to rate this post!
[Total: 1 Average: 5]
Video Formats
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
Video Input Digital
  • 1 x HDMI Standard Type A connector
    • HDMI v1.4a 24/30 bits per pixel, RGB/YUV
Audio Input Digital 2-Channel HDMI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Input Analog
  • 2 x RCA analog audio (2-Channel)
    • Levels at -10 dBu (nominal)
Essence Output
  • 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
  • VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows
User Controls
  • 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
    • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
    • Web and REST clients supported
  • 1 x USB 2.0 Mini-B (IEC 62680-1) connector
    • AJA eMini-Setup of network parameters
Size (w x d x h) 5.53 x 4.48 x 0.954 (140.46 x 113.79 x 24.23 mm)
Weight 0.6 lb (0.3 kg)
Power
  • Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz Universal input
  • +5 to 20V DC regulated, 12 watts max
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
