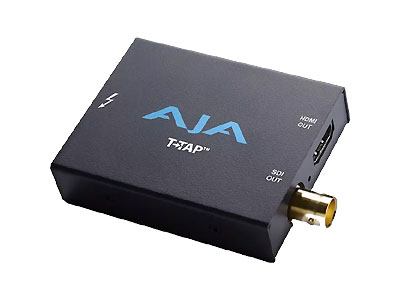

AJA T-TAP-R0 10-bit HD/SD SDI + HDMI Output With Embedded Audio

Get 10-bit SD, HD, and 2K output from any Thunderbolt-enabled Mac or PC. 10-bit, SD, HD, and 2K output

The AJA T-TAP provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt to deliver high-quality 10-bit SD, HD, and 2K video and embedded audio output from any compatible Mac or PC.

Thunderbolt connectivity

Simple to set up and use, T-TAP connects to your Mac or PC via the blazing-fast Thunderbolt connection, which provides the bandwidth necessary for full broadcast-quality video and audio output.

Because T-TAP is powered via the Thunderbolt connection, there’s no need for an additional power supply, minimizing cabling and maximizing portability.

Compact power

Smaller than a deck of playing cards, T-TAP offers broadcast-quality performance you can fit in the palm of your hand.

3D support

With full 3D support, T-TAP can output directly from the HDMI output to 3D HDMI monitors for stereoscopic review, without the need for any additional hardware.

Professional outputs

T-TAP features HD/SD SDI and HDMI outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer gear.

Embedded audio

It may be compact, but T-TAP doesn’t compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1- or even 7.1 mixes.

To view more AJA Products

Converter Types

Specifications

Click to rate this post!

[Total: 1 Average: 5]

Video Formats	(2K) 2048 x 1080PsF 23.98, 24, 25 (4:2:2) (2K) 2048 x 1080p 23.98, 24, 25 (4:2:2) (HD) 1080i 50, 59.94, 60 (HD) 1080PsF 23.98, 24 (HD) 1080p 23.98, 24, 25, 29.97, 30 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 Note: High frame rate and 4K/UltraHD capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.• Operating Altitude: <3,000 meters (<10,000 feet)
Video Output Digital	1.5G-SDI, SMPTE 292M Single Link HD-SDI YCbCr 4:2:2 10-bit 270 Mbps SDI, SMPTE 259M-C YCbCr 4:2:2 10-bit, 8-bit HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD *Bit-depth support is application-dependent. Check with your software manufacturer for compatibility.
Audio Outputs Digital	8-channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Size (w x d x h)	2.95″ x 0.7″ x 2.28″ (74.93 x 17.78 x 57.92 mm)
Weight	0.2 lb (0.1 kg)
Power	5V Thunderbolt bus powered; 6.5W max
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
