Blackmagic ATEM Television Studio HD8 Live Production Switcher
USD 2,860.00 excl. Tax
Product Highlights:
- All-in-one switcher and control panel design.
- Supports connecting up to 8 x SDI cameras.
- A wide range of professional video effects are included.
- Internal media for stills and motion graphics.
| Weight | 16 kg |
|---|
Description
Click to rate this post!
[Total: 5 Average: 5]
Blackmagic ATEM Television Studio HD8 High Advanced Live Production Switcher with a built-in broadcast panel
The Blackmagic ATEM Television Studio HD8 is a powerhouse in the world of live production, combining advanced features with a compact design. This versatile switcher is equipped with a built-in broadcast control panel, providing easy access to its extensive capabilities without the need for additional equipment.
One of its standout features is the provision of 8 standards-converted 3G-SDI inputs, allowing seamless integration of various video sources. Whether it’s cameras, playback devices, or computers, the ATEM Television Studio HD8 ensures flexibility in setting up live productions.
Streaming is made effortless with its built-in functionality, enabling direct broadcasting to online platforms without the hassle of external hardware or software. This streamlined approach simplifies the setup process and facilitates the smooth online distribution of live content.
For capturing live productions, the ATEM Television Studio HD8 comes equipped with a master recorder, ensuring that valuable content is preserved for future editing or archival purposes.
Monitoring and managing live productions are made easy with the multiview function, which provides operators with a comprehensive view of all connected video sources, as well as preview and program outputs.
Incorporating additional video sources, such as USB webcams, is seamless with the ATEM Television Studio HD8, enhancing the production’s versatility and allowing for dynamic content integration.
Dynamic transitions and effects are at the fingertips of users thanks to the digital video effects (DVE) processor, adding visual flair to live broadcasts.
The switcher’s four ATEM Advanced Chroma Keyers provide precise green screen keying capabilities, enabling seamless integration of virtual sets or overlay graphics onto live video footage.
Built-in media players cater to playback needs, while talkback functionality facilitates communication between production crew members. Additionally, a four-way Ethernet switch ensures robust network connectivity.
For added convenience, the ATEM Television Studio HD8 offers optional internal cloud media storage, enabling easy access and management of media assets directly from the device.
The Blackmagic ATEM Television Studio HD8 finds application in a variety of professional live production scenarios due to its versatile features and robust capabilities.
Broadcasting Studios: The ATEM Television Studio HD8 is ideal for traditional broadcasting studios, providing seamless integration of multiple video sources, precise control over transitions and effects, and efficient monitoring tools for live broadcasts.

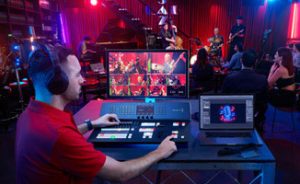

Live Events: Whether it’s concerts, conferences, sports events, or awards ceremonies, the ATEM Television Studio HD8 facilitates the production of high-quality live streams with its ability to handle multiple camera feeds, incorporate graphics and overlays, and stream directly to online platforms.
Educational Institutions: Educational institutions can utilize the ATEM Television Studio HD8 for live-streaming lectures, seminars, or workshops, offering remote access to students and facilitating interactive learning experiences.
Corporate Events: Companies can leverage the ATEM Television Studio HD8 for corporate events such as product launches, shareholder meetings, or employee training sessions, ensuring professional-grade live production with dynamic visuals and seamless streaming capabilities.
Churches and Houses of Worship: The ATEM Television Studio HD8 is often employed in churches and houses of worship for live streaming of religious services, sermons, or community events, enhancing engagement and outreach to remote audiences.
Content Creation: Content creators, including YouTubers, vloggers, and social media influencers, can utilize the ATEM Television Studio HD8 to produce professional live streams with multiple camera angles, graphics overlays, and dynamic effects, enhancing the quality and production value of their content.
Live Gaming Events: Gaming tournaments, e-sports events, and live gaming streams can benefit from the ATEM Television Studio HD8’s capabilities to switch between different gaming feeds, incorporate player cameras, and add overlays for commentary and branding.
Virtual Events and Webinars: With the increasing trend of virtual events and webinars, the ATEM Television Studio HD8 serves as a reliable solution for producing engaging and interactive online events, offering multi-camera setups, graphics integration, and smooth streaming to virtual attendees.
In summary, the Blackmagic ATEM Television Studio HD8 is a comprehensive solution for professional live production needs. Its compact design belies its extensive capabilities, making it an indispensable tool for broadcasters, event organizers, and content creators seeking high-quality results in a streamlined package.
To view more Blackmagic Products
ATEM Family products:
- ATEM Mini Pro Multicamera Live Production Switcher
- ATEM Mini Pro ISO Live Production Switcher
- ATEM Mini Extreme Live Production Switcher
- ATEM Mini Extreme ISO Live Production Switcher
- ATEM Streaming Bridge Switcher and Converter
Read Our Blog:
Blackmagic ATEM Switcher Lineup: A Guide to Live Production Solutions
Other Site:
Blackmagic ATEM Television Studio HD8 Live Production Switcher for Broadcast Studios
Created by Sankari 01 Mar 23
Add-R-Ind-06.12.23
Indhu UC added on 28 May 24
Specifications
Click to rate this post!
[Total: 5 Average: 5]
| Connections | |
| SDI Video Inputs | 8 |
| SDI Video Outputs | 12 |
| SDI Rates | 1.5G, 3G |
| HDMI Video Outputs | 1 |
| Total Audio Inputs | 2 x XLR balanced analog audio, |
| 1 x BNC 32 Ch MADI digital audio, | |
| 2 x RCA stereo analog audio, | |
| 1 x 5 pin XLR Talkback. | |
| Total Audio Outputs | 4 x 1/4 inch Jack analog audio, |
| 1 x BNC 64 Ch MADI digital audio, up to 50 active, | |
| 1 x 5 pin XLR Talkback. | |
| SDI Audio Inputs | 4 Ch embedded audio on all SDI inputs. |
| SDI Audio Outputs | 2 Ch embedded audio on all SDI outputs. |
| Timecode Connections | 1 x BNC In, 1 x BNC Out. |
| Reference Input | 1 x BNC In, 1 x BNC Out. |
| Tri-Sync or Black Burst. | |
| Video Input Re-Sync | On all 8 inputs. |
| Frame Rate and Format Converters | On all 8 inputs. |
| SDI Aux Outputs | 2 |
| SDI Program Outputs | 1 |
| Webcam Output | 2 x USB-C supporting 720p or 1080p at PGM frame rate. |
| Total Multi Views | 1 x 3G-SDI |
| 1 x HDMI | |
| Remote | RJ12 supports RS-422 |
| Control Panel Connection | Ethernet. Direct connection between panel and chassis, or via network. |
| Internal Timecode Generator | Yes |
| Talkback | RJ45 for 3rd party talkback systems. |
| Tally Output | Added via ethernet connection to Blackmagic |
| Design GPI and Tally Interface product. (Not included). | |
| Ethernet | 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. |
| Computer Interface | 2 x USB-C supports USB 2.0 for external drive recording |
| webcam out, software control, software updates and switcher connection. | |
| Standards | |
| SD Video Standards | None |
| HD Video Input Standards | 720p50, 720p59.94, 720p60 |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | |
| SDI Compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit. |
| Color Space | REC 709 |
| SDI Auto Switching | Automatically detects between 1.5G-SDI and level A or level B 3G-SDI. |
| Product Specifics | |
| Upstream Keyers | 4 |
| Downstream Keyers | 2 |
| Advanced Chroma Keyers | 4 |
| SuperSource | 1 |
| Linear/Luma Keyers | 7 |
| Transition Keyer (Stinger/DVE) | 1 Stinger, 1 DVE. |
| Total Number of Layers | 8 |
| Pattern Generators | 7 |
| Color Generators | 2 |
| Control Panel | Integrated panel with full control of switching and settings. |
| Routable Windows | 16 |
| Windows Source Labels | Yes |
| Tally | Red for program and green for preview indication. |
| Talkback Support | Yes |
| Mix Minus Support | Yes |
| Streaming | |
| Direct Streaming | Supports direct live streaming using Real Time Messaging Protocol |
| (RTMP) over ethernet or a shared internet connection over USB‑C. | |
| Recording | |
| Direct Recording Video and Audio | USB-C expansion port can record directly to external media. |
| Video Recording | Program recorded as a H.264 .mp4 file at the |
| streaming quality setting and at the ATEM video standard with AAC audio. | |
| Media Format | Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac). |
| Multi View Monitoring | |
| Multi View Monitoring | 1 x multi view via SDI and HDMI configurable to 16, 13 |
| 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players | |
| DSKs, SuperSource, Clean Feed with optional labels and audio meters. | |
| Multi View Video Standard | HD |
| Display Minimum Resolution | 1366 x 768 |
| Media Player | |
| Media Players | 2 |
| Channels | Fill and key for each media player. |
| Media Pool Still Image Capacity | 20 |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Media Pool Clip Capacity | 2 x up to 1080p60. |
| Media Player Clip Length in 720 HD | 400 frames. |
| Media Player Clip Length in 1080 HD | 200 frames. |
| Media Pool Video File Format | TGA sequence. |
| Media Pool Audio File Format | WAV, MP3 and AIFF. |
| Processing | |
| Processing Delay | < 10 lines when genlocked and in the same format as the switcher. |
| Audio Mixer | 58 Channel mixer. |
| Selectable On/Off/Audio-Follow-Video. | |
| Level and Peak metering. | |
| Master gain control. | |
| 6 band parametric EQ, Dynamics including Expander | |
| Gate, Compressor and Limiter. | |
| Camera Control | When used with most Blackmagic Design cameras |
| ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain | |
| white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. | |
| Down Conversion | None |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 12.0 Monterey |
| Mac 13.0 Ventura or later. and Windows 10 or 11. | |
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS or Windows computers |
| Includes ATEM Setup Utility. | |
| Operating Systems | Mac 12.0 Monterey, |
| Mac 13.0 Ventura or later. | |
| Windows 10 and 11. | |
| Power Requirements | |
| Power Supply | 1 x Internal 100 – 240 AC 50/60Hz with IEC C14 socket. |
| 1 x 4 pin XLR 12V DC In for external power supply or battery use. | |
| Power Usage | 100 W max. |
| Physical | |
| Length | 23in |
| Width | 14.8in |
| Height | 6.35in |
| Physical Installation | |
| Physical Installation | Desktop or in-desk mount. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 12 Months Limited Manufacturer’s Warranty. |
In The Box
Click to rate this post!
[Total: 5 Average: 5]
- ATEM Television Studio HD8
- Welcome wallet with QR code for software download
Delivery Info
Click to rate this post!
[Total: 5 Average: 5]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Blackmagic ATEM Television Studio HD8 Live Production Switcher
Clear filtersOnly logged in customers who have purchased this product may leave a review.
You may also like…
USD 960.00 excl. Tax
USD 1,428.00 excl. Tax
USD 765.00 excl. Tax
USD 332.00 excl. Tax
USD 3,243.54 excl. Tax
USD 4,383.00 excl. Tax
USD 3,810.00 excl. Tax
Related products
USD 7,807.00 excl. Tax
USD 7,807.00 excl. Tax
USD 2,193.00 excl. Tax
Product Specialist –
Blackmagic ATEM Television Studio HD8 – Unleashing the Power of Live Production
The Blackmagic ATEM Television Studio HD8 is a game-changer for live production, offering an impressive range of features packed into a compact device. With its built-in broadcast control panel, this switcher is designed to deliver professional-level productions, making it a valuable asset for content creators, broadcasters, and live event producers.
Connections:
The device boasts a comprehensive set of connectivity options, including eight SDI video inputs, 12 SDI video outputs, HDMI video outputs, analog and digital audio inputs and outputs, timecode connections, and more. Its versatility ensures seamless integration with various devices and peripherals, making it a versatile hub for live production setups.
Standards:
Supporting a wide range of video input standards, the ATEM Television Studio HD8 caters to different production requirements. Whether it’s 720p, 1080i, or 1080p at various frame rates, this switcher ensures compatibility with industry standards, offering 4:2:2 video sampling, 10-bit color precision, and REC 709 color space.
Keyers and Effects:
The device comes equipped with powerful keyers, including upstream and downstream keyers, advanced chroma keyers, linear/luma keyers, and a transition keyer. The SuperSource feature allows for multi-layered video effects, while the linear/luma keyers provide flexibility in creating stunning visual effects. The inclusion of pattern generators and color generators further enhances creativity in live productions.
Control Panel and Routable Windows:
The integrated control panel provides an intuitive interface for easy switching and configuration. With 16 routable windows, users can display a variety of content sources, keeping track of each window’s content through Windows Source Labels. The tally system adds a professional touch, indicating which camera is currently on air, crucial for live events.
Streaming and Recording:
Direct streaming using RTMP and direct recording to external media via USB-C make the ATEM Television Studio HD8 a versatile tool for content creators. Whether it’s streaming live events or recording for post-production, this switcher simplifies the process, offering flexibility and convenience.
Multi-View Monitoring:
The multi-view feature allows users to monitor up to 16 sources simultaneously, offering flexibility in configuring the display. With support for various sources, including program, preview, inputs, and media players, users can efficiently manage their video sources with optional labels and audio meters.
Media Player and Audio Mixer:
The inclusion of two media players with fill and key channels enables the seamless integration of still images and video clips into live productions. The audio mixer, with its 58-channel capacity, provides extensive options for audio processing, ensuring a well-balanced and high-quality audio output.
Camera Control:
For users with compatible Blackmagic Design cameras, the ATEM Television Studio HD8 offers comprehensive camera control capabilities. From focus and iris to gain and white balance, this feature empowers users to fine-tune their camera settings directly from the switcher.
In conclusion, the Blackmagic ATEM Television Studio HD8 stands out as a powerhouse for live production, combining advanced features, extensive connectivity, and intuitive controls. Whether you’re a seasoned professional or a budding content creator, this switcher opens up a world of possibilities for creating captivating and professional-level productions.
