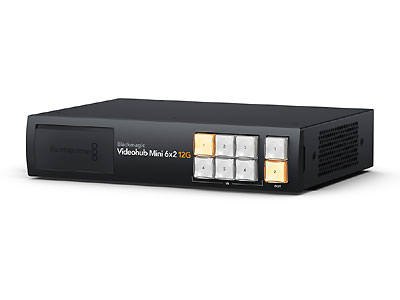

Blackmagic Videohub Mini 6×2 12G Compact Zero Latency Video Router

Connections:

• SDI Video Inputs: 6
  Front panel input overrides rear input 6
• SDI Video Outputs: 2
  Front panel output mirrors rear output 2
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• Video Input Re-Sync: On all 6 inputs for clean switch.
• SDI Reclocking: On all SDI outputs.
• Reference Inputs: Tri-Sync or Black Burst.
• Reference Outputs: Reference terminating loop output.
• Webcam Output: USB‑C
• Ethernet: Supports 10/100/1000 BASE‑T.
• Computer Interface: 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.

Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
  2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
• SDI Audio Sampling: Television standard sample rate of 48kHz and 24‑bit.
• SDI Video Sampling: YUV 4:2:2 and RGB 4:4:4
• SDI Color Precision: 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
• SDI Color Space: REC 601, REC 709, REC 2020
• SDI Auto Switching: Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
• SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

Control:

• Built in Control Panel: 8 x buttons
• External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
• Control Panel Connection: Ethernet

Software:

• Software Control: Router control included free for Windows and Mac.
• Internal Software Upgrade: Via included updater application.

Operating Systems:

• Mac 14.0 Sonoma
• Mac 15.0 Sequoia or later
• Windows 10, 64-bit.
• Windows 11.

Power Requirements:

• Power Supply: 1 x Internal 100 – 240V AC 50/60Hz.
  IEC power cable required. 1 x 12V DC input with reverse polarity protection.
• Power Usage: 18.5W max.

Environmental Specifications:

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing
• Warranty: 1 Year Limited Manufacturer’s Warranty.

• Blackmagic Videohub Mini 6×2 12G
• Welcome wallet with QR code for software download
