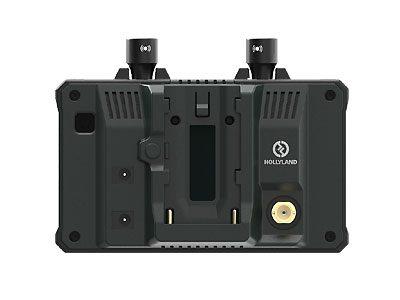

Hollyland MARS M1 5.5″ Wireless 4K Transceiver Monitor
TX, RX, and Monitor—All in One
The Mars M1 functions as an all-in-one transmitter, receiver and monitor solution. You can switch to the state of the transmitter or receiver on the monitoring screen. The Mars M1 can be used together with the Mars Pro and 4K series to reduce the number of devices required for a more efficient shooting experience, and it is both a Wireless Tansmitter and Receiver
5.5″ Touch LCD with Professional Color Calibration
The Mars M1 is designed with a 5.5″ touch LCD featuring up to 1,000 nits of brightness. With professional color calibration performed during manufacturing, each screen is set up with 6500K as the default color temperature and multiple-level color temperature adjustments are available. The screen supports the Rec. 709 color gamut for excellent color rendition. Five selectable 3D LUT presets are available for transferring colors to the monitor.
*The LUT files are stored on a USB-C flash drive which is formatted as FAT32 and can be easily transferred via its USB Type-C interface using UTG.
450ft (150m) LOS Range and 0.08s Ultra-low Latency
The Mars M1 achieves an incredible LOS range of 450ft (150m) and an ultra-low latency of 0.08s.
*The LOS range of 450ft (150m) is based on interference-free laboratory measurements.
HDMI & SDI Dual Interfaces
The Mars M1 supports 4K/30fps HDMI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.
Multiple Auxiliary Functions for Preview and Monitoring
It is featured with a variety of auxiliary functions, such as 4x zoom, focus assist, exposure assist, and waveform display, which increases shooting efficiency.
Smart Channel Scan and Selection
Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.
Customized Appearance and Textured Design
The custom-designed capsule antennas spare you the time spent on repeated disassembly. The Mars M1 body shell is highly impact-resistant with a frosted texture and weighs a mere 13.5 oz. (380g).
Optional Accessories for More Application Scenarios
Its optional accessories are designed to enhance your shooting experience. The rosewood handle supports a one-handed grip. The wristband and halter strap allow you to hold the monitor with one hand and secure it around your shoulder. The lens hood option greatly enhances color saturation and lens protection.
Multiple Power Supply Options
The Mars M1 supports various DC power options—6V to 16V, NP-F batteries, USB Type-C chargers, and batteries with a D-Tap interface.
Other Site
Other Hollyland Intercom system
Solidcom C1 wireless headset
Solidcom M1
Solidcom C1-8S
Syscom 1000T
2 to 4 wire converter
Other Reading Material
Why chose Hollyland wireless video transmission system
MARS M1 is available at
Philipines ( Manila ), Indonesia ( Jakarta ), Cambodia, Laos, Myanmar (Burma), Thailand, Vietnam, Singapore, India, and Malaysia
Specifications
Click to rate this post!
[Total: 4 Average: 5]
| Item | Transmitter Mode | Receiver Mode |
| Video Input Interface | SDI input (BNC female) HDMI input (Type-A female) |
/ |
| Video Output Interface | HDMI output (Type-A female) | HDMI output (Type-A female) |
| Antenna Interface | Two RP-SMA male interfaces | Two RP-SMA male interfaces |
| Power Input Interface | DC power input | DC power input |
| Power Output Interface | DC power output | DC power output |
| Headphone Jack | 3.5mm jack | 3.5mm jack |
| Firmware Upgrade Interface | USB Type-C | USB Type-C |
| Screen Size (diagonal) | 5.5” touch screen | 5.5” touch screen |
| Screen Resolution | 1920×1080 pixels | 1920×1080 pixels |
| Pixel Density | 403 ppi | 403 ppi |
| Aspect Ratio | 16:9 | 16:9 |
| Brightness | 1000 nits | 1000 nits |
| Contrast Ratio | 1000:1 | 1000:1 |
| Supply Voltage Range | 6~16V DC, nominal 12V | 6~16V DC, nominal 12V |
| Power Consumption | <14.5W (without DC output) | <10W (without DC output) |
| Net Weight (Ibs) | 380g (antennas excluded) | 380g (antennas excluded) |
| Dimension Convert all Metric Measure | (LxWxH): 152x96x40mm (antennas excluded) |
(LxWxH): 152x96x40mm (antennas excluded) |
| Input Video Formats | HDMI: 720P50/59.94/60 Hz 1080i50/59.92/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 3840x2160p23.98/24/25/29.97/30 Hz 4096x2160p23.98/24/25/29.97/30 HzSDI: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz |
/ |
| Output Video Formats | HDMI in HDMI out: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1089p23.98/24/25/29.97/30/50/59.94/60 Hz 3840x2160p23.98/24/25/29.97/30 Hz 4096x2160p23.98/24/25/29.97/30 HzSDI in HDMI out: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz |
720p50/60 Hz 1080i50/60 Hz 1080p24/25/30/50/59.94/60 Hz 1080p24/25/30 1080p24/25/30HDMI out: 720p50/60 Hz 720p50/60 Hz 1080p24/25/30/50/59.94/60 Hz |
| Operating Frequency | 5.1~5.8GHz | 5.1~5.8GHz |
| Codec Technology | H.264 | H.264 |
| Bit Rate | 12Mbps | 12Mbps |
| Tx Power | Max. 22dBm | Max. 22dBm |
| RX Sensitivity | -80dBm | -80dBm |
| Transmission Latency | <0.08s | <0.08s |
| Bandwidth | 20MHz | 20MHz |
In The Box
Click to rate this post!
[Total: 4 Average: 5]
- Monitor X 1
- Capsule Antenna X 2
- Tempered Glass Screen Protector X 1
- OTG Adapter X 1
- D-Tap to DC Cable X 1
- User Manual X 1
- Warranty Card X 1
Delivery Info
Click to rate this post!
[Total: 4 Average: 5]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Hollyland MARS M1 5.5-inch Touch LCD 450ft 4K/30fps Wireless Video Transmission
Clear filtersOnly logged in customers who have purchased this product may leave a review.
You may also like…
USD 549.00 excl. Tax
USD 149.00 excl. Tax
USD 899.00 excl. Tax
USD 329.00 excl. Tax
USD 449.00 excl. Tax
USD 399.00 excl. Tax
USD 509.00 excl. Tax
Related products
USD 499.00 excl. Tax
USD 2,861.00 excl. Tax
USD 1,166.20 excl. Tax
USD 3,919.00 excl. Tax
Stephen Ong –
The Hollyland Mars M1 is a portable wireless 4K ( in HDMI )video transmission system designed for filmmakers and videographers. It allows you to transmit high-definition video signals from your camera to a remote monitor or device without the need for cables.
The Mars M1 system consists of a transmitter and a receiver. The transmitter connects to your camera’s HDMI output, while the receiver connects to your monitor or device. The two units communicate wirelessly over a designated frequency band to transmit the video signal.
The Mars M1 offers a range of up to 150 meters (450 feet) in ideal conditions, providing real-time monitoring of the camera feed. It supports up to 1080p resolution and has low latency, ensuring smooth and lag-free video transmission. The system also supports multiple receiver connections, allowing multiple monitors or devices to receive the same video feed simultaneously.
The Hollyland Mars M1 features a compact and lightweight design, making it convenient for on-the-go shooting. It has a built-in rechargeable battery, which provides several hours of usage time. The system also includes useful features like channel selection, signal strength indicators, and encryption for secure transmission.
Overall, the Hollyland Mars M1 wireless monitor is a popular choice among filmmakers and videographers who require reliable and flexible wireless video transmission for their productions.
