Panasonic AW-UE150 4K PTZ with 4K 60p/50p cameras System
The next-generation PTZ camera supports high-quality video production in stadium, lecture halls, churches and other venues. Smooth and high-quality 4K 60p/50p, high-magnification zoom and a wide shooting angle expand the range of the PTZ camera’s applications.
| Weight | N/A |
|---|---|
| Choose from Variants |
AW-UE150KE ,AW-UE150WE ,AW-UE150KP ,AW-UE150WP |
Description
Click to rate this post!
[Total: 4 Average: 4.8]

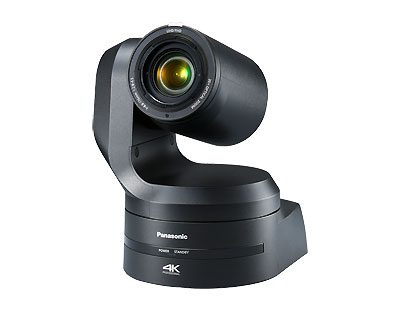

Panasonic AW-UE150 4K Professional PTZ Camera
The Panasonic AW-UE150 is a 4K PTZ Camera compatible with a variety of video transmission systems to support the next level of video production.
Built with a 1/2.5 MOS sensor and with a powerful 24x optical zoom, this 4K Integrated Camera is best suited with various IP transmission protocols, including NDI*1, SRT*2, and FreeD*3, achieving versatile video production with the high-quality format of 4K 60p/50p*4 video.
With the increasing demand for 4K quality, a 12G-SDI output is also built-in, in addition to 3G-SDI and HDMI, this allows the appropriate output to be selected for use in a wide variety of requirements, from studio production to live to stream of events.
AW-UE150 W/K PTZ Camera System is one of the top-of-the-line professional-grade cameras in the Panasonic PTZ line-up., that is designed to meet the needs of the most demanding video production environments. The camera is available in two colors, the white model (AW-UE150W) and the black model (AW-UE150K), both of which offer the same high-quality video performance and features.
The 4K Professional HDR and SRT Alliance features of the Panasonic AW-UE150 W/K PTZ Camera System make it an excellent choice for sports broadcasting, live events, and other demanding video production environments. The 4K 60p/50p output and high-magnification zoom provide stunning image quality, and the wide-angle shooting capabilities allow for more flexible video production. With its 1.0-type MOS sensor, the camera is able to capture incredibly detailed and sharp images, even in low-light environments.
The camera is equipped with a range of functions that make it an incredibly versatile and capable tool for video production. The optical 20x zoom and industry-first 75.1° horizontal wide-angle shooting allow for more expansive views and greater coverage, while the HDR (HLG) support provides more vivid and lifelike images. The optical image stabilizer (OIS) ensures stable and smooth footage, and the night mode support allows for clear images in low-light environments. The camera also features an adaptive matrix that prevents color overload from blue LED lights, providing accurate and vibrant colors.
In addition to its impressive video capabilities, the Panasonic AW-UE150W/K PTZ Camera System offers incredible pan and tilt performance, with a wide range of movements that allow for easy camera control. The cropping function is also available, providing greater flexibility when capturing video. The camera is also equipped with a JPEG image-saving function, allowing for quick and easy image capture.
The Panasonic AW-UE150 W/K PTZ Camera System is also fully compatible with the IT/IP platform “KAIROS,” providing a range of remote control and management capabilities. The tally LED limit is another useful feature, allowing for easier camera operation and management during live events. The camera also features a large tally lamp, providing a clear indication of the camera’s status. The WEB UI has been improved, providing greater ease of use and control.
The camera is also equipped with a range of connectivity options, making it an ideal choice for large-scale video production systems. The AW-RP150GJ connection provides seamless integration into existing production systems, while the SRT support ensures stable video transmission over public lines. The camera also supports direct broadcast via RTMP (Real-Time Messaging Protocol) and is NDI | HX compatible, providing excellent video streaming quality.
In conclusion, the Panasonic AW-UE150 W/K PTZ Camera System is a versatile and high-quality video production tool that is designed to meet the demands of professional video production environments. With its range of features and capabilities, this camera is an excellent choice for sports broadcasting, live events, and other demanding video production applications. Whether you are a seasoned video professional or just starting out, the Panasonic AW-UE150W/K PTZ Camera System is a reliable and capable choice that is sure to meet your needs.

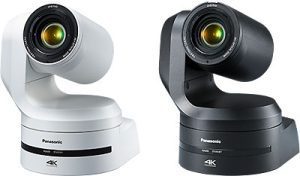

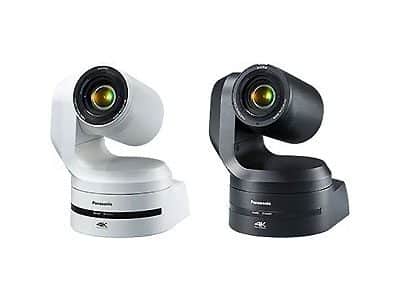

AW-UE150W/K comes in 2 color choices. White: AW-UE150W, Black: AW-UE150K
Panasonic AW-UE150 4K MOS Camera is equipped with a variety of interfaces and supports simultaneous 4K/HD operation which allows for versatility in current and future production systems.
Features:
High-quality 4K Image
- High-Quality 4K 60p/50p Shooting
- 1.0-type MOS Sensor Mounted
- Optical 20x Zoom / Industry’s First 75.1°Horizontal Wide-Angle Shooting
- HDR (HLG) Support
- Optical Image Stabilizer (OIS) Loaded
- Night Mode Support
- Adaptive Matrix prevents color overload from blue LEDs
Optical Image Stabilizer (OIS) Loaded
Vibrations of the mounted surface caused by doors opening and closing, audio systems, and other installed equipment are automatically corrected to ensure stable shooting.
1.0-type MOS Sensor Mounted
The large 1.0-type MOS sensor enables high-sensitivity shooting with low noise. The sensor boasts a light-capturing area that is approximately four times larger than that of the 1/2.3-type sensor to guarantee a wide dynamic range.
Optical 20x Zoom / Industry’s First* 75.1°Horizontal Wide-Angle Shooting
Adding “I zoom” to our optical 20x zoom, maintains high resolution while enabling ultra-high resolution 32x zoom in HD mode and 24x zoom in 4K mode. This enables distant subjects to be captured clearly. Furthermore, 75.1° horizontal wide-angle shooting enables capture of the entire area, even when installation space is limited.
HDR (HLG) Support
The AW-UE150 Camera supports HDR (High Dynamic Range) to prevent blown-out highlights and blocked-up shadows and enable picture quality close to that of the naked eye. Conforms to BT.2020.
Optical Image Stabilizer (OIS) Loaded
Vibrations of the mounted surface caused by doors opening and closing, audio systems, and other installed equipment are automatically corrected to ensure stable shooting.
Night Mode Support
Equipped with Night Mode for infrared shooting. The use of IR rays in low-light situations enables shooting in situations that would normally be difficult, such as when capturing wildlife (image output is black and white).
Adaptive Matrix Prevents Color Overloaded from Blue LEDs
Equipped with an Adaptive Matrix function that automatically controls matrix calculation coefficients. This enables shooting while preventing color overloaded, even during live events and on stages with strong blue LED lights.
Various Functions
- Incredible Pan and Tilt Performance
- Cropping Function
- JPEG Image Saving Function Equipped
- FreeD Support for the Construction of AR/VR Systems
- Tally LED Limit
Incredible Pan and Tilt Performance
Pan and tilt operate from a minimum speed of 0.08°/s to a maximum of 180°/s in high-speed mode. This is approximately 3 times the speed of our current product1 for rapid capture of the intended target. Furthermore, a low noise level of NC35 or less has been ensured when operating in normal mode, which is perfect for shooting in quiet environments.
JPEG Image Saving Function Equipped
Up to 100 still, images can be captured and saved as JPEG files to the built-in camera memory.
FreeD 1 Support for Construction of AR/VR Systems
Connection with AR/VR systems has been enabled via FreeD-compliant command output. Camera tracking information (pan/tilt/zoom/focus/iris) is output according to a synchronizing signal to facilitate the construction of virtual systems without an encoder.
AR: Augmented Reality
VR: Virtual Reality
Wide Expandability
- Equipped with a Large Tally Lamp
- WEB UI Improved
- AW-RP150GJ Connection for Large-Scale Production Systems
- Multiple Interfaces Supported
- SRT support for stable video transmission over public lines
- Direct Broadcast via RTMP (Real-Time Messaging Protocol)
- NDI | HX Compatibility for Excellent Video Streaming Quality
Equipped with a Large Tally Lamp – Easy to see from a distance.
WEB UI Improved – Camera IP image output, settings, and control can be performed using a web browser on a computer connected via an IP network. In addition to PCs and Macs, iPads, iPhones1, Androids, and other mobile devices can be used for operation, and this pursuit of easy-to-use interfaces has enabled smooth camera control from remote locations.
AW-RP150GJ Connection for Large-Scale Production Systems
IP connection from the Remote Camera Controller AW-RP150GJ through a HUB (switching hub) enables control of up to 200 AW-UE150W/K units. Furthermore, a single AW-UE150W/K unit can be controlled from up to 5 AW-RP150GJ units.
Multiple Interfaces Supported
A wide range of outputs is supported: 12G-SDI, 3G-SDI, HDMI, IP, and even Optical Fiber output. The addition of 4K/HD simultaneous output guarantees the right output for the operation at hand. 4K video can be down-converted to HD directly within the camera.
NDI | HX Compatibility for Excellent Video Streaming Quality
Panasonic AW-UE150 4K PTZ Camera can be upgraded to an NDI | HX compatible model if purchasing a license.
Highly efficient NDI | HX compatibility enables high-quality video to be encoded and transmitted in real-time and input signals to be directly sent to a switcher (AV-HLC100) without the need for an IP decoder.
After purchasing an NDI|HX license, the license can be activated using the Activation function of the free software, Easy IP Setup Tool Plus (supported from Ver. 1.3.6 or later).
To learn more about Related Products
Related Software:
Panasonic AW-SF100 Auto Tracking Software Key
Panasonic AW-SF200 Auto Tracking Software Key
Panasonic AW-SF300 Visual Preset Software for PTZ Cameras
Panasonic AW-SF202 Auto Tracking Software Key
Panasonic AW-SF400Z Video Mixer Software
Panasonic AW-SF203 PTZ Camera Auto Tracking Software
Other Site
Indhu UC added on 14 Feb 2023
Specifications
Click to rate this post!
[Total: 4 Average: 4.8]
Specifications
| General | ||
|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) | |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 4.2 kg (9.24 lb) (excluding mount bracket) | |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
|
| Finish | AW‑UE150WP/AW‑UE150WE: Pearl white AW‑UE150KP/AW‑UE150KE: Black |
|
| Controller Supported | AW-RP150GJ, AW-RP50, AK-HRP1000GJ | |
| Camera Unit | ||
| Imaging Sensors | 1-type 4K MOSx1 | |
| Effective Pixels | 20,180,000 pixel | |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
|
| Zoom | • Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • Digital zoom: 10x |
|
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
|
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
|
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) | |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) | |
| S/N | 60 dB or more | |
| Horizontal Resolution | 2,000 TV lines Typ (Center area) | |
| Gain Selection | Auto, -3 dB to 36 dB Super Gain function equipped : +37 dB to 42 dB |
|
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB | |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| Synchro Scan | 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 23.98p/24p | 24.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG | |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
|
| Chroma Amount Variability | OFF, –99 % to 99 % | |
| Scene File | Scene1, Scene2, Scene3, Scene4 | |
| Output Format | 4K | 2160/59.94p, 2160/50p, 2160/29.97p4, 2160/25p4, 2160/24p4, 2160/23.98p4 |
| HD | 1080/59.94p, 1080/50p, 1080/29.97p4, 1080/29.97PsF, 1080/25p4, 1080/25PsF, 1080/23.98p5, 1080/24p4, 1080/23.98p4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| Synchronization System | ||
| Internal/External synchronization (BBS/Tri-level sync) | ||
| Input | ||
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
|
| Output | ||
| Video Output | HDMI | HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| 12G-SDI OUT | SMPTE 2082‑1 standard / 75 Ω (BNC x 1) | |
| 3G-SDI OUT | SMPTE424M/SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| MONI OUT | SMPTE292 / 75 Ω (BNC x 1) | |
| Optical Fiber | SFP+ standard • This unit does not support input by optical signals |
|
| Input/Output | ||
| Input/Output Connector | LAN | LAN connector for IP control (RJ‑45) |
| RS-422 | CONTROL IN RS-422A (RJ‑45) | |
| MIC/LINE input | AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV ±3 dBV |
|
| Pan-tilt Head Unit | ||
| Camera/Pan-tilt Head Control | IP connecting cable | LAN cable: (category 5e or above, straight cable / crossover cable), max. 100 m (328 ft) |
| AW protocol connecting cable | LAN cable6: (category 5e or above, straight cable), max. 1000 m (3280 ft) | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) | |
| Pan/tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher • Maximum speed is 180°/s in high-speed mode |
|
| Panning Range | ±175° | |
| Tilting range | –30° to 210°10 | |
| Quietness | NC35 or less | |
| Supported Operating Systems and Web Browsers11 | ||
| Supported Operating Systems and Web Browsers | Windows | Microsoft Windows 7, 10 Windows Internet Explorer 11 (64‑bit/32‑bit) Microsoft Edge Google Chrome |
| Mac | Mac OS 10.13, Mac OS 10.12, Mac OS 10.11 Safari 11, Google Chrome |
|
| iPhone / iPad | iOS 11.4.1 Google Chrome |
|
| IP Streaming | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 | |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
|
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission Priority | Constant bit rate Frame rate Best effort |
|
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
|
| Max Bit Rate | HD: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbpsUHD: 12800kbps / 25600kbps / 51700kbps / 76800kbps |
|
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Frame Rate | [60Hz] 30fps [50Hz] 25fps |
|
| Max Bit Rate | 8192kbps / 12800kbps / 25600kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | IPv6 | TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
| IPv4 | TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT | |
| Other Function | ||
| NDI support | NDI|HX version 2 | |
| Tally LED Display Color | red / green | |
