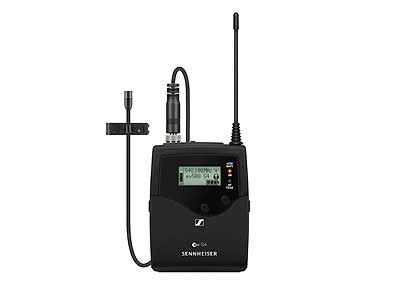

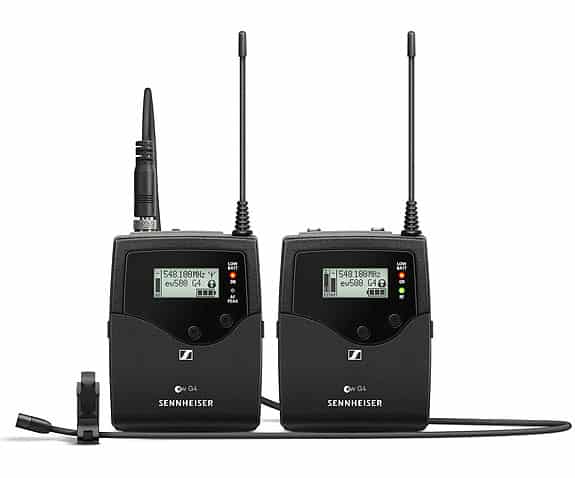

    Sennheiser EW 512P G4 Wireless lavalier Microphone System

    USD 945.53 – USD 955.99 excl. Tax excl. Tax

    Sennheiser EW 512P G4 is a highly versatile solution for professional film sound: rugged all-in-one wireless system for professional interviews and recording

    Weight N/A
    Choose Product Variant

    EW 512P G4-Aw+ (470 – 558 MHz) (509543)

    ,

    EW 512P G4-Bw (626 – 698 MHz) (509535)

    ,

    EW 512P G4-Cw (718 – 790 MHz)

    ,

    EW 512P G4-Dw (790 – 865 MHz)

    ,

    EW 512P G4-Gw (558 – 626 MHz) (509534)

    ,

    EW 512P G4-GBw(509879)
    SKU: EW 512P G4 Category:
    Description
    Click to rate this post!
    [Total: 1 Average: 5]

    Sennheiser EW 512P G4 Wireless lavalier Microphone System for Film, Documentary or Interview

    Sennheiser EW 512P G4 professional’s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers the ultimate sound quality, simple mounting, and ease of use.

    Impressive film sound was never that easily done. The legendary MKE 2 Gold professional clip-on microphone ensures the best speech intelligibility, the portable transmitter, and the receiver are easily mounted and ensure 8 hours of mobile operation.

    The perfect solution for filmmakers on large sets, operating up to 32 channels in parallel. The amazing bandwidth of up to 88 MHz and the increased RF output power ensures the highest safety, no matter the conditions.

    • Professional sound and excellent construction quality
    • Easy to use and fast setup time
    • Easy and flexible wireless synchronization between transmitter and receiver via infrared
    • Up to 88 MHz bandwidth, up to 32 channels
    • Range: up to 100 meters / 330 feet
    • Increased RF output power (10/30/50 mW)
    • Up to 8 hours of operation time

    Sennheiser EW Series Family Product

    EW 112P G4 Wireless Microphone

    EW 100 G4-ME4 Wireless Microphone

    EW 500 BOOM G4 Wireless Microphone

    Other Site

    EW 512P G4 Wireless Microphone





    Specifications
    Click to rate this post!
    [Total: 1 Average: 5]
    EK 500 G4
    Frequency range
    AW+ : 470-558 MHz
    Gw : 558-626 MHz
    Bw : 626-698 MHz
    Cw : 718-790 MHz
    Dw: 790-865 MHz
    GBw: 606-678 MHz
    Dimensions
    Approx. 82 x 64 x 24 mm
    Compander
    Sennheiser HDX
    THD, total harmonic distortion
    ≤ 0.9 %
    Weight
    Approx. 130 g
    Audio output
    3.5 mm jack socket: +17 dBu (mono, unbalanced)
    Signal-to-noise ratio
    Line: ≥ 110 dBA, Phones: approx. 90 dBA
    Switching bandwidth
    up to 88 MHz
    Peak deviation
    ±48 kHz
    Nominal deviation
    ±24 kHz
    Modulation
    Wideband FM
    Operating Time
    Typically 8h
    Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption
    at nominal voltage: typ. 140 mA
    with receiver switched off: ≤ 25 µA
    Adjacent channel rejection
    Typically ≥ 65 dB
    Intermodulation attenuation
    Typically ≥ 65 dB
    Powering
    3 V battery / 2.4 V rechargeable battery
    Receiving frequency
    Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    RF sensitivity
    < 1.6 μV for 52 dBA eff S/N
    Squelch
    low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
    Temperature Range
    -10 °C to +55 °C
    Receiver Principle
    Adaptive diversity
    Blocking
    ≥ 70 dB
    SK 500 G4
    Dimensions
    Approx. 82 x 64 x 24 mm
    Compander
    Sennheiser HDX
    THD, total harmonic distortion
    ≤ 0.9 %
    Weight
    (incl. batteries) approx. 160 g
    Signal-to-noise ratio
    ≥ 115 dBA
    RF output power
    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    Switching bandwidth
    up to 88 MHz
    Peak deviation
    ±48 kHz
    Nominal deviation
    ±24 kHz
    Operating time
    Typically 8 h
    Modulation
    Wideband FM
    Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 µA
    Input impedance
    40 kΩ, unbalanced / 1 MΩ
    Max. Input voltage
    3 Veff
    Powering
    3 V battery / 2.4 V rechargeable battery
    Transmission frequency
    Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    AF frequency response
    Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
    Temperature Range
    -10 °C to +55 °C
    Frequency stability
    ≤ ±15 ppm
    MKE 2
    Connector
    3.5 mm jack
    Frequency response
    20 to 20.000 Hz ± 3 dB
    Max. sound pressure level
    142 dB
    Cable length
    approx. 1.60 m
    Transducer principle
    pre-polarized condensor microphone
    Pick-up pattern
    omni-directional
    Sensitivity in free field, no load (1kHz)
    5 mV/Pa, ± 3 dB
    Equivalent noise level
    26 dB
    Equivalent noise level weighted as per CCIR 468-3
    39 dB
    In The Box
    Click to rate this post!
    [Total: 1 Average: 5]
    • EK 500 G4 camera receiver
    • SK 500 G4 bodypack transmitter
    • MKE 2 clip-on microphone
    • 4 AA batteries
    • CL 1 3.5 mm jack cable
    • CL 500 XLR to 3.5 mm jack adapter cable
    • CA 2 camera adapter
    • fur windscreen for MKE 2
    • quick guide
    • safety guide
    • manufacturer declaration sheet
