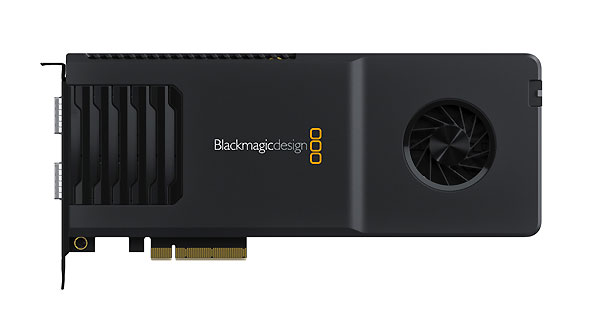

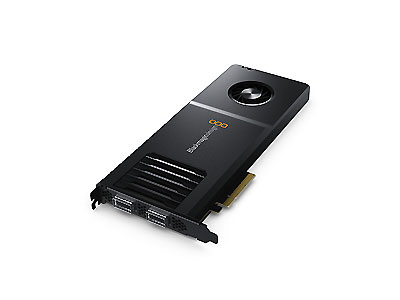

Blackmagic DeckLink IP 100G Capture and Playback Card

Connections:

• 100G Ethernet Ports: 2 x 100Gb/s QSFP28 connectors.
• Computer Interface: PCI Express 8 lane generation 4, compatible with 8 and 16 lane PCI Express slots.
• Power: 6-pin 2×3 auxiliary power connector.

Supported Codecs:

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.

Software:

• Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 8 lane generation 4, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Requires connection to computer power supply via 2×3 auxiliary power connector. Please check the Support pages to see the full system requirements.
• Other supported applications include: Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom.
• These are third party applications and support may vary, check with your software vendor.
• Operating Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit, Windows 11 and Linux.

Video Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
• Audio Sampling: Television standard sample rate of 48 kHz at 24‑bit.
• Color Precision: 8, 10, 12-bit RGB 4:4:4 and 8, 10-but YUV 4:2:2: in all modes.
• Color Space: REC 601, REC 709, REC 2020.
• HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.

IP Video Compliance:

• SMPTE 2110-20 (Uncompressed Video): IGMP v2/v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow
  Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• SMPTE 2022-7 (Redundant streams): Receiver class TBC
• Precision Time Protocol: IEEE 1588-2008 (PTP v2)
  ST 2059-1
  ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2
  Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Processing:

• Color space Conversion: Hardware based real time.
• Real Time Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

Power Requirements:

• Power Consumption: TBC

Environmental Specifications:

• Operating Temperature: 5° to 50° C (41° to 122° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non‑condensing
• Warranty: 3 Year Limited Manufacturer’s Warranty.

• DeckLink IP 100G
• Welcome wallet with QR code for software download
