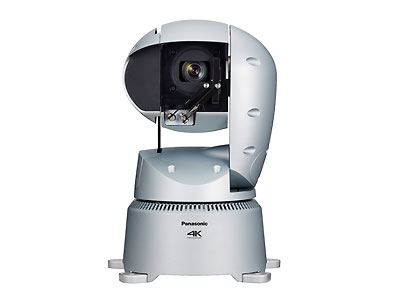

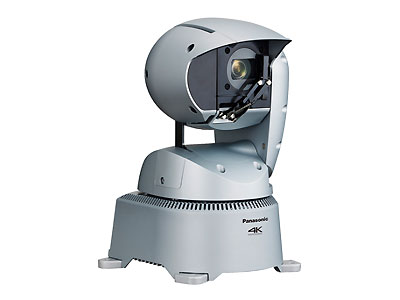

Panasonic AW-UR100 4K PTZ Camera

General:

• Power Requirements: DC 12 V to 21.8 V ±10 % (10.8 to 24.0 V)
• PoE++: IEEE802.3bt compliant: DC42-57V (camera end)
  (Compatible with software authentication (LLDP communication))
• Current Consumption: 3.1 A to 5.5 A (DC IN connector), 1.2 A (PoE++ power supply)
• Ambient Operating Temperature: -15 °C to 45 °C (5 °F to 113 °F)*1
• Allowable Humidity Ranges: 10% to 100%*2
• Storage Temperature: -20 °C to 55 °C (-4 °F to 131 °F)
• Mass: Approx. 9.0 kg (19.84 lb)
• Dimensions (W x H x D): 258.0 mm x 367.0 mm x 392.0 mm (10.16 inches x 14.45 inches x 15.43inches)(including protrusions and cable cover)
• Finish: Silver, salt resistant coating
• Waterproof and Dust Proof: IP65 compliant
• Maximum Permissible Wind Speed: 15 m/sec: Operates normally,
• 50 m/sec: Operation possible, 60 m/sec: No damage
• Wiper: Installed as standard
• Heater: Installed as standard
• Defroster: Installed as standard
• Controller Supported: AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1000GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ

Camera Unit:

• Imaging Sensors: 1/2.5-type 4K MOS x 1
• Effective Pixels: Approx. 8,290,000 pixel
• Lens: Motorized Optical 24x zoom, F1.8 to F4.0
  [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
  35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
• Zoom: Optical zoom: 24x
  i.Zoom UHD 28x, FHD 36x
  Digital extender: 1.4x, 2x
  Digital zoom: 10x
• Conversion Lens: Not supported
• Angle of view range: Horizontal: 74.1° (wide) – 3.3° (tele)
  Vertical: 46.0° (wide) – 1.9° (tele)
  Diagonal: 81.8° (wide) – 3.8° (tele)
• Optical Filter: Through, 1/4, 1/16, 1/64, IR through
  (IR through is used as “night mode”)
• Focus: Switching between auto and manual
• Focus Distance: Entire zooming range: 1200 mm (3.9 ft), wide end: 100 mm (0.33 ft)
• Color Separation Optical System: 1MOS
• Minimum Illumination: 3 lx (F1.8, 59.94p, 50 IRE, 42 dB, without accumulation)
• Horizontal Resolution: 1,500 TV Typ (Center area, UHD mode, wide)
• Gain Selection: Auto, 0 dB to 36 dB*3(Super Gain function equipped : 37 dB to 42 dB)
• Frame Mix: Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4

Electronic Shutter Speed:

• 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000

Synchro Scan:

• 59.94p/59.94i: 60.0 Hz to 7200 Hz
• 29.97p: 30.0 Hz to 7200 Hz
• 23.98p/24p: 24.0 Hz to 7200 Hz
• 50p/50i: 50.0 Hz to 7200 Hz
• 25p: 25.0 Hz to 7200 Hz
• Gamma: HD / NORMAL / CINEMA1 / CINEMA2 / STILL LIKE * Black Gamma is not supported
• White Balance: ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
• AWB: AWB-A / AWB-B
  VAR (selectable between 2000 K and 15000 K by designating a value)
• Chroma Amount Variability: OFF, -99 % to 99 %
• Scene File: Full Auto, Scene1, Scene2, Scene3

Output format:

• 4K: 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
• HD: 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/29.97PsF, 1080/25p (Native),
  1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (Native), 1080/23.98p (Native),
  1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

Synchronization System:

• Internal/External synchronization (BBS/Tri-level sync)

Input:

• Input Connector: DC IN DC 12 V IN
• G/L IN: BBS (Black Burst Sync), tri-level sync supported

Output:

• Video Output: Optical SFP+ compliant (Single Fiber)
• 12G SDI OUT: SMPTE2082-1, SMPTE424M, SMPTE292M compliant/75Ω (BNC x 1)
• 3G SDI OUT: SMPTE424M, SMPTE292M / 75Ω (BNC x 1)

Input/Output:

• Input/Output Connector – LAN: LAN terminal for IP control (RJ-45)
• RS-422: CONTROL IN RS422A (RJ-45)
• D-sub 9 pin: External washer control terminals (#1: Washer_HOT, #6: Washer_COLD)
• MIC/LINE Input terminals
  (#5: CH1-HOT, #4: CH1-COLD, #3:CH1-GND, #9: CH2-HOT, #8: CH2-COLD, #7:CH2-GND)
  MIC/LINE Input Compatible (SDI/IP)
  AAC compatible (compatible with IP only)
  Balanced input 2ch

During MIC input

• Input level: -40 dBu
• Input impedance: Approx. 10 kΩ
• Phantom power compatible, supply voltage: 47 V ± 2 V

During LINE input

• Input level: 0 dBu
• Input impedance: Approx. 10 kΩ
• Input volume variable range: -30 dB to 20 dB (1 dB step)
• Embedded audio output level: -12 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24bit (SDI), 16bit (IP)

Pan-tilt Head Control:

• IP Connecting Cable: LAN cable(category 5e or above, straight cable) Max. 100 m
• AW Protocol Connecting Cable: LAN cable(category 5e or above, straight cable) Max. 100 m

Pan-tilt Head Unit:

• Installation Method: Stand-alone (Desktop) or suspended (Hanging)
• Pan/tilt Operation Speed: Speed range: 0.08°/s ～60°/s (Normal mode)
• 3 speed modes installed
  Normal: 60°/s, Fast1: 90°/s, Fast2: 180°/s
  Panning Range: ±175°
  Tilting Range: -30° to 210°
  Quietness: NC25 or less
  Vibration Correction: D.I.S.S. (Dynamic Image Stabilizing System)

Supported Operating Systems and Web Browsers:

• Windows: Windows10
  Microsoft Edge
  Google Chrome
• Mac: MacOS 13
  MacOS 12
  MacOS 11
  Safari
  Google Chrome
• iPhone / iPad / iPod touch: iOS, Safari, iPadOS
• Android: Android OS
  Google Chrome

IP Streaming:

• Image Streaming Mode: JPEG (MJPEG), H.264, H.265, High Bandwidth NDI
• Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
• Image Transmission Setting (JPEG): Frame Rate: Maximum 30 fps. Image quality (Fine / Normal)

Image Transmission Setting (H.264):

• Transmission Type: Unicast port (AUTO)
  Unicast port (MANUAL)
  Multicast port
• Transmission mode (Excluding UHD): Constant bit rate
  Frame rate
  Best effort
• Frame Rate: [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
  [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
• Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps /
  8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps /
  32768kbps / 40960kbps / 51200kbps / 76800kbps

Image Transmission Setting (H.265):

• Transmission Type: Unicast port (AUTO)
  Unicast port (MANUAL)
  Multicast port
• Frame Rate: [60Hz] 30fps
  [50Hz] 25fps
• Max Bit Rate: 8192kbps / 12800kbps / 25600kbps / 51200kbps / 76800kbps
• Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch

Supported Protocols:

• Network Protocol: ICMP, ARP, GARP, MLD
• Transmission Protocol: TCP/IP, UDP/IP
• Applocation Protocol: [IPv4] HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X
  [IPv6] HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X
• Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI|HX version 2, High bandwidth NDI
• External Device Cooperation Protocol: FreeD, TSL5.0, SNMP

NDI Support:

• NDI Support: High Bandwidth NDI, NDI|HX version 2
  Output format(High Bandwidth NDI)
• 4K: 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
• HD: 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p
• Image Resolution(NDI|HX version 2): 1920×1080, 1280×720

Image Transmission Setting(High Bandwidth NDI)

• Transmission Type: TCP/UDP
• Multicast
• Max Bit Rate: 250 Mbps

Image Transmission Setting(NDI|HX version 2)

• Transmission Type: Unicast port (AUTO)
• Unicast port (MANUAL)
• Multicast port
• Flame rate: [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
  [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
• Max bit rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps /
  20480kbps / 24576kbps
• Audio Compression Type(High Bandwidth NDI): AAC, 48 kHz, 2 ch
• Audio Compression Type(NDI|HX version 2): AAC-LC, 48 kHz, 16 bit, 2 ch

New function:

• F Number Display: Displayed on the AW-RP150GJ and WEB screen (next to IRIS slide bar, only for MANU IRIS)
• NDI: High Bandwidth NDI, NDI|HX included as standard
• IP menu display: Supported
• VR (FreeD)(IP/RS422): Supported
• Image Stabilization: OIS 2-axis + Hybrid method of roll direction correction
• MENU switching：select between OFF/OIS/Hybrid (Stable)/Hybrid (Pan/Tilt) and ON/OFF of D.I.S.S
• Horizontal display function: Check with OSD_MENU or select ON/OFF with Web GUI
• Privacy Mode: The lens surface faces backward when standing by (ON/OFF)
