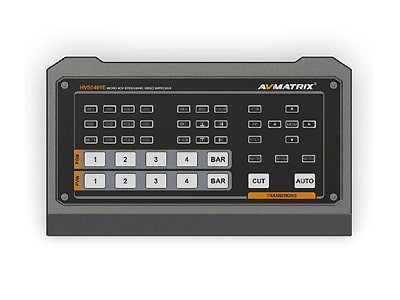

AVMATRIX HVS0401 Micro 4 Channel HDMI/ DP Video Switcher

CONNECTION

• Video In: IN1~IN3: HDMI type-A ×3; IN4: HDMI type-A/ Display Port ×1
• Video Out
  PGM: HDMI type-A×2
  Multiview: HDMI type-A×1
  USB Capture: USB type-C ×1
  Streaming & PC control: LAN Port×1
• Audio In
  MIC/ Line ×2 (3.5mm audio)
  RCA ×2 (stereo audio)
• Tally Port: DB-15 ×1
• Power In: DC 12V IN ×1

STREAM & RECORD

• Encode Bitrate: 2/ 4/ 8/ 12/ 16/ 24/ 32Mbps
• Rate Control: CBR/ VBR
• Stream Protocol: RTMP
• Storage Format: SD card:FAT32/exFAT; USB disk: FAT32/exFAT/NTFS
• REC Format: MP4/ TS
• Encoder: H.265/ H.264 High/ H.264 Main/ H.264 Base
• REC File Segment: 1/ 5/ 10/ 20/ 30/ 60/ 90mins

FUNCTIONS

• Functions: Image Still/ Transition Speed/ MUTE/ Audio follows Video/ Audio Mixer
• Transitions: AUTO/ CUT
• Effects: WIPE/ MIX/ FADE/ FTB
• Layouts: PIP, Multiview

STANDARDS

• HDMI In Format Support
  1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/23.976
  1080i 50/ 59.94/ 60
  720p 60/ 59.94 /50/ 30/ 25/ 24
  576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
• PC HDMI/DP Input Format Support: 2560×1600, 2048×1152, 1920×1080,1680×1050, 1600×1200, 1600×900, 1400×1050, 1440×900, 1366×768, 1360×768, 1280×1024, 1280×960, 1280×800, 1280×768, 1280×720, 1280×600, 1152×864, 1024×768, 800×600, 640×480
• HDMI PGM Out
  1080p 60/ 50/ 30/ 25/ 24
  1080i 60/ 50
• HDMI Multiview Out: 1080p60
• HDMI Color Space: RGB/ YCbCr
• USB Capture Out: MJPG/ H.265/ H.264 , Up to 1080p60

OTHERS

• Power: ≤14.4W(12V 1.2A)
• Dimension (LWD): 238.5×140.4×44.5mm
• Weight: Net: 968.3g; Gross: 1365.8g
• Temperature: Working: -20℃~60℃, Storage: -30℃~70℃
• Standard Accessories: Power supply(12V 2A ) ×1, USB cable(type A-C) ×1, Tally connector(DB-15) ×1
• Optional Accessories: Handbag ×1, Tally cable ×1
