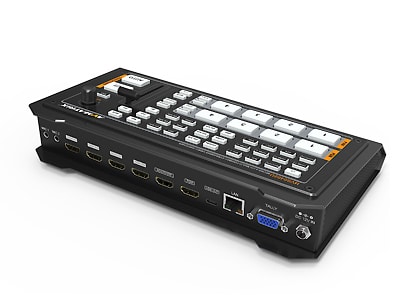

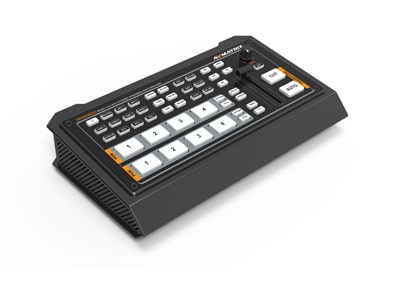

AVMATRIX HVS0402U Micro 4-channel HDMI Live streaming Video Switcher

CONNECTION

• Video In: HDMI type-A ×4
• Video Out
  HDMI type-A PGM ×1
  HDMI type-A Multiview ×1
  USB2.0 type C ×1 (Streaming on PC)
  Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview
• Audio In: MIC/ Line level (3.5mm stereo audio) ×2
  PC Control Port: LAN×1
• Media Library: USB type-A ×1(USB disk port for image import and firmware upgrade)
• Tally Port: DB-15 ×1
• Power In: DC 12V ×1

FUNCTIONS

• Transitions: T-Bar/AUTO/ CUT
• Effects: Wipe (9×2 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB
• Layouts: 2 styles of Multiview layout (6 windows and status)
  Keys
• Upstream Key: Luma Key ×1/ Chroma Key ×1/ PiP ×2/ POP
• Downstream Key: DSK ×1/ Logo ×1
• Audio Mixer
  HDMI ×4 and MIC/ Line level ×2;
  Audio delay: 0-500ms
• Media
  Default image: 49 preset patterns
  Local image: up to 16 imported images
  Capture image: up to 16 captured images
• Generators
  Pattern generator ×1
  Color generators ×2

STANDARDS

• HDMI In Format Support
  1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
  1080i 50/ 59.94/ 60
  720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
  576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
• HDMI PGM Out: 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
• HDMI Multiview Out: 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/59.94/ 50
• HDMI Color Space: RGB/ YUV
• USB Capture Out: MJPG, Up to 1080p 60
  Media Format: USB disk format support: FAT32, Ext3, Ext4, up to 256GB
• Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, tga
  Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, tga
  Logo size support: 10×10 pixel to 600×600 pixel

OTHERS

• Power: Wide voltage: 7~24V; Operating power:12W (12V 1A)
• Dimension (LWD): 244.5 × 143.2 × 44.5mm
• Weight: Net: 1030g; Gross: 1500g
• Temperature: Working: -20℃~60℃, Storage: -30℃~70℃
• Accessories: Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1
