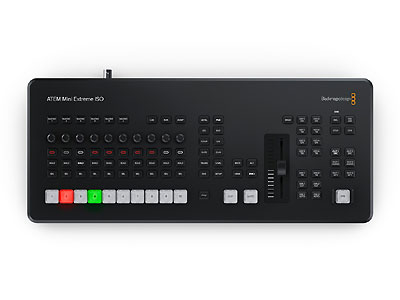

Blackmagic ATEM Mini Extreme ISO G2 Advanced Second-Generation ATEM Mini Live Production Switcher

Connections:

• Total Video Inputs: 9
• Total Outputs: 4
• Total Aux Outputs: 4
• SDI Rates: 1.5G, 3G
• HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable.
  2 channel embedded audio.
• HDMI Video Outputs: 3
• HDMI Program Outputs: 3
• Total Audio Inputs: 2 x XLR Combo with phantom power.
  1 x BNC 32 Ch MADI digital audio.
• Total Audio Outputs: 1 x 6.35mm headphone jack
• Timecode Connection: None
• Reference Input: None
• Video Input Re-Sync: On all 8 HDMI inputs and remote sources
• Frame Rate and Format Converters: On all 8 HDMI inputs and remote sources
• Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
• Total Multi Views: 1 x HDMI
  1 x Webcam
• Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
• Internal Timecode Generator: Yes
• Tally Output: On Blackmagic HDMI and remote cameras.
• Ethernet: 1 x 1G Ethernet for simple streaming, control panels and internet connection,
  1 x 10G Ethernet connection for recording.
• Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
  1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power.

Standards:

• HD Video Input Standards: 720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz
  1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
  1920 x 1080i 50, 59.94Hz and 60Hz
• Colorspace Conversion: Hardware based real time.
• SDI Auto Switching: –

Product Specifics:

• Number of Mix Effects Rows: 1
• Direct Cross Points: 10
• Crosspoint Button Type: NKK Buttons
• Preview Transition: 1
• Source Select Bus: Set using Multi Function Controls and Fairlight Audio Status Output.
• Dedicated Macro Buttons: 6
• Transition Type Buttons: Set using Multi Function Controls and Fairlight Audio Status Output.
• Transition Rate: Set using Multi Function Controls and Fairlight Audio Status Output.
• Key Buttons: 8
• AUX Buttons: 6
• Fader Bar: 1
• Record Buttons: 2
• Stream Buttons: 2
• DSK Transition Selectors: 6
• Fade to Black Buttons: 1 NKK button
• Upstream Keyers: 4
• Downstream Keyers: 2
• Advanced Chroma Keyers: Up to 4
• SuperSource: 1
• DVEs: 2
• Linear/Luma Keyers: Up to 4
• Transition Keyer (Stinger/DVE): DVE only
• Color Generators: 2
• Control Panel: Set using Multi Function Controls and Fairlight Audio Status Output.
• Routable Windows: 16
• Tally: Red for program and green for preview indication.

Audio:

• Audio Mixer: 26 input x 2 channel mixer.
  (8 HDMI+16MADI+XLR+Thunderbolt)
  Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Balanced stereo XLR combo connectors
• Analog Input Delay: Up to 8 frames
• Mic Plug In Power: +48V phantom power on XLR combo inputs

Streaming Sources:

• Total Streaming Sources: Up to 8
• Streaming Source Format: RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting.
• Streaming Source Setup: Mapped to inputs in ATEM Software Control Settings.

Streaming:

• Direct Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.

Recording:

• Direct Recording Video and Audio: CFExpress slot for recording
  Network Recording
  USB-C Recording
• Video Recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
  1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
• Audio Recording: 26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.
• Switching: Program switching recorded as a DaVinci Resolve project .drp file.
• Media Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).

Multi View Monitoring:

• Multi View Monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
• Multi View Video Standard: HD

Media Player:

• Media Players: 2
• Channels: Fill and key for each Media Player.
• Media Pool Still Image Capacity: 20 with fill and key.
• Media Pool Still Image Format: 200 frames in 1080 HD.

Control:

• Control Panel: Built in control panel.
  Software control panel with camera control included. Supports optional hardware panel.
• Control Panel Connection: Ethernet supports 10/100/1000/10G BaseT.
  Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
• Control Panel Compatibility: Includes ATEM Software Control Panel.
  Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel.
  Can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
• Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Sonoma, Mac 10.15 Sequoia or later later and Windows 11, Windows 10 64 bit only.

Processing:

• Audio Mixer: 58 Channel mixer.
  Selectable On/Off/Audio-Follow-Video.
  Level and Peak metering.
  Master gain control.
  6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
• Camera Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.

Software:

• Control Panel Included: ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.
• Software Updates: Using USB or Ethernet connection directly connected to macOS or Windows computers.
  Includes ATEM Setup Utility.
• Configuration: Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
• Operating Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11, Windows 11 for ARM

Power Requirements:

• Power Supply: 1 x External 12V power supply.
• Power Usage: 120 W max.

Environmental Specifications:

• Operating Temperature: 5° C to 40° C (41° – 104° F)
• Storage Temperature: -10° to 60° C (14° to 140° F)
• Relative Humidity: 0% to 90% non-condensing
• Warranty: 1 Year Limited Manufacturer’s Warranty.

• ATEM Mini Extreme ISO G2
• External 12V DC power supply
