Canon EOS C700 GS PL 4K Super 35mm equivalent CMOS Sensor Camera
Description
Click to rate this post!
[Total: 0 Average: 0]
Canon EOS C700 GS PL HDR support for a whole different level of content creation
The flagship model of the Cinema EOS System lineup, the EOS C700 GS PL features a PL mount that enables users to utilize a vast number of PL lenses available in the market. High quality footage can be taken with the Super 35mm equivalent CMOS sensor at 4K 50p / 60p. With the Triple DIGIC DV 5 image processing platform, footage with a wide dynamic range of up to 14 stops can be recorded.
Slow & Fast Motion recording is supported from 1 fps onwards, which when equipped with the CDX-36150 recorder developed by Codex, RAW format recording at 4K 100p / 120p is possible. The camera also supports recording in Apple ProRes format
Equipped with Canon Log Gammas and ST 2084 to Support next Generation HDR Content Creation
Support for new generation HDR content creation is evident with the features of the EOS C700. Besides the original Canon Log format, the camera is also equipped with Canon Log 2 and Canon Log 3 which when employed in grading fully utilizes the wide dynamic range of up to 14 stops.
The Society of Motion Picture & Television Engineers (SMPTE) ST 2084 standards for monitoring are also supported, and HDR images may be confirmed on compatible display screens such as the DP-V2420 as well as Electronic Viewfinder EVF-V70, sold separately.
Equipped with Global Shutter
EOS C700 GS PL features a global shutter, which captures an image by activating all of the pixels simultaneously to register light information that falls on the CMOS sensor to produce distortion-free images. This, together with the ability to record Slow & Fast Motion at in cropped mode up to 200p / 240p in Full HD, enabling creative expression in the form of beautiful crisp motion inherent in traditional film medium.
Also read here the Sony 4K handheld cameras
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Image Sensor | ||
| Sensor | Super 35mm type CMOS | |
| System | RGB primary colour filter (Beyer array) | |
| Total Pixels per sensor | Approx. 11.54 megapixels (4622 x 2496) | |
| Effective Pixels per sensor | 4096 x 2160 / 2048 x 1080: | Approx. 8.85MP |
| 3840 x 2160 / 1920 x 1080: | Approx 8.29MP | |
| Dynamic Range | Canon Log 2 / Canon Log 3: 1600% (ISO 800 or higher) With Canon Log / Wide DR: 800% (ISO 400 or higher) |
|
| Image Processor | ||
| Type | Triple DIGIC DV 5 | |
| Lens | ||
| Lens Mount | Canon EF Mount with Cinema Lock / PL Mount (Cooke / i Technology compatible) depending on version B4 mount lens via adapter accessory (EF or PL) |
|
| Lens Magnification factor (for EF Mount lenses, including Cinema Primes) |
4096 x 2160 or 2048 x 1080: | Focal length x approx. 1.460 |
| 3840 x 2160 or 1920 x 1080: | Focal length x approx. 1.534 | |
| B4 adapter attached: | Focal length x approx 1.3 (1.2947) (Full HD / 1920 x 1080) | |
| PL Mount version: | No magnification factor for Canon Cinema Zooms | |
| Peripheral Illumination Correction | Yes (dependent on lens used) | |
| ND Filter | Up to 10 stops via built in ND filter system | |
| Focus Control | EF Mount: | Via lens, wireless control or wired remote (dependent on lens used) |
| PL Mount: | Only Cine Servo lenses | |
| Iris Control | Via body, grip, wireless control or wired remote. 1/2-stop, 1/3-stop or FINE control. Possible to maintain constant F-number during zoom. |
|
| Cooke / I Technology Support | YES (PL Mount only) | |
| Anamorphic Lens Support | YES | |
| Image Stabilization System | Depends on lens used | |
| EVF | ||
| Built- In EVF | NO | |
| Optional EVF Accessory | YES. OLED Electronic ViewFinder, EVF-V70 | |
| Display Panel | ||
| Control Display | 3.0″ (7.66cm on the diagonal) colour liquid crystal, approx. 1.036 million dots | |

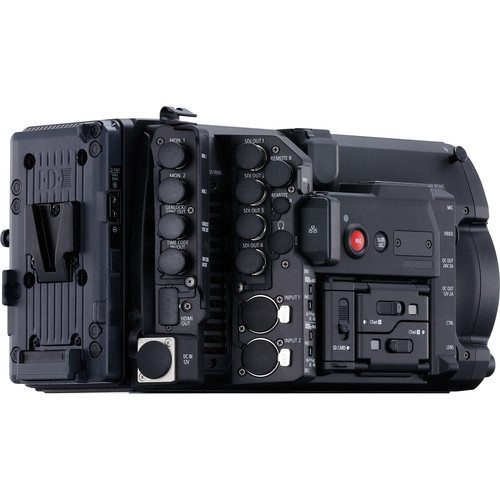

| Inputs / Outputs | ||
| Audio In | XLR 3-pin connector x2, 3.5mm stereo mini jack (input only) | |
| Headphone Output | 3.5 mm stereo mini jack (output only) | |
| Video Monitor Output | MON.1 / MON.2: BNC jack, output only | |
| HDMI | HDMI connector (type A) (output only) | |
| USB | NO | |
| SDI Output | BNC jack (4 lines, output only) | |
| Time Code | BNC jack (input / output) | |
| Genlock | BNC jack (input only / also serves as SYNC OUT connector) | |
| Synch | BNC jack (output only / also serves as GENLOCK connector) | |
| Component Out | NO | |
| AV Terminal | NO | |
| DC Output | DC 24V 2A jack Fisher 3-pin jack (output only), DC 12V 2A jack LEMO 2-pin jack (output only) | |
| DC Input | XLR 4-pin jack | |
| Remote Control Terminal | REMOTE A connector 2.5mm stereo mini-mini jack (input only) REMOTE B connector Round 8-pin jack (for RS-422) |
|
| Wireless Control Terminal | YES, for WFT-E6B.WFT-E8 | |
| Lens Terminal | 12-pin jack | |
| Ethernet Terminal | Ethernet connector (RJ45) (supports 1000 BASE-T) | |
| CTRL Terminal | Canon’s proprietary specifications, LEMO 7-pin jack | |
| Video connector (For EVF) | Canon’s proprietary specifications (special 13-pin jack, output only) | |
| Misc | ||
| Tally Lamp | YES | |
| Custom Dial | YES | |
| Wi-Fi & GPS Specifications | ||
| GPS Information (Optional Accessory) | Latitude / Longitude / Elevation, Coordinated Universal Time (UTC) | |
| White Balance | ||
| Auto | YES | |
| Preset | Daylight (5400K), Tungsten (3200K), Kelvin (2000K – 15000K, 100K intervals), Set A, Set B | |
| White Balance Shift | YES. -9 to +9 (Daylight and Tungsten only) | |
| Black Balance | ||
| Black Balance Adjustment | YES | |
| Time Code | ||
| Countup System | Regen, RecRun, FreeRun, External, Hold (Drop frame available for some frame rates) | |
| Start Value Setting | “00:00:00:00”, Set / Reset selectable | |
| Audio | ||
| Recording | Internal & Capture Drive recording: linear PCM 48KHz, 24-bit, 4-ch RAW (SDI OUT): linear PCM 48 KHz, 16-bit, 2-ch Digital input available following two-channel (XLR), analog input, AES3 standards (48kHz / 24-bit / 2-ch) |
|
| Miscellaneous | ||
| Operating Temperature Range | Approx. 0°C to 40°C, 85% (relative humidity) Approx. -5°C to 45°C, 60% (relative humidity) |
|
