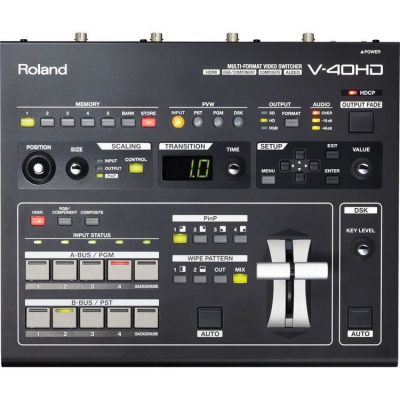

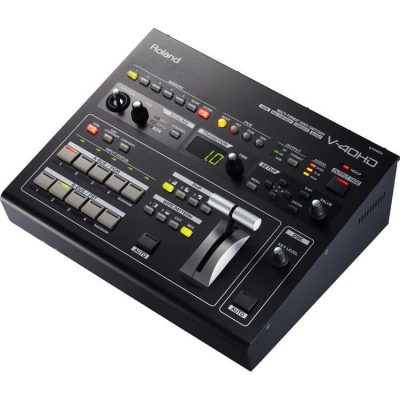

Roland V-40HD Multi-Format Video Switcher

Specially designed for live events, the V-40 HD borrows from the V-1600HD and V-800HD and delivers superior scaling and broadcast quality. The V-40HD is driven by a 4:4:4/10-bit internal processor, 4:2:2/8-bit output processor and features a 1 M/E(PinP)+DSK configuration. It has four channels connected to 12 inputs; 4 composite, 4 RGB/Component and 4 HDMI inputs. The video switcher also has individual scalers on each of the five outputs and handles audio well with audio embedding and audio delay features.

Other features include output preview with four-way split screen, full HDCP support, 1920×1200 and 1080p resolution capability and a user-friendly interface fully loaded with video effects. RS-232 support allows remote control and you can save the video to a flash drive from the USB port on board. It is also noiseless since it radiates heat negating the need for a noisy cooling fan.

Controllable the V-40HD via any MIDI device

A Roland digital audio mixer like the M-200i V-Mixer can link to the V-40HD for audio-follows-video application. Connect another V-40HD for more inputs.

Use RS-232C for integrated remote control

It’s possible to connect a computer, wall panel or other remote device and use it to control switching, effects, and other operations.

USB PORT For saving the internal memory

This lets you connect a USB flash drive and save the internal memory to it.

MEMORY Save panel settings

You can save the V-40HD’s settings in internal memory. Each of the five memory banks can hold five sets of settings, letting you save a total of 25 configurations.

Output Connectors

Connect monitors, projectors, or recording equipment. [HDMI] Up to WUXGA, 1080p [RGB/Component] Up to WUXGA, 1080p [Composite] 480i or 576i *In HDCP mode, no video signals are output from the RGB/Component and composite connectors.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Specifications

Click to rate this post!

[Total: 0 Average: 0]

Video Processing
Sampling rate	4:4:4 (Y/Pb/Pr), 10 bits *Output signal processing is 4:2:2/8-bit.
Audio processing	24 bits/48 kHz, 2ch
Input Formats
HDMI video	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz * The video signal frame rate must match with the unit?s frame rate setting. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz: Reduced blanking
HDMI audio	Linear PCM, 24 bits/48 kHz, 2ch
RGB/ Component	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
	640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz * The video signal frame rate must match with the unit?s frame rate setting. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz : Reduced blanking
Composite	NTSC, PAL
Outut formats
HDMI video	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
	640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz * The output refresh rates of 640 x 480–1400 x 1050 are 75 Hz when the unit?s frame rate setting is 50 Hz. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz: Reduced blanking
HDMI audio	Linear PCM, 24 bits/48 kHz, 2ch
RGB/ Component	480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p
	640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz * The output refresh rates of 640 x 480–1400 x 1050 are 75 Hz when the unit?s frame rate setting is 50 Hz. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz: Reduced blanking
Composite	NTSC, PAL
Preview (HDMI)	Video: 1920 x 1080/60 Hz (fixed)

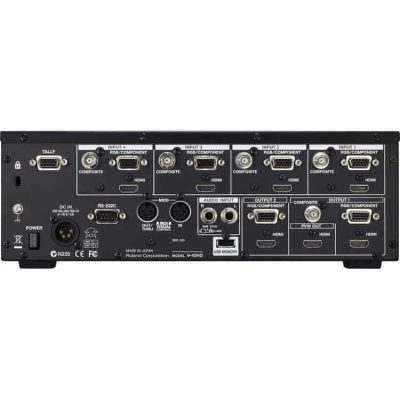

Input Jacks
Video/Audio	HDMI: Type A (19 pins) x 4 ( INPUT 1–4)
	RGB/Component: HD DB-15 type x 4 ( INPUT 1–4) Composite: BNC type x 4 (INPUT 1–4)
Audio	1/4-inch TRS phone type ( balanced/unbalanced) x 1 pair ( AUDIO INPUT)
Output Jacks
Video/Audio	HDMI: Type A (19 pins) x 2 (OUTPUT 1/2)
	RGB/Component: HD DB-15 type x 2 (OUTPUT 1/2) Composite: BNC type x 1 (OUTPUT 1)
Preview	HDMI: Type A (19 pins) x 1
Other Jacks
Tally	HD DB-15 type x 1
MIDI	5 pins DIN type x 2 ( IN, OUT/THRU)
RS-232C	9 pins D-sub type x 1
USB	A type x 1 ( host, for USB memories )
Signl level / Impedance
RGB/ Component	Signal level: 0.7Vp-p( H,V:5VTTL) Impedance: 75 ohms
Composite	Signal level: 1.0 Vp-p ( luminance), 0.286 Vp-p (chroma(NTSC) ), 0.3 Vp-p (chroma(PAL)) Impedance: 75 ohms
Analog audio	Nominal input level: 4 dBu Maximum Input Level: 22 dBu Impedance: 15 k ohms
Video Effects
Transition	Mix, Cut, Wipe ( 9 patterns )
Composition	Picture in Picture
Others	Output ade
Audio Effects
Delay	0.0-12.0 frames
Others
Display	7 segments, 3 characters LED
Power Supply	DC 12 V (AC Adaptor)
Current Draw	2.6A

In The Box

Click to rate this post!

[Total: 0 Average: 0]

AC Adaptor (4 pins XLR type connector)
Power Cord
RCA-BNC conversion plug x 4
Owner’s manual
